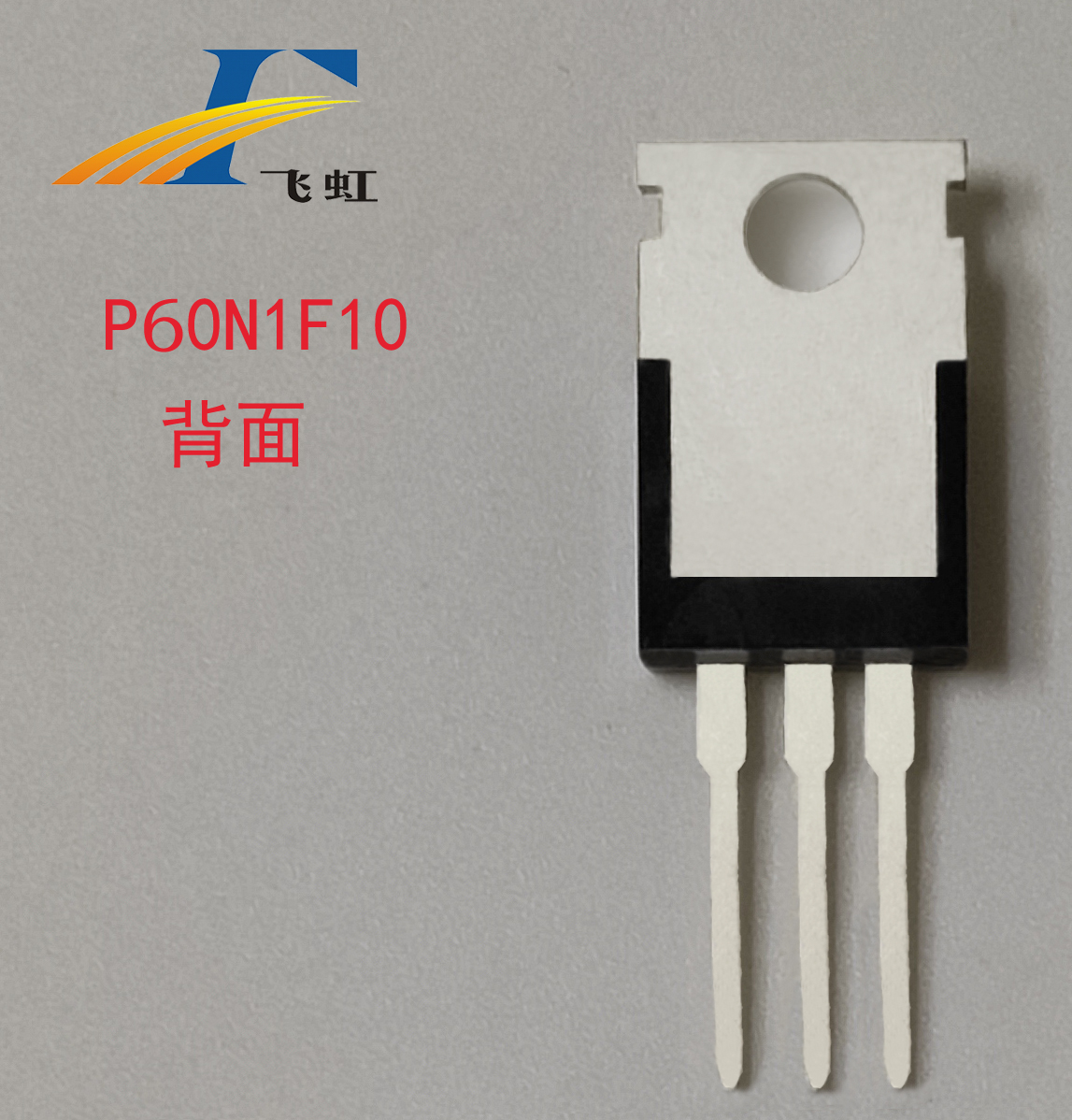

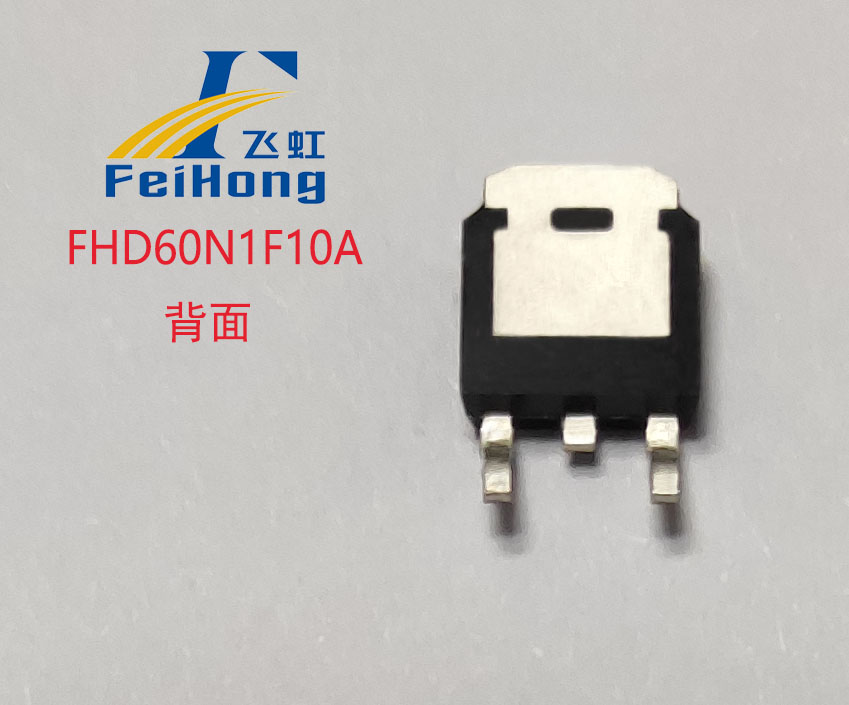

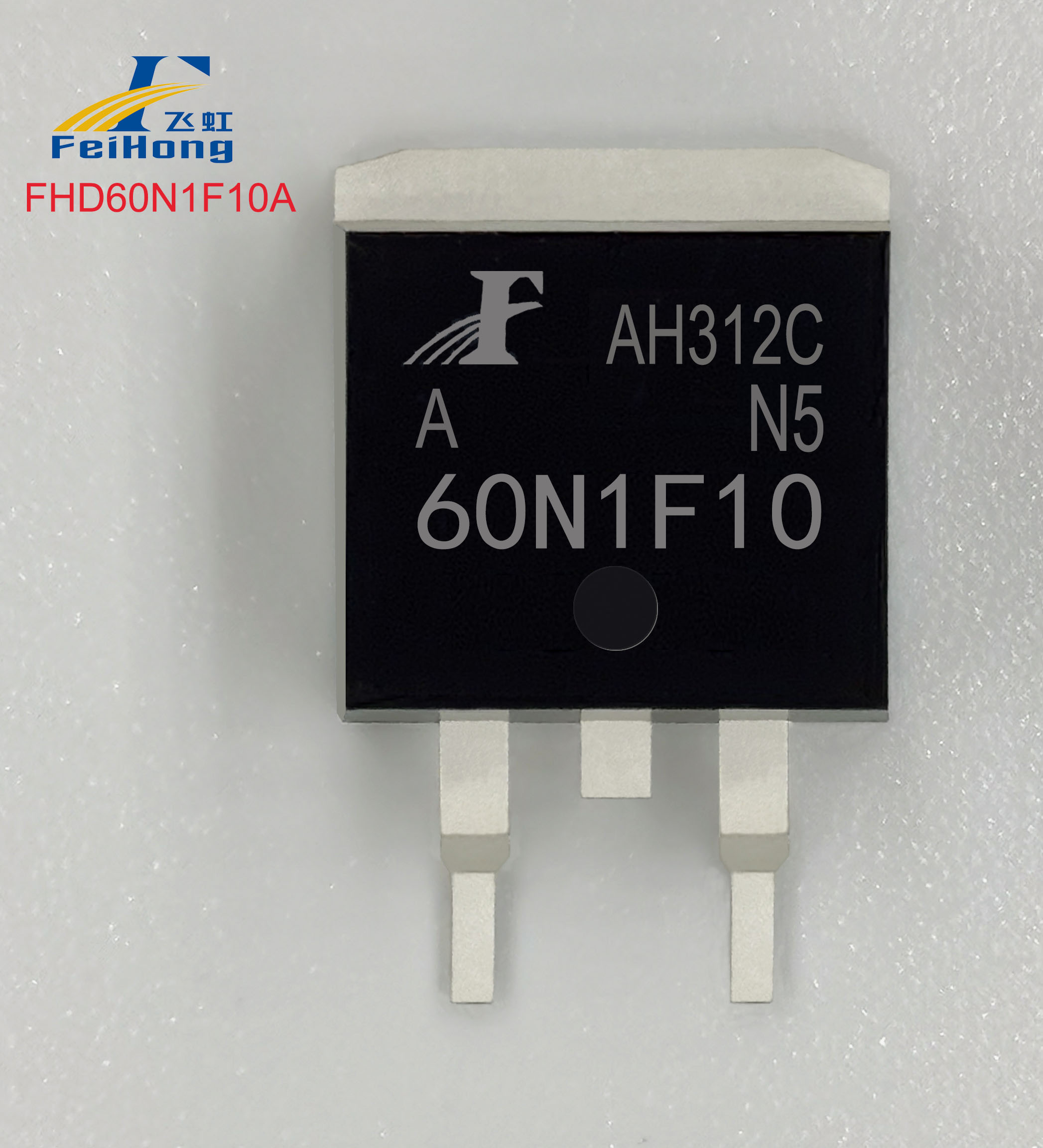

FHP60N1F10A/FHD60N1F10A

Release time：2021-09-30 16:54:51

Industry generic name：STP80N10F, SVG10120NAT, IPP126N10N3GWait

View Specifications >

  • Feihong 60N1F10A adopts SGT process to obtain extremely low RDSON conduction internal resistance. Feihong products have wide BV voltage, fast switching capability and excellent short circuit resistance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switching power supplies, UPS, energy storage power supplies, garden tools and BLDC motor drives, etc. Alternative field effect tube: STP80N10F, SVG10120NAT, IPP126N10N3G

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP60N1F10A/FHD60N1F10A
N
TO-220 TO-252
20
2～4
60
100
10.2
12

Product Details

【Feihong 60N1F10A Product Description】

Feihong 60N1F10A, SGT MOSFET, adopts SGT process to achieve extremely low RDSON on-state resistance. Feihong products have a wide BV voltage range, fast switching capability, and excellent short-circuit resistance performance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switch-mode power supplies, UPS, energy storage power supplies, garden tools, BLDC motor drivers, etc.; other MOSFET brands' alternative models for this product include STP80N10F, SVG10120NAT, IPP126N10N3G.


【Feihong 60N1F10A Product Features】

Feihong 60N1F10A, 100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), and extremely low input capacitance.



【Feihong 60N1F10AApplication Examples】

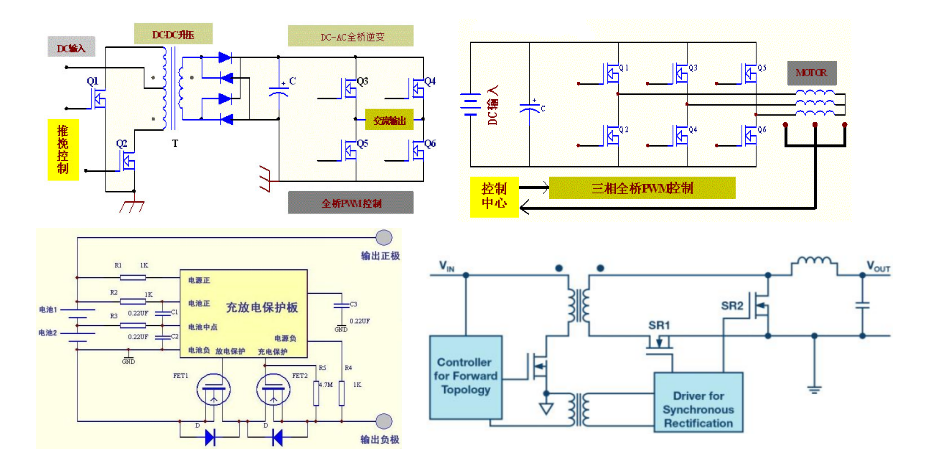

(1) The DC-DC boost structure of energy storage power supplies/solar controllers/inverters/UPSs, etc., uses push-pull structures or half-bridge/full-bridge structures.

(2) Motor drives include garden tools, electric tools, electric vehicle controllers, industrial automation equipment.

(3) Lithium battery protection boards: based on the wide BV characteristics of SGT, our company's typical BVDSS value of 85V SGT tubes is 96V, which can be used in lithium battery protection boards with 13-17 series strings to perform charging and discharging protection functions.

(4) SGT products can be used as SR synchronous rectifier tubes in DC-DC communication power supplies or AC-DC high-power power supplies, with lower voltage drop and higher conversion efficiency, meeting energy-saving requirements.
