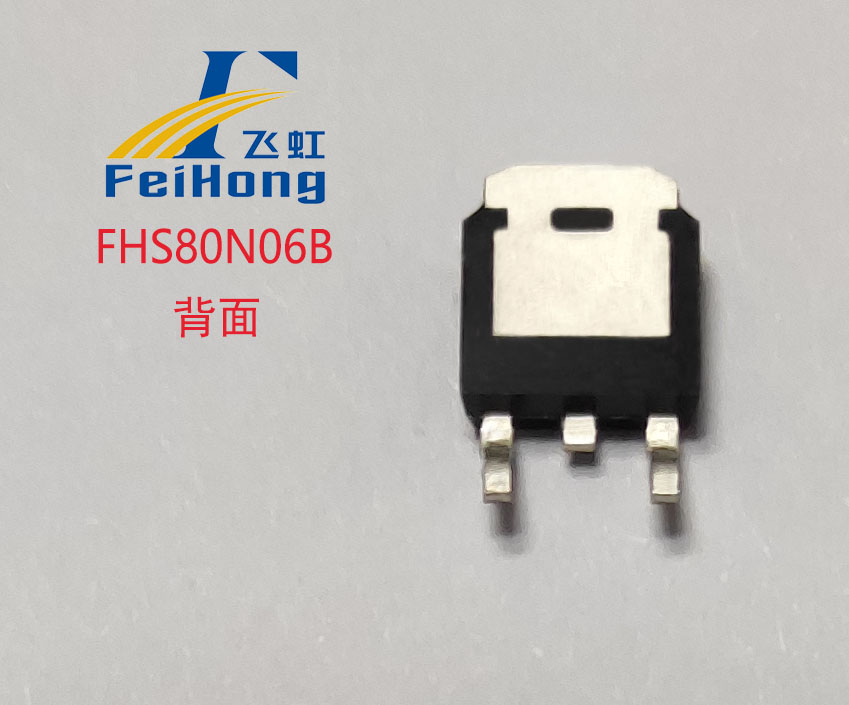

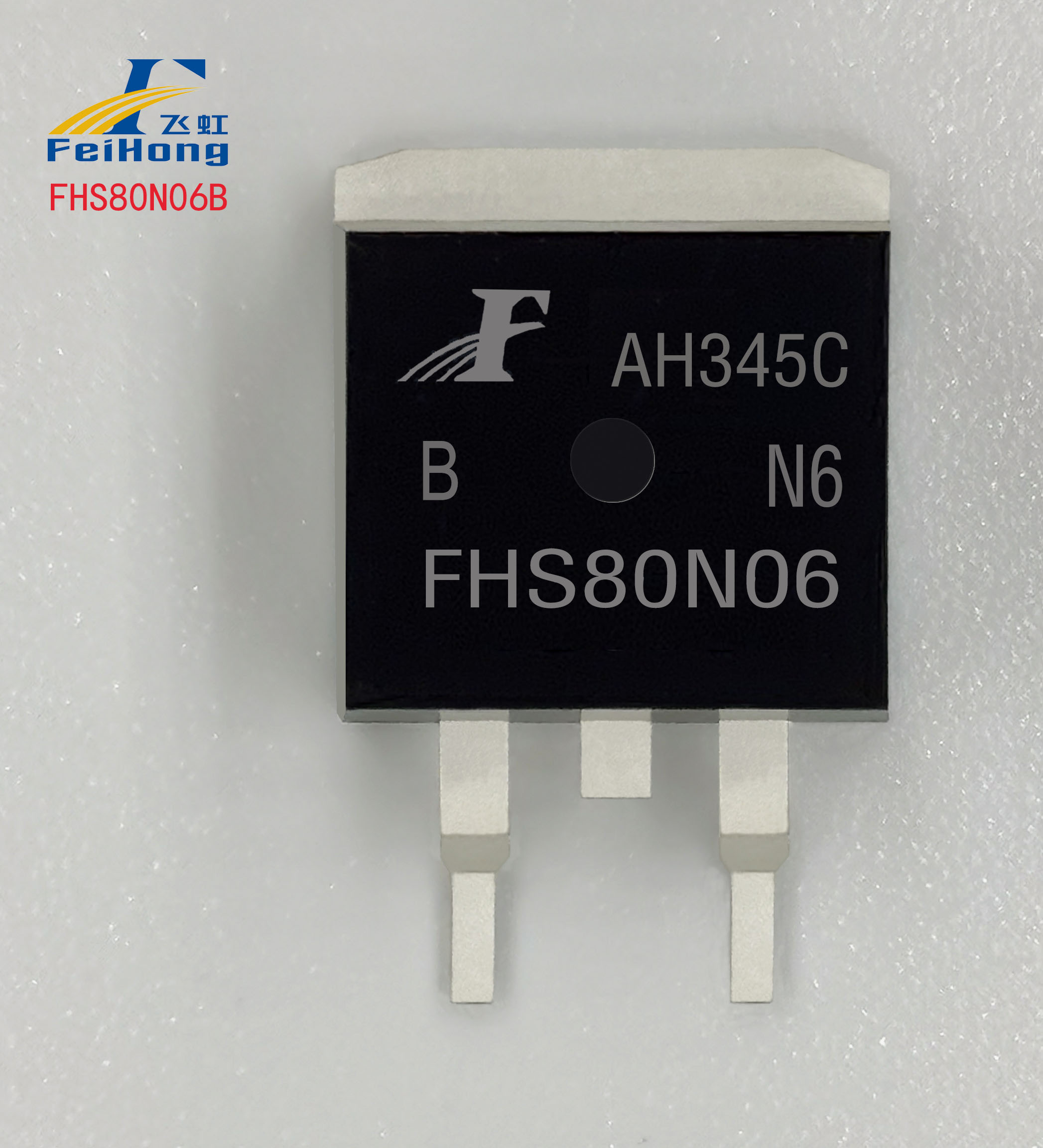

FHP80N06B/FHS80N06B/FHD80N06B

Release time：2021-12-24 15:39:44

Industry generic name：HRT60N08x, SW085R06E7T, PTP08N06NWait

View Specifications >

  • Feihong 80N06B, using groove technology, has the characteristics of small RDS(ON), good EAS performance, fast switching speed, etc. TO-220 packaged products can be applied to UPS, 24-36V electric scooter/balance car, 300W/12V input inverter (2 push-free front-stage boost circuits);TO-263/252 packaged products are widely used in BMS protection boards and load switches. Other MOS tube brand alternative models: HRT60N08x, SW085R06E7T, PTP08N06N.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP80N06B/FHS80N06B/FHD80N06B
N
TO-220 TO-263 TO-252
2 - 4
80
60
6.2
7.5

Product Details

【Flying Rainbow 80N06B Product Description】

Flying Rainbow 80N06B adopts trench process, featuring low RDS(ON), good EAS performance, and fast switching speed; TO-220 packaged products can be applied in UPS, 24-36V electric scooters/segways, 300W/12V input inverters (two for front-end boost circuit); TO-263/252 packaged products are widely used in BMS protection boards and load switches.Alternative MOSFET models from other brands: HRT60N08x, SW085R06E7T, PTP08N06N. Other alternative MOSFET models from other brands: HRT60N08x, SW085R06E7T, PTP08N06N.

【Characteristics of Flying Rainbow 80N06B】

Flying Rainbow 80N06B, 100% EAStest, 100% Rgtest, 100% DVDSthermal resistance test, high consistency, high reliability, fast switching speed, low on-state resistanceRDS(on), lowCrss.


【Application Examples of Flying Rainbow 80N06B】

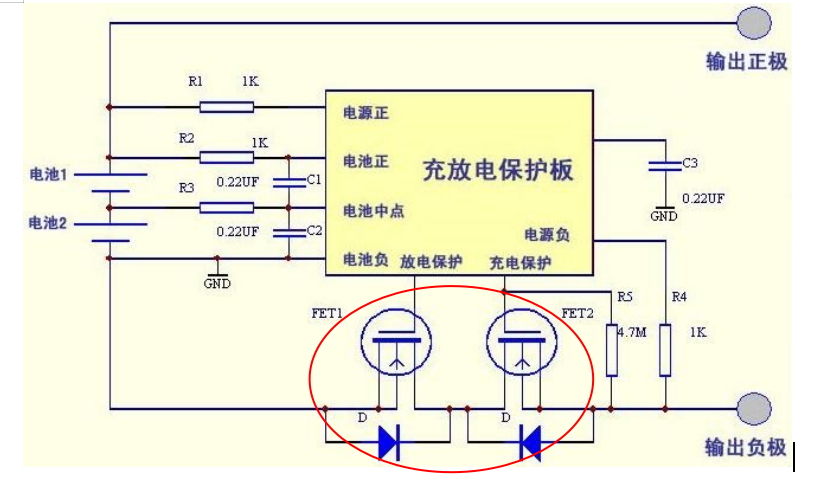

FHD/S80N06B（7-10 series BMS protection board）


FHD/S80N06B（7-10 series BMS protection board）

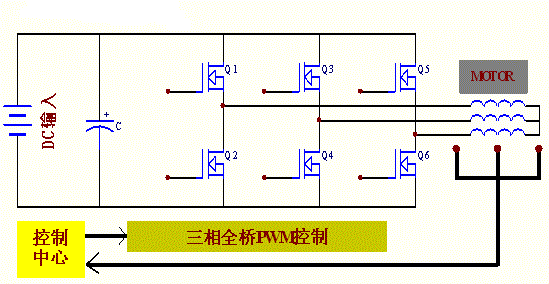

FHP80N06 DC motor drive(scooter/balance car)


FHP80N06 DC motor drive(scooter/balance car)


FHP80N06 replacesFHP80N07 used in the front-end of 12V input inverter


FHP80N06 replaces FHP80N07 used in the front-end of 12V input inverter
