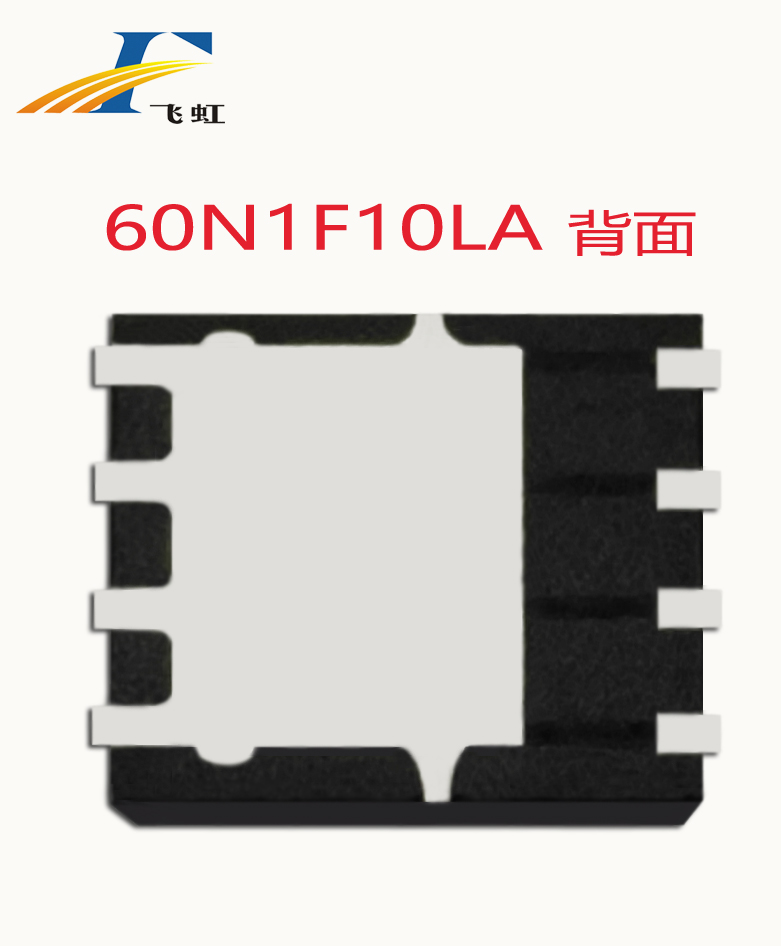

FHN60N1F10LA

Release time：2021-12-24 15:39:44

Industry generic name：AON6224, VSP014N10MS, ZMS100N10NWait

View Specifications >

  • Feihong 60N1F10LA,SGT MOSFET DFN5 × 6-8L, uses SGT process to obtain extremely low RDSON conduction resistance and excellent quality factor FOM(RDSON * Qg), which can realize fast hard switching and effectively improve conversion efficiency. PDFN5 × 6-8L packaged products are widely used in AC/DC and USB PD fast charging adapter power supplies and secondary side synchronous rectification of DC/DC converters, BLDC motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHN60N1F10LA
N
PDFN5×6
20
1.2~2.4
60
100
10
12
12.5
15.5

Product Details

【Flying虹 60N1F10LA Product Description】

Flying虹 60N1F10LA, SGT MOSFET DFN5×6-8L, adopts SGT technology to achieve extremely low RDSON on-state resistance and excellent quality factor FOM (RDSON*Qg), enabling fast hard switching and effectively improving conversion efficiency. PDFN5×6-8L packaged products are widely used in AC/DC and USB PD fast charging adapters, DC/DC converters' secondary side synchronous rectification, and BLDC motor drives.Other MOSFET brand alternative models: AON6224, VSP014N10MS, ZMS100N10N.


【Features of Flying虹 60N1F10LA】

Flying虹 60N1F10LA，100% EAS test, 100% Rg test, 100% DVDS thermal resistance test, high consistency, high reliability, fast switching speed, extremely low on-state resistance RDS(on), excellent quality factor FOM (RDS(on)*Qg), low loss.


【Applications of Flying虹 60N1F10LA】


USB PD Charger (taking the mainstream QR power supply structure in the market as an example)

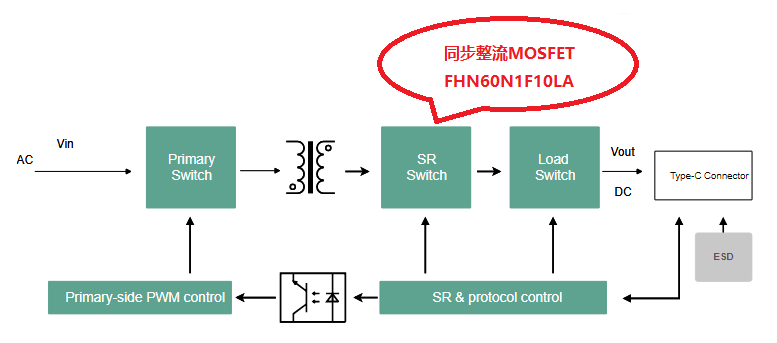

FHN60N1F10LA Application Example


Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GCS160N06 | HY3906P | IRFB7537PBF
