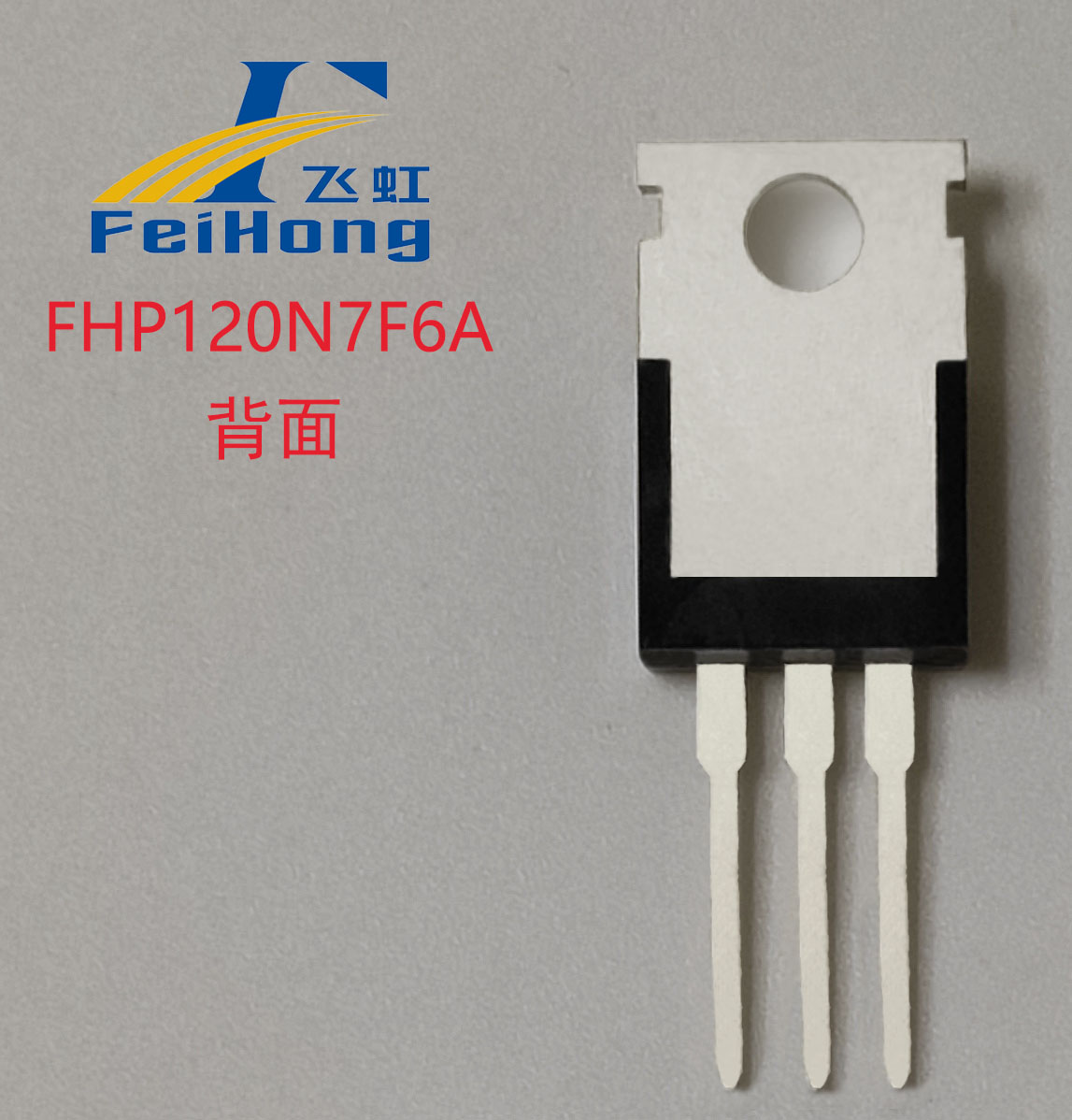

FHP120N7F6A/FHD120N7F6A/FHS120N7F6A

Release time：2021-12-24 15:39:44

Industry generic name：HYG065N07NS1P, HY1906, FHP100N07CWait

View Specifications >

  • Feihong FHP120N7F6A/FHS120N7F6A/FHD120N7F6A adopts SGT process to obtain excellent RDSON conduction internal resistance and excellent quality factor FOM(RDSON * Qg), which can realize fast hard switching and effectively improve conversion efficiency, and has excellent short-circuit pulse current resistance. TO-220(FHP120N7F6A) products can be applied to 12V vehicle inverters, various high-frequency switching power supplies, DC/DC converters, UPS, outdoor energy storage power supplies, BLDC motor drive (48V electric vehicle controller), etc., can replace HY1906;TO-263(FHS120N7F6A) and TO-252(FHD120N7F6A) products can be applied to load switches and BMS protection boards. Other MOS tube brand alternative models: HYG065N07NS1P, HY1906, FHP100N07C.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP120N7F6A/FHS120N7F6A/FHD120N7F6A
N
TO-220 TO-263 TO-252
20
2～4
120
70
5.4
6.5

Product Details

【FHP120N7F6A Product Description】

The FHP120N7F6A/FHS120N7F6A/FHD120N7F6A adopts SGT technology to achieve excellent RDSON on-state resistance and excellent figure of merit FOM (RDSON*Qg), enabling fast hard switching and effectively improving conversion efficiency, while possessing excellent short-circuit pulse current resistance performance; the TO-220 (FHP120N7F6A) product can be applied to 12V vehicle inverters, various high-frequency switch power supplies, DC/DC converters, UPS, outdoor energy storage power supplies, BLDC motor drives (48V electric vehicle controllers), etc., and can replace HY1906; the TO-263 (FHS120N7F6A) and TO-252 (FHD120N7F6A) products can be used in load switches and BMS protection boards.Other MOSFET brand replacement models: HYG065N07NS1P, HY1906, FHP100N07C. Other MOSFET brand replacement models: HYG065N07NS1P, HY1906, FHP100N07C.


【FHP120N7F6AProduct Features】

120N7F6A, 100% EAS tested, 100% Rg tested, 100% DVDS thermal resistance tested, excellent figure of merit FOM (RDSON*Qg), high consistency, high reliability, high avalanche withstand capability, low Crss, low loss, cost-effective.




【FHP120N7F6AApplication Examples】

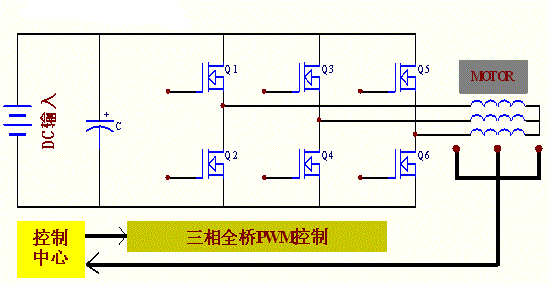

FHP120N7F6A DC motor driveQ1~Q6(48V electric bicycle)



FHP120N7F6A DC motor drive Q1~Q6 (48V electric bicycle)


FHP120N7F6A replacesHY1906 for use in12V input inverter front stageQ1~Q2


FHP120N7F6A replacing HY1906 used in 12V input inverter front stage Q1~Q2

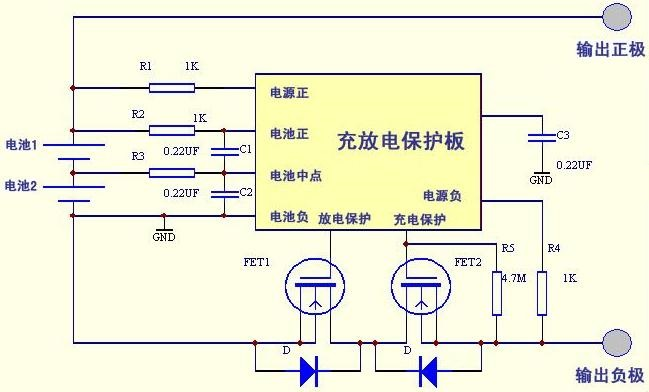

FHS/D120N7F6A（10 series BMS protection board）


FHS/D120N7F6A (10 series BMS protection board)
