FHP170N8F3A/FHS170N8F3A/FHA170N8F3A

Release time：2021-09-30 17:53:38

Industry generic name：STP170N8F7, IPP037N08N3GWait

View Specifications >

  • SGT process is adopted to obtain extremely low RDSON conduction internal resistance. Feihong products have wide BV voltage, fast switching capability and excellent short circuit resistance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switching power supplies, energy storage power supplies, garden tools and BLDC motor drives, etc. To -263 products are widely used in various types of lithium battery protection board. Alternative field effect tube: STP170N8F7, IPP037N08N3G

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)

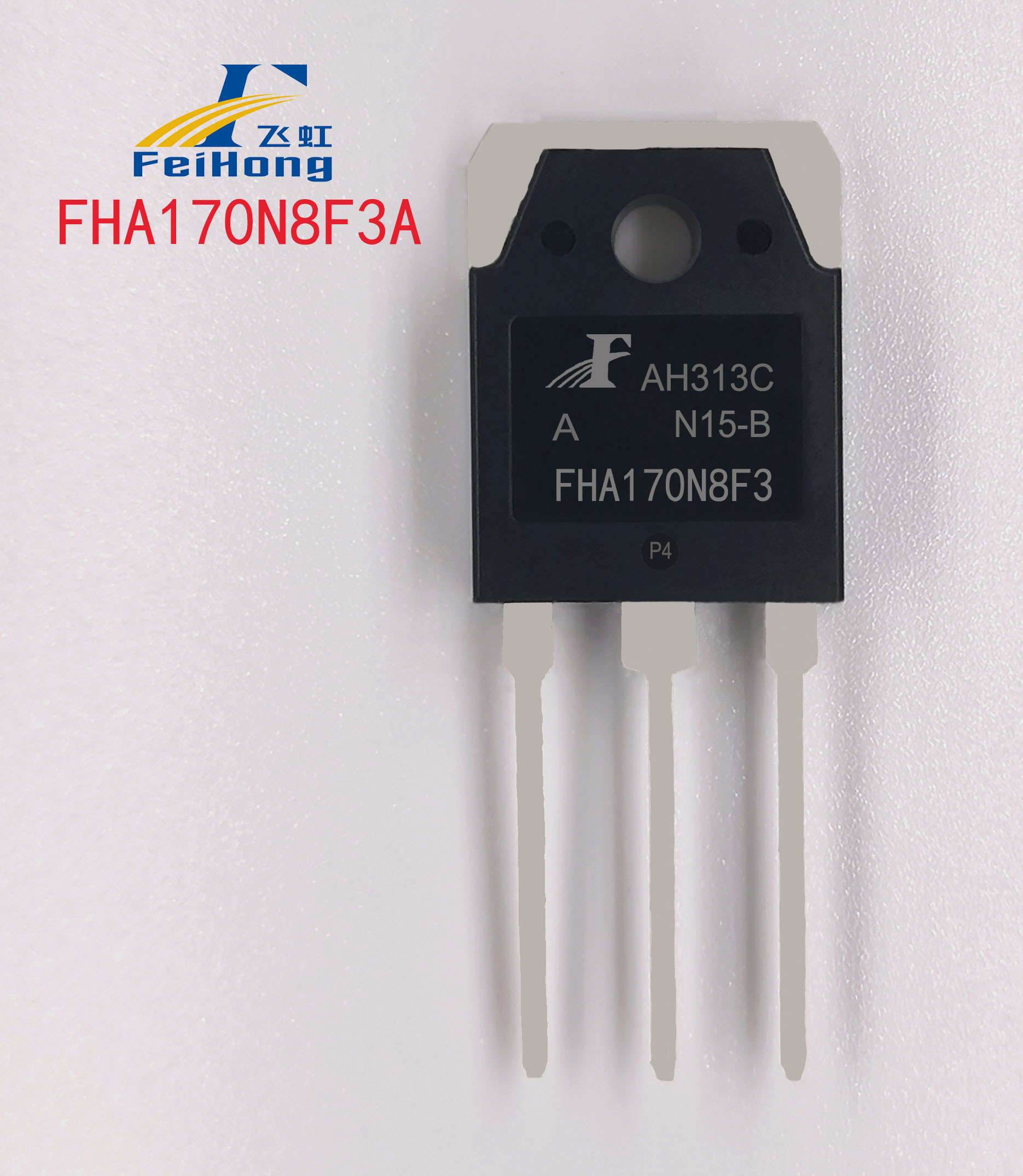

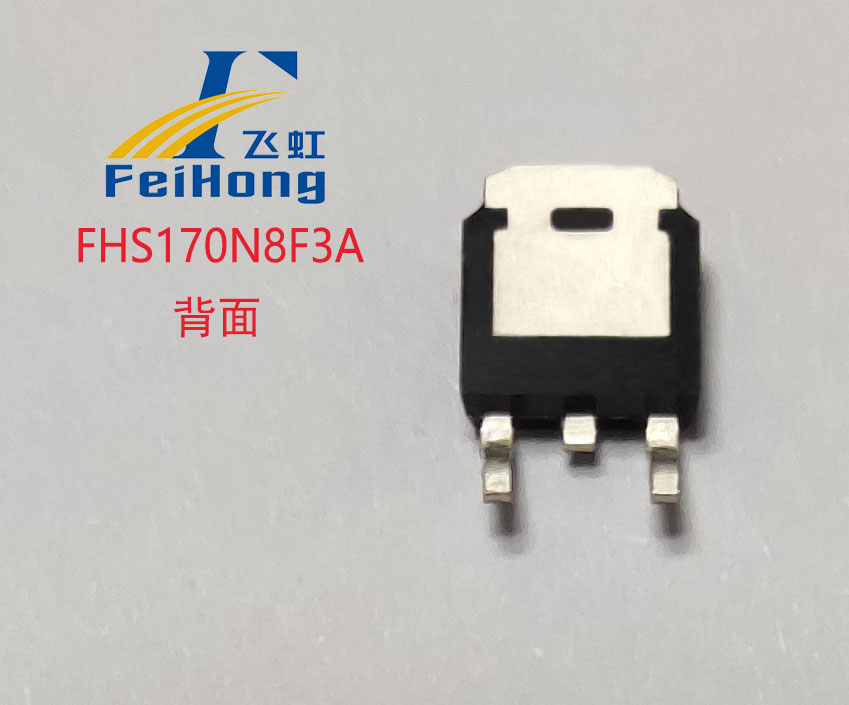

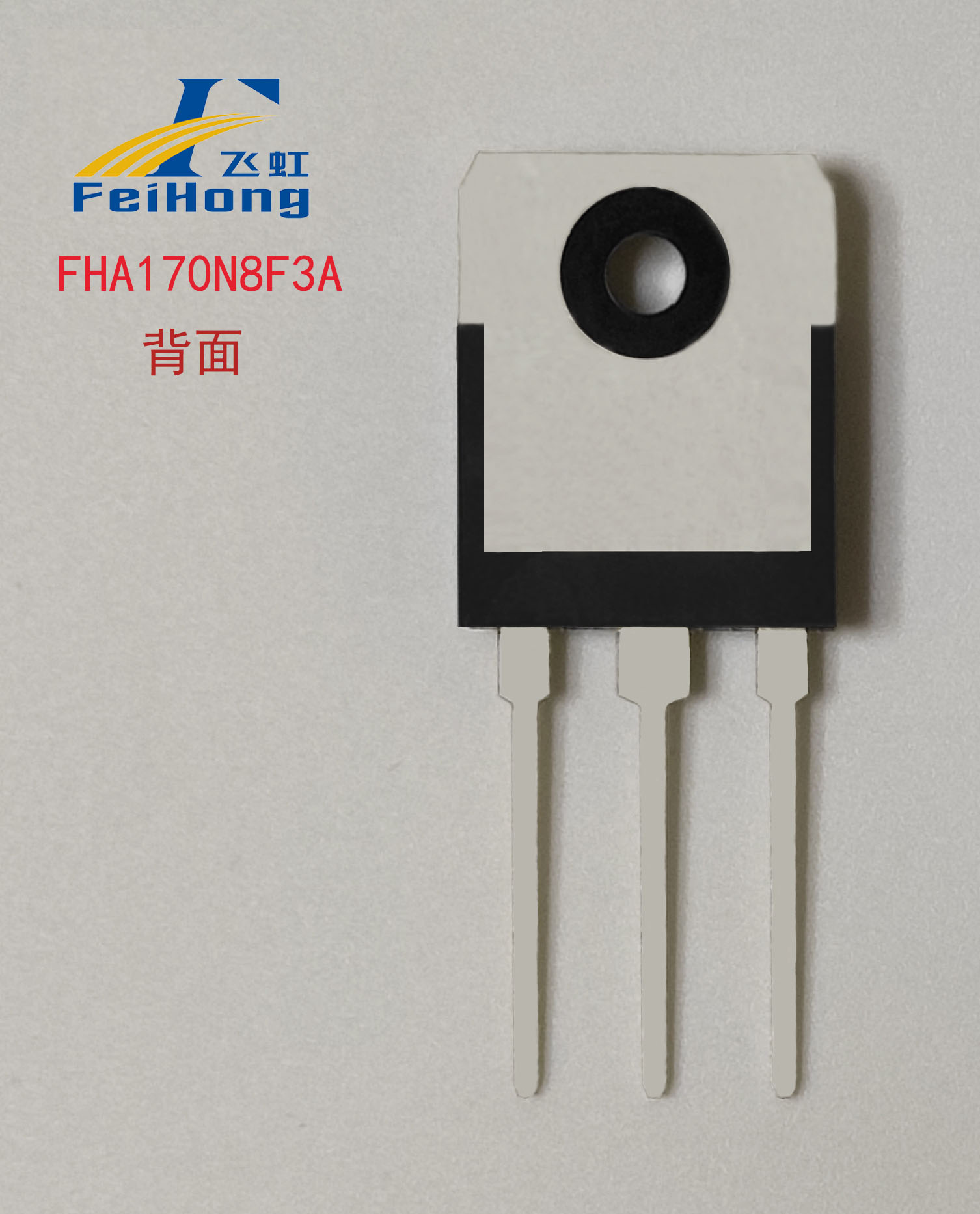

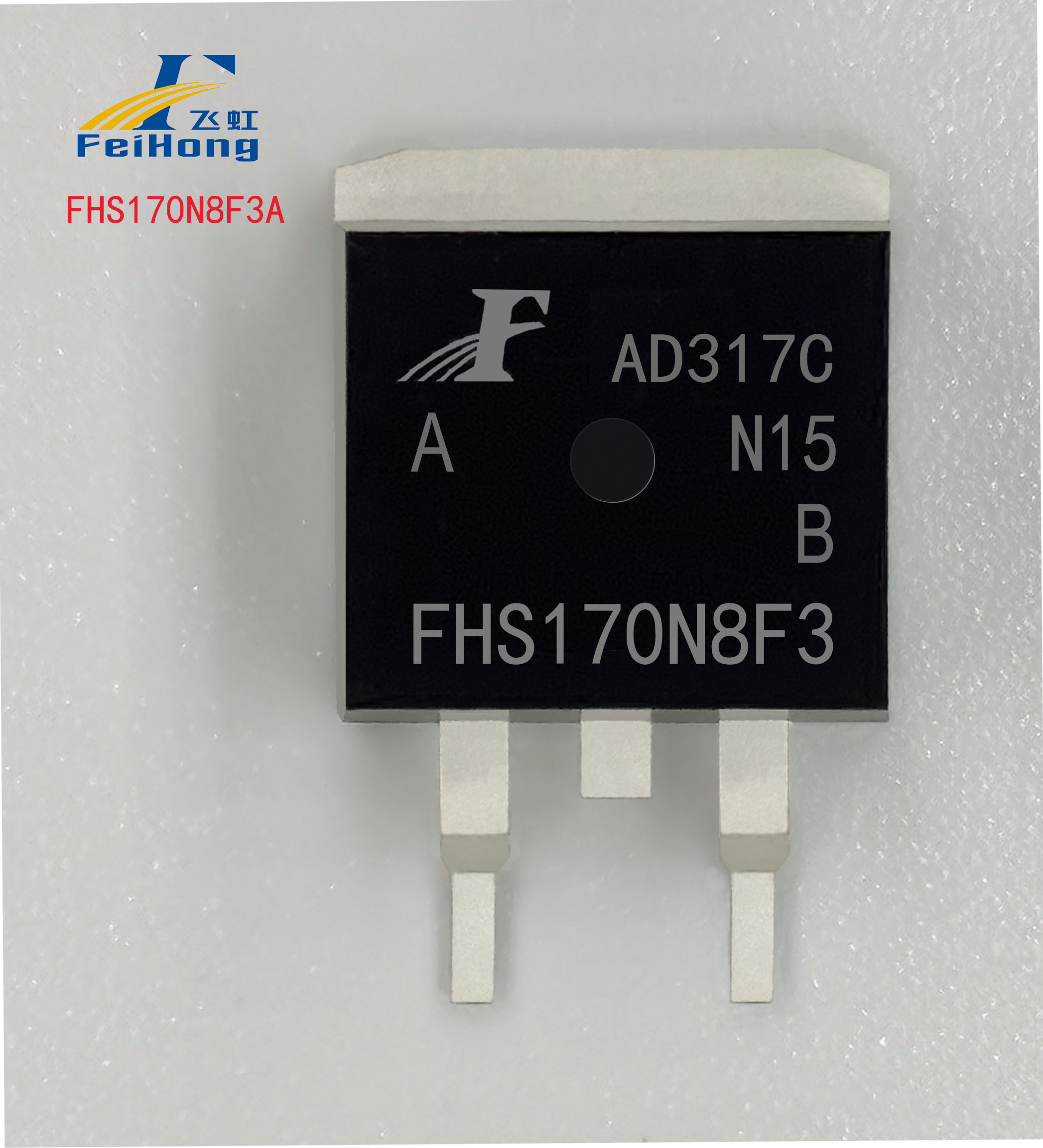

FHP170N8F3A/FHS170N8F3A/FHA170N8F3A
N
TO-220 TO-263 TO-3PN/TO-247
20
2～4
185
85
2.95
4

Product Details

【Feihong 170N8F3A Product Description】

Feihong 170N8F3A, SGT MOSFET, adopts SGT process to achieve extremely low RDSON on-state resistance. Feihong products have a wide BV voltage range, fast switching capability, and excellent short-circuit protection performance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switch-mode power supplies, energy storage power supplies, garden tools, and BLDC motor drives, etc. TO-263 products are extensively used in various lithium battery protection boards; other MOSFET brand alternative models: STP170N8F7, IPP037N08N3G.


【Feihong 170N8F3AProduct Features】

Feihong 170N8F3A, 100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), and extremely low input capacitance.

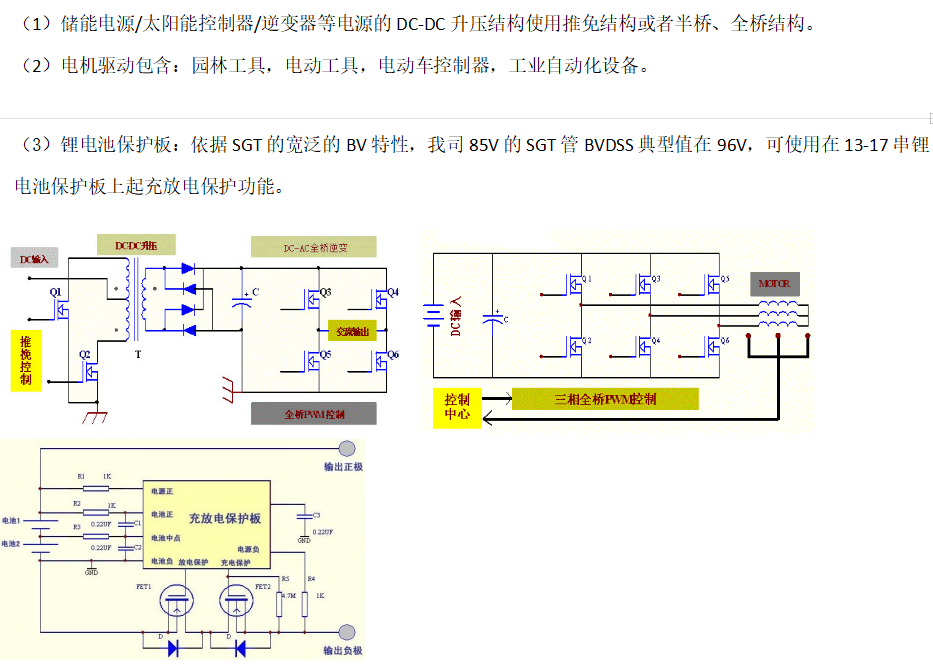

【Feihong 170N8F3AApplication Examples】




Hot Tags： Substitute IPP030N10N3GDomestic FHP230N06VFHP230N06V domestic MOS tubeCS160N06 | HY3906P | IRFB7537PBF
