FHP540C

Release time：2017-05-22 17:40:44

Industry generic name：IRF540, etc.Wait

View Specifications >

  • The FHP540C adopts the plane plane process to obtain the characteristics of strong anti-surge impact, which can be used in stepper motor drivers and adapted to various types of mechanical arms, machine tools, lifting tables and chairs and other terminal application scenarios. Replacement field effect tube: IRF540, etc.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP540C/FHD540C
N
TO-220 TO-252
30
2～4
33
100
37
44

Product Details

【Product Description of Feihong 540】

The FHP540C adopts the plane process to obtain the characteristics of strong surge impact resistance and can be used in stepper motor drivers, compatible with various terminal application scenarios such as robotic arms, machine tools, adjustable tables and chairs, etc.


【Product Features of Feihong 540】

100% EAS test, 100% DVDS test, high EAS avalanche energy, high reliability, strong impact resistance.





【Application Examples of Feihong 540】

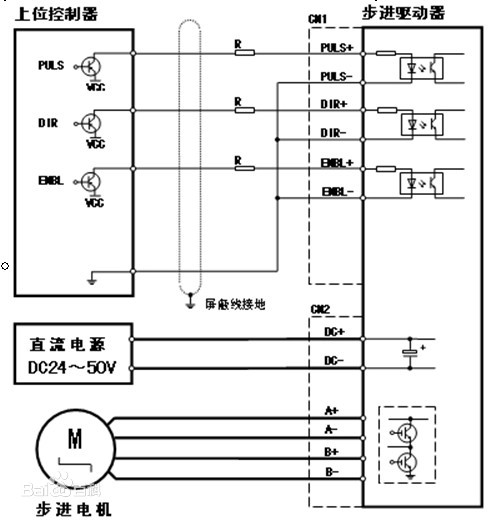

The FHP540C is used in the H-bridge topology of the stepper motor driver.
