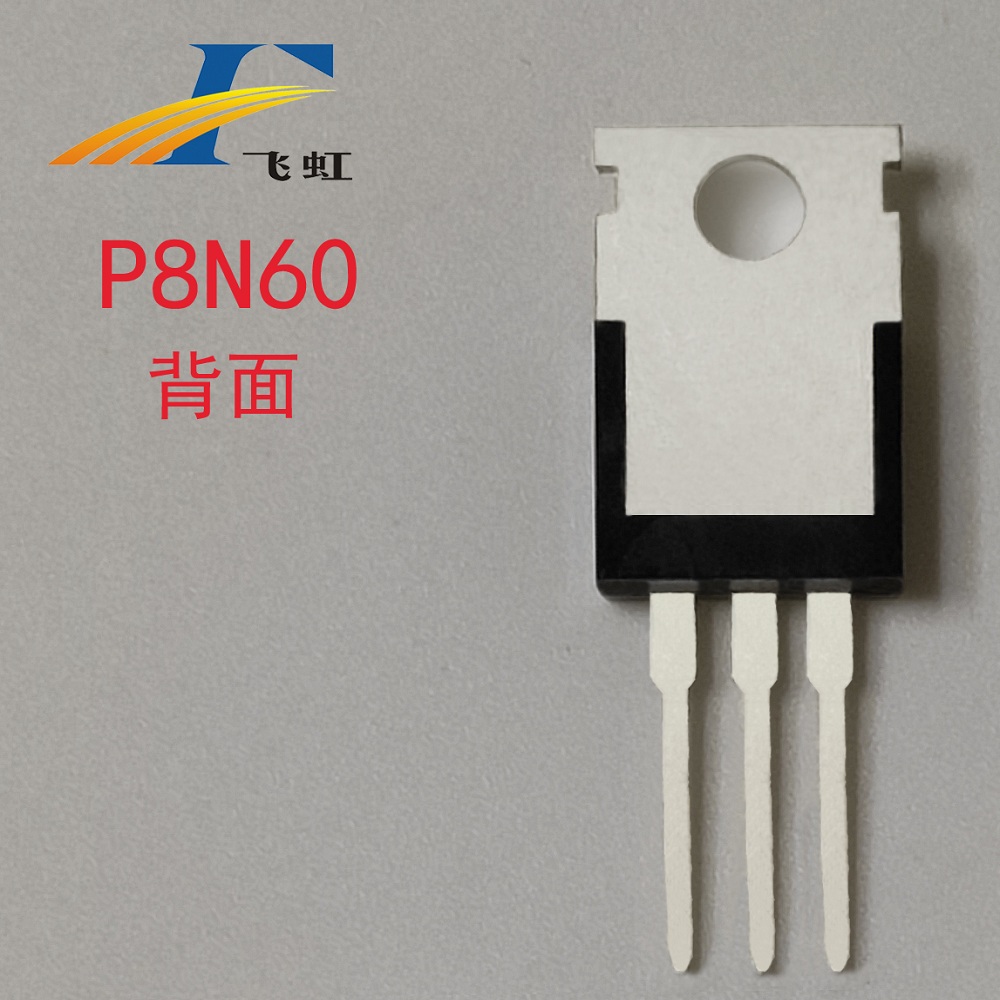

FHP8N60B/FHF8N60B

Release time：2017-05-23 10:14:20

Industry generic name：FQP8N60, TK10A60DA, FQPF8N60CWait

View Specifications >

  • FHF8N60J high voltage field effect tube (standard model: FQP8N60, TK10A60DA, FQPF8N60C), can be applied to 60W-75W AC-DC switching power supply.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP8N60B/FHF8N60B
N
TO-220 TO-220F
30
2～4
8
600
1
1.15

Product Details

【Product Introduction】

FHF8N60J high voltage MOSFET can be used for 60W-75W AC-DC switch power supplies. Compared with other MOSFET brands and models:FQP8N60, TK10A60DA, FQPF8N60C;


【Product Advantage】

FHF8N60J, good consistency, high reliability, high avalanche energy, low on-resistance.



【Application Examples】

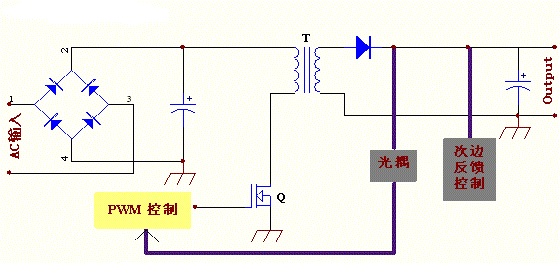

FHF8N60J application

Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GCS160N06 | HY3906P | IRFB7537PBF

prev：

FHP10N60D/FHF10N60D

next：

FHU5N60/FHD5N60

back

FHP8N60B/FHF8N60BProduct Application Articles

Why choose Feihong

omni-directionalmarketing service system，15+YearFAEExperience technical support

Feihong Semiconductor focuses on R & D and production of power devices

MOS FET/IGBT Single Tube/Diode/Triode

Free sample：feihongbcok@gmail.com

WeChat sweep, direct communication!

Plane MOSFET Product Application Articlesmore>
Common Circuit Solutionsmore>

Related Product recommend

  • FHU70N03C/FHD70N03C

    Feihong 70N03C uses advanced trench technology to obtain excellent FOM(RDSon * Qg), which is widely used in lithium battery protection boards. Other MOS tube brand alternative model: 50N03 70N03
    Free sample
    Join List

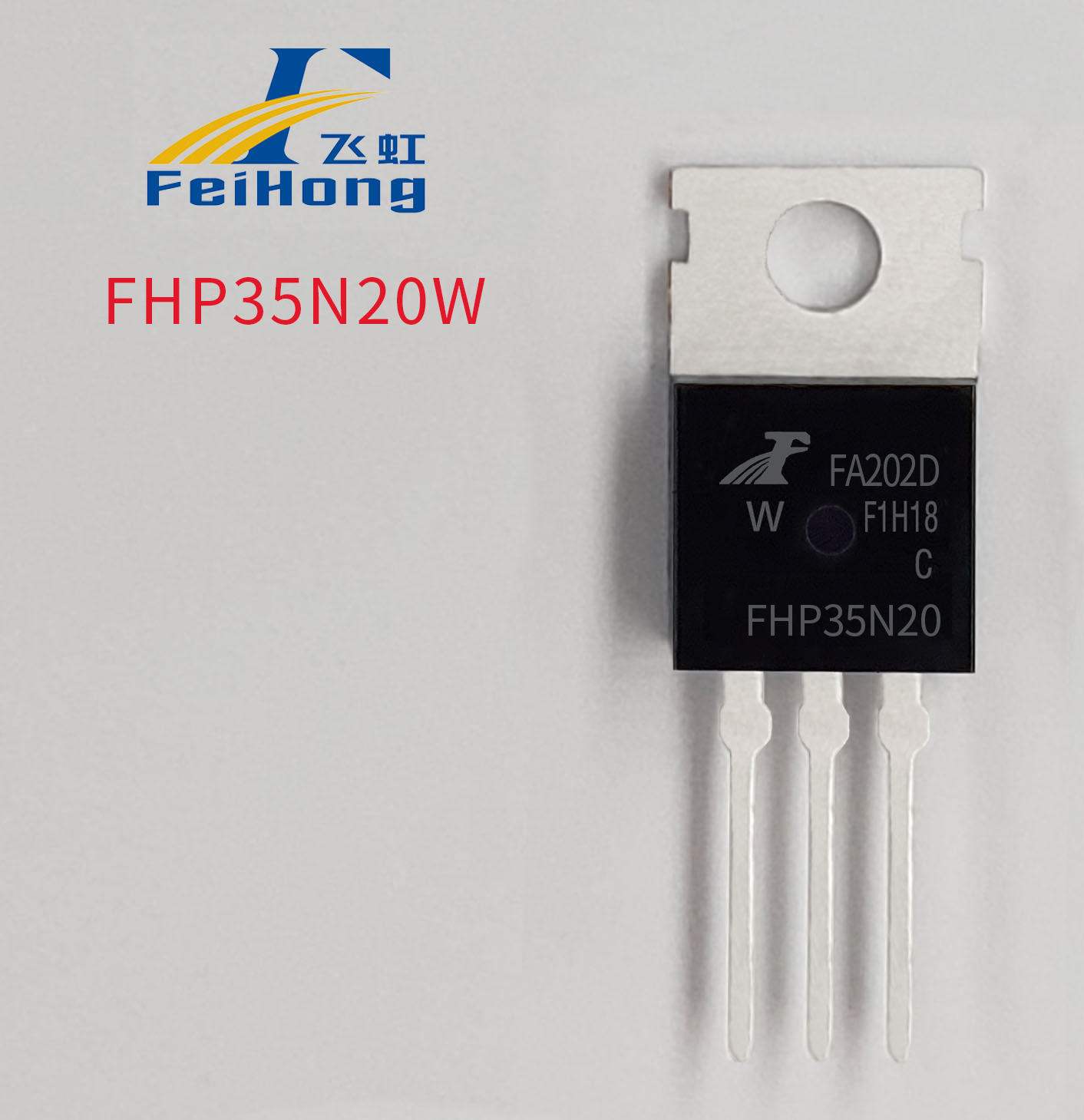

  • FHP35N20W
