Under the growth of downstream demand in IT and consumer electronics, healthcare, new energy, transportation, etc., China's power supply industry is expected to reach a scale of 611.4 billion yuan by 2030. With continuous development in scale, technology is also improving, and so is the quality of power supply products, including DC-DC power supplies.

For improving the quality of DC-DC power supplies, the field effect transistor is a very important component. Currently, domestically, 60N1F10A can be used to replace models such as IPP126N10N3G, STP80N10F, SVG10120NAT, etc., for application in DC-DC power supplies.

Why is 60N1F10A chosen to replace IPP126N10N3G, STP80N10F, SVG10120NAT, etc.? This is because this MOSFET with TO-220 packaging form can be widely used in DC-DC power supplies.

Let's review its product parameters again:

1. It has a current of 60A and voltage of 100V, RDS(on) = 12mΩ(MAX) @VGS = 10V, RDS(on) =10.2mΩ(TYP) @VGS = 10V, maximum gate-source voltage @VGS = ±20V.

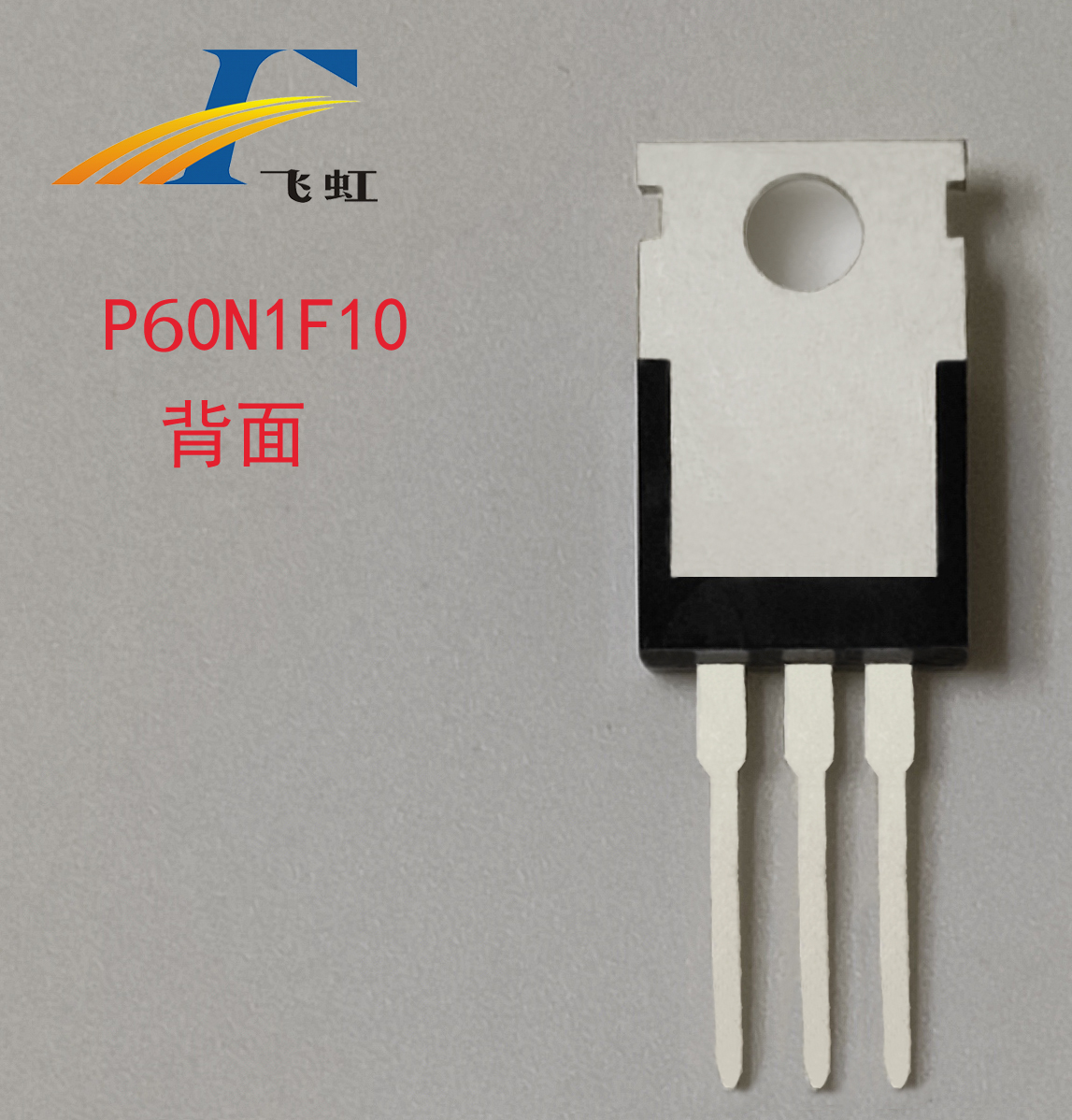

60N1F10A is an N-channel enhancement mode field effect transistor, with a TO-220 package size suitable for circuit design.

The specific parameters of this product are: Vgs(±V): 20; VGS(th): 2.0-4.0V; ID(A): 60A; BVdss(V): 100V.

Reverse transfer capacitance: 10pF, maximum pulse drain current (IDM): 240(A).

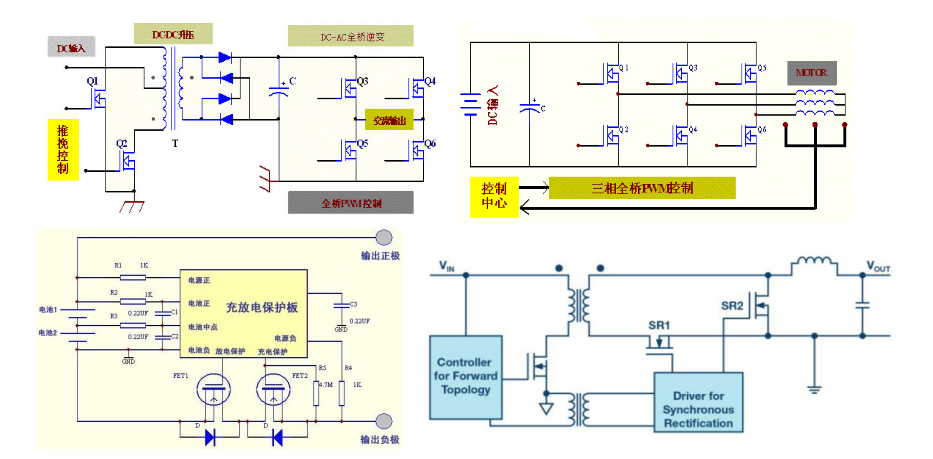

Because of the above parameters of this MOSFET, it plays a role in power control and conversion in DC-DC power supplies, ensuring efficient operation of the power supply.

If you need to choose a strong electronic component supplier to ensure supply. It is recommended to understand Feihong's domestic model: the parameters of the 60N1F10A model can replace IPP126N10N3G, STP80N10F, SVG10120NAT, etc., for application.

Replacing MOSFETs with 60A and 100V, choosing the right model parameters can enhance the product competitiveness of enterprises. Feihong has obtained 15 utility patents and inventions, and collaborates with Sun Yat-sen University and the Chinese Academy of Sciences to research GaN devices. Feihong products have been widely applied in DC-DC power supplies, energy storage power supplies, DC-AC inverters, AC-DC switch power supplies, garden tools, and BLDC motor drives, helping partners solve high-quality domestic products that meet national conditions and international standards. In addition to providing free samples, we can also customize MOSFET products according to customer needs. Simply search "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
