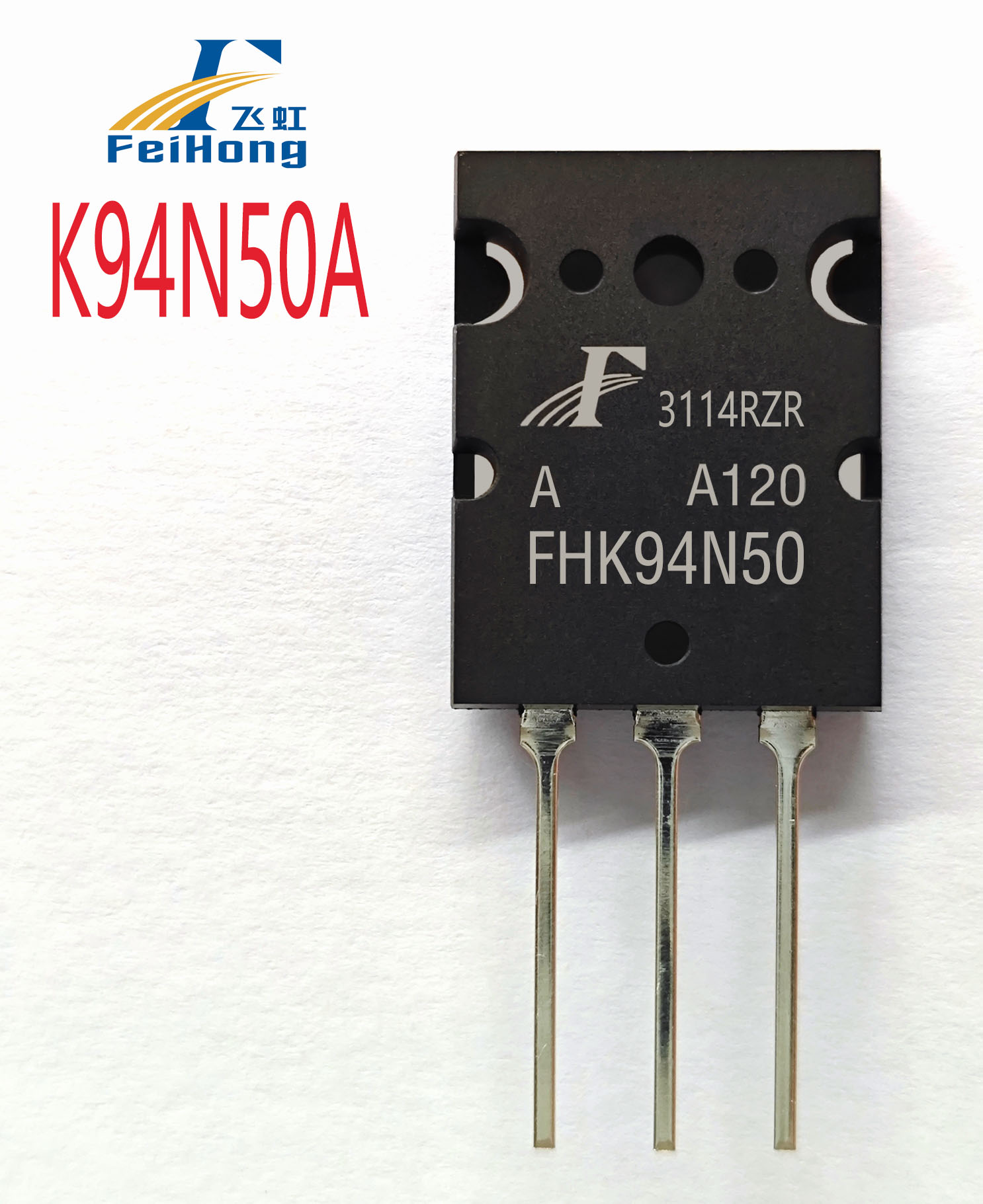

FHK94N50A

Release time：2023-12-29 17:04:32

Industry generic name：IXYS Brand IXFK94N50P2Wait

View Specifications >

  • N-channel enhanced VDMOS-with frd ,ID = 94A ,BVDSS = 500V ,RDSON:47mΩ-typ,65mΩ-max,TO-264 package form factor, market reference model: IXYS brand IXFK94N50P2

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHk94N50A
N
k
30
3~5
94
500
47
65

Product Details

【Product Description of Feihong FHK94N50A】

N-channel enhancement VDMOS with frd, ID = 94A, BVDSS = 500V, RDSON: 47mΩ-typ, 65mΩ-max, TO-264 package shape, market reference model: IXYS brand IXFK94N50P2


【Product Features of Feihong FHK94N50A】

Low on-resistance and low Qg, high dv/dt capability, 100% EAS test (high avalanche tolerance, strong impact resistance), 100% DVDS thermal resistance test (good heat dissipation performance), 100% Rg test, high testing standards, 100% parameter tests + VTH classification, good parameter consistency, high reliability, integrated fast recovery diode



【Application Examples of Feihong FHK94N50A】


1. Stage audio power amplifier



General term: Class D professional audio power amplifier


1800W dual-channel model: use 4 pieces of FHK94N50A, and can be equipped with 8 pieces of Flyhong's TO-247-2L packaged FHA60F60CA, complete the power devices at one stop.

3000W dual-channel model: use 8 pieces of FHK94N50A, and can be equipped with 16 pieces of TO-247-2L packaged FHA60F60CA from Flyhong, complete the power devices at one stop.

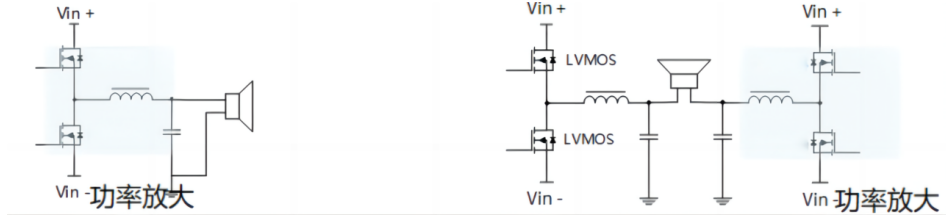

Typical circuit topology


Inverter circuit diagram

.png
