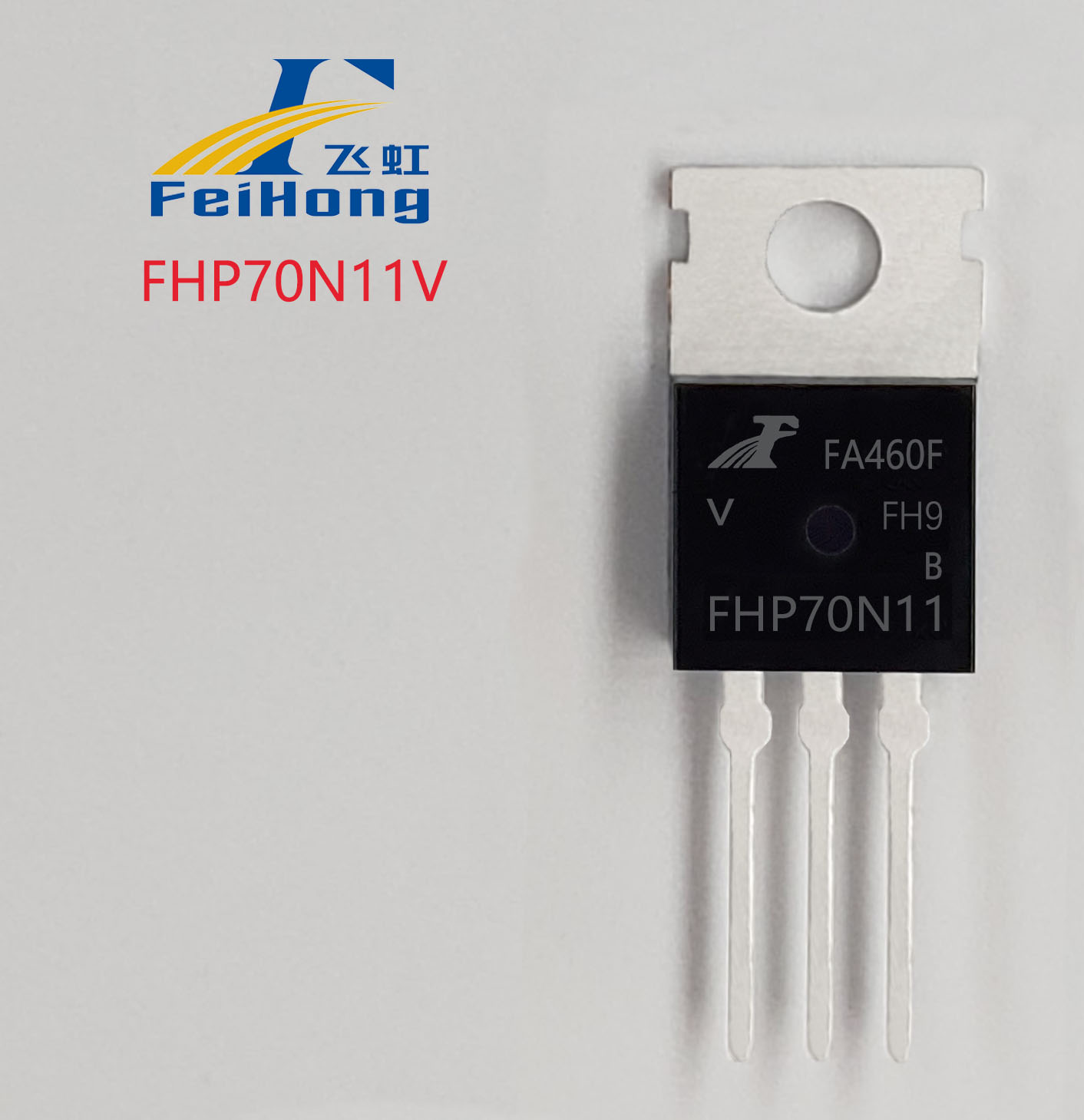

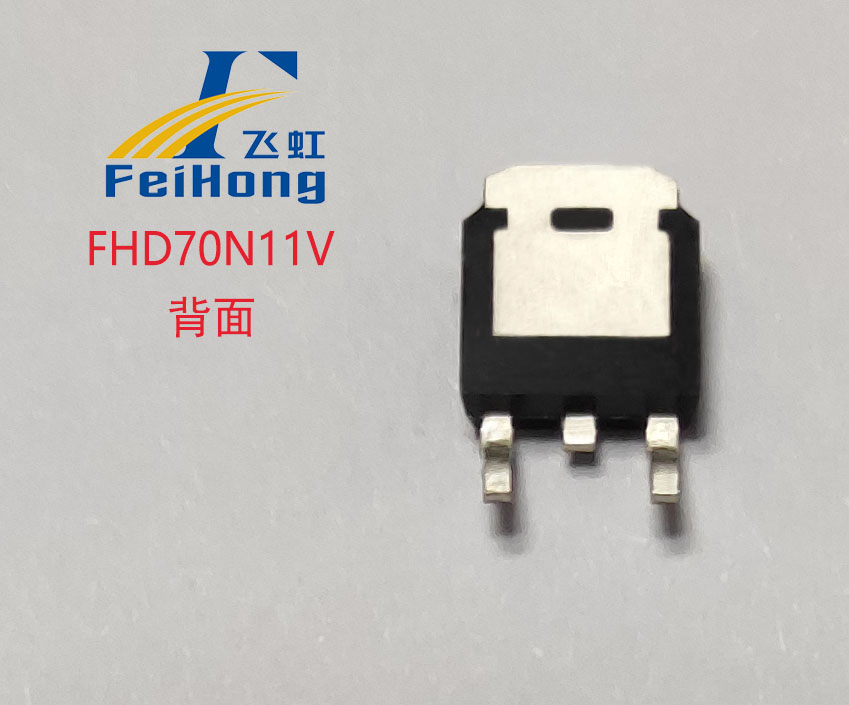

FHP70N11V/FHD70N11V

Release time：2025-03-29 14:13:13

Industry generic name：JCS60N10, IRF3710Wait

View Specifications >

  • 70N11V adopts advanced trench technology, combined with better process conditions and fine optimization of device structure, so that the product has very low on-resistance and optimized switching characteristics and reliability. The transistor is available in different package forms such as TO-252 and TO-220, and can be applied to various power switching circuits for system miniaturization and high efficiency. Products comply with JEDEC standards, in environmental compliance with RoHS and REACH standards, halogen-free requirements.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP70N11V FHD70N11V
N
TO-220
20
3
70
110
12.4
18

Product Details

【Product Name】 FHP70N11V FHD70N11V

【Type of FHP70N11V and FHD70N11V Products】 Trench  Power  MOSFET

【Description of FHP70N11V and FHD70N11V Products】 The 70N11V adopts advanced trench technology, combined with better process conditions and fine optimization of device structure, making the product have extremely low on-resistance and optimized switching characteristics and reliability. The transistor can provide different package styles such as TO-252 and TO-220, which can be applied to various power switch circuits to achieve system miniaturization and high efficiency. The product complies with JEDEC standards, meets RoHS and REACH standards in terms of environmental protection, and is halogen-free.

【Market Models Replacing FHP70N11V and FHD70N11V】 JCS60N10   IRF3710

(1) It has a wider voltage margin compared to JCS60N10, a wider SOA (Safe Operating Area), and stronger impact resistance.

(2) In the audio amplifier industry, it can replace IRF3710 for domestication replacement.

 【Features of FHP70N11V and FHD70N11V Products】

(1) 100% UIS test.

(2) 100% Rg test.

(3) 100% DVDS thermal resistance test.

(4) Higher voltage margin, wider SOA (Safe Operating Area).

(5) By adopting the unique trench process and excellent packaging BOM materials, the product has high reliability and fast switching speed.

(6) Excellent FOM (RDS(on)*Qg).

(7) High avalanche tolerance and strong impact resistance.

【Applications of FHP70N11V and FHD70N11V Products】:

(1) Audio amplifier

(2) DC-DC converter

(3) Stepper motor driver

(4) BLDC DC brushless motor controller

(5) DC-AC vehicle inverter powered by 24V

(6) Synchronous rectification.
