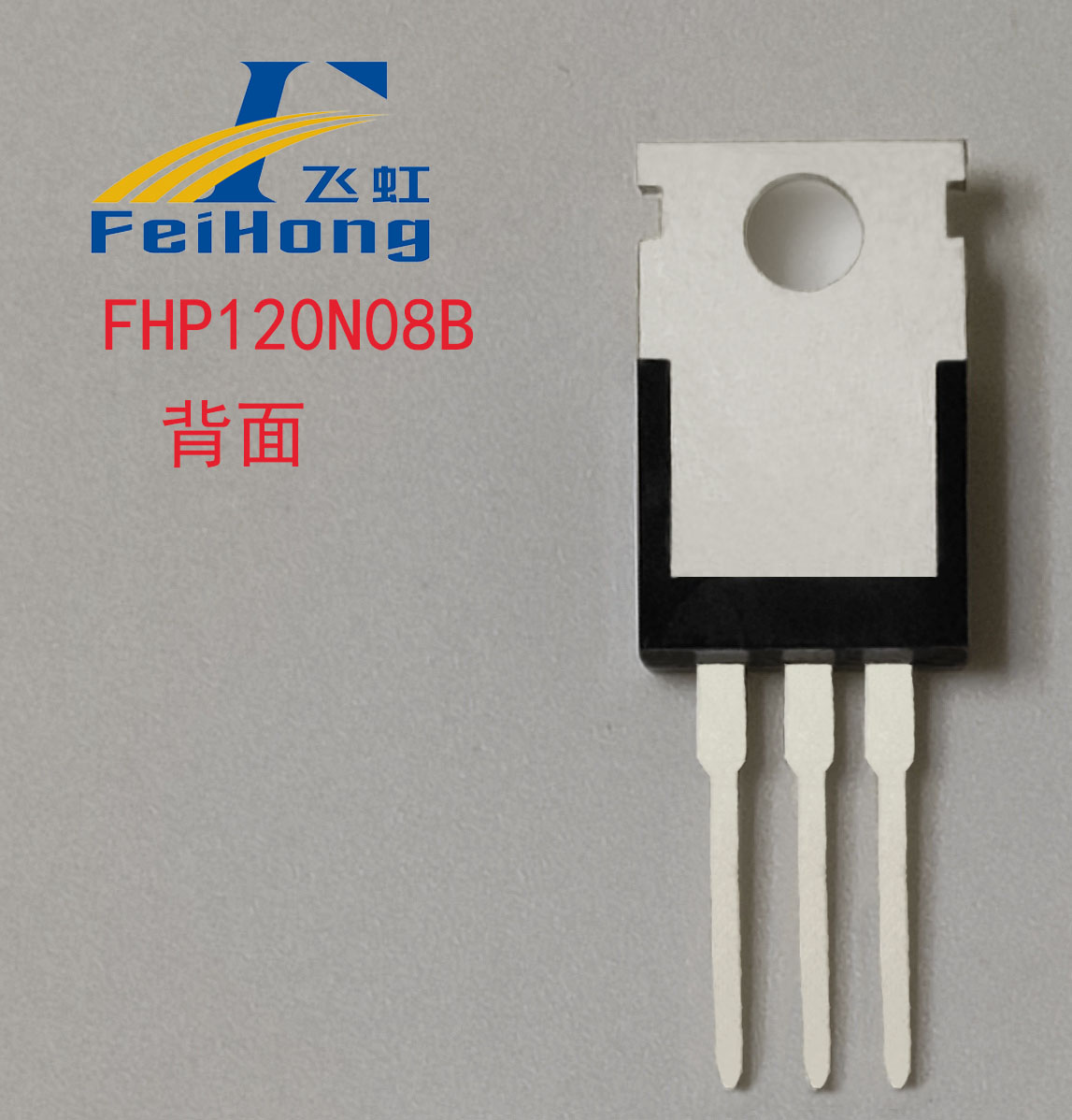

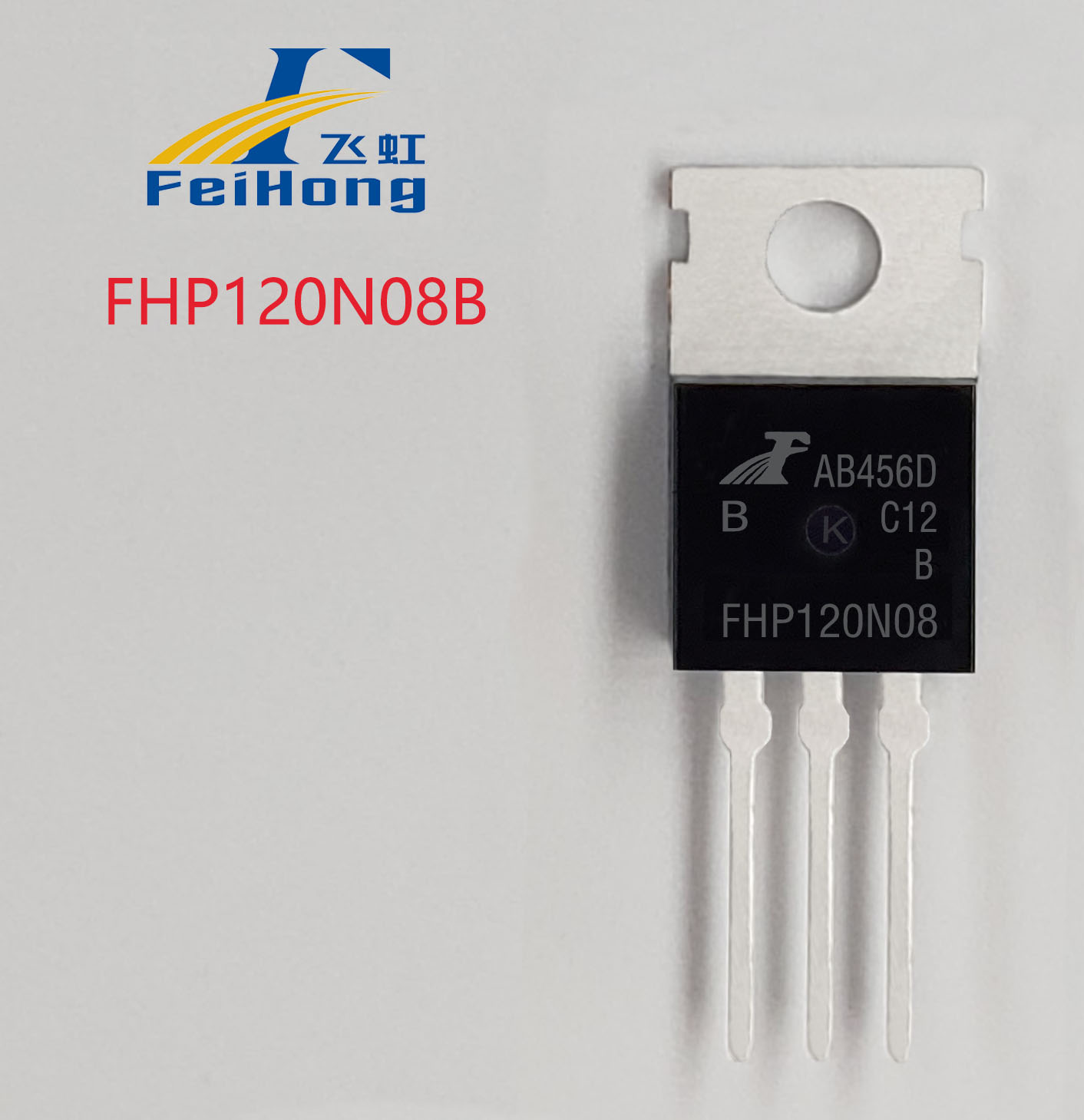

FHP120N08B

Release time：2022-07-13 13:53:25

Industry generic name：120N 08 140 N08Wait

View Specifications >

  • Feihong 120N08B uses advanced trench technology to obtain excellent FOM(RDSon * Qg), which is widely used in inverters. Other MOS tube brand alternative model: 120N 08 140 N08

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP120N08B
N
TO-220
20
2～4
120
80
4.8
5.9

Product Details

【FHP120N08B product type】

N-channel Trench MOSFET


【FHP120N08Bproduct description】

      Fei Hong 120N08B adopts advanced trench process to achieve excellent FOM (RDSon*Qg), and is widely used in inverters. Other MOS tube brand alternative models: 120N08 140N08



【FHP120N08Bproduct features】

     100% EAS test, 100% Rg test, 100% DVDS test, high avalanche tolerance, high reliability, low Qgd, low RDSon.









【FHP120N08Bapplication examples】

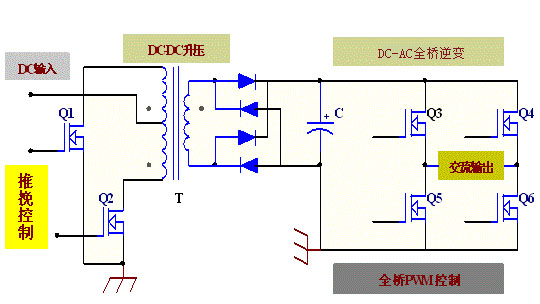

      FHP120N08B is suitable for the push-pull structure circuit of the DC-DC boost module in the inverter, such as Q1-Q2 in the schematic. FHP120N08B has extremely low on-resistance, strong load capacity, and a typical value of 4.8mΩ resistance comparable to the 140N08(140A80V) specification. It can replace the market's 120N08.
