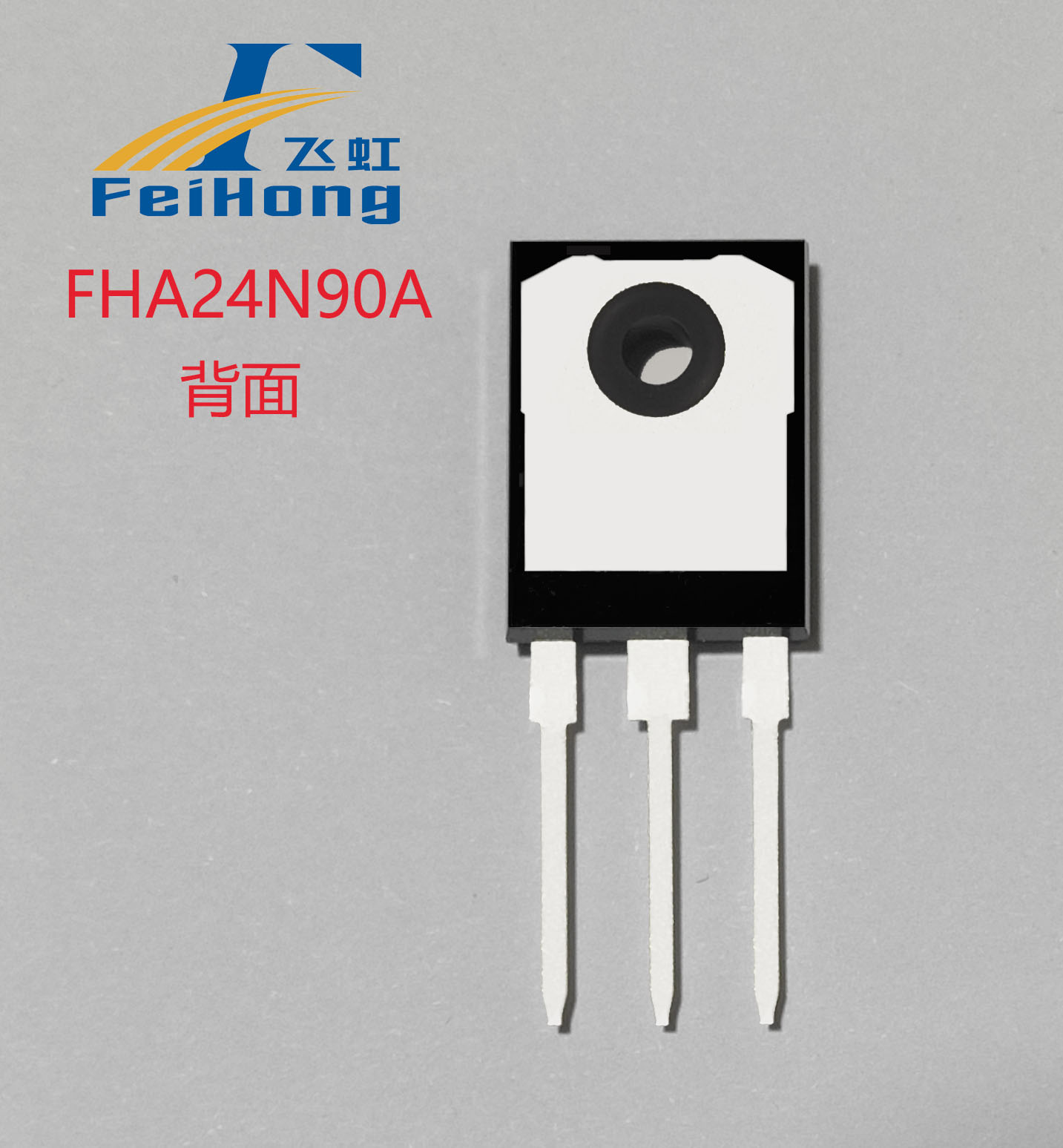

FHA24N90A

Release time：2024-03-25 14:11:29

Industry generic name：IXYS:IXFH24N90PWait

View Specifications >

  • Low conduction internal resistance, high dv/dt resistance, 100% EAS test (strong impact resistance),100% DVDS thermal resistance test (good heat dissipation performance),100% Rg test, high reliability (meeting industrial reliability requirements).

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHA24N90A
N
TO-247
3
2~4
24
900
290Ω
350Ω

Product Details

【FHA24N90A】

N-channel Trench MOSFET


【FHA24N90AProduct Description】

      N-channel enhancement-mode VDMOS,

 ID=24A  ，BVDSS=900V ，RDSON：290mΩ-typ，350mΩ-max，TO-247 package outline

Market reference model: IXYS: IXFH24N90P


【FHA24N90AProduct Features】

      Low on-resistance, high dv/dt capability, 100% EAS test (strong impact resistance), 100% DVDS thermal resistance test (good heat dissipation performance), 100% Rg test, high reliability (meets industrial grade reliability requirements).



【FHA24N90AApplication Examples】


      Industrial power supply with AC 380V input, can be used for PFC or PWM switching control circuit


       Power system three-phase power supply box with 380V input



Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IXFK94N50P2IXFK94N50P2 model MOS tube

prev：

FHF3N150A/FHA3N150A

next： none back
