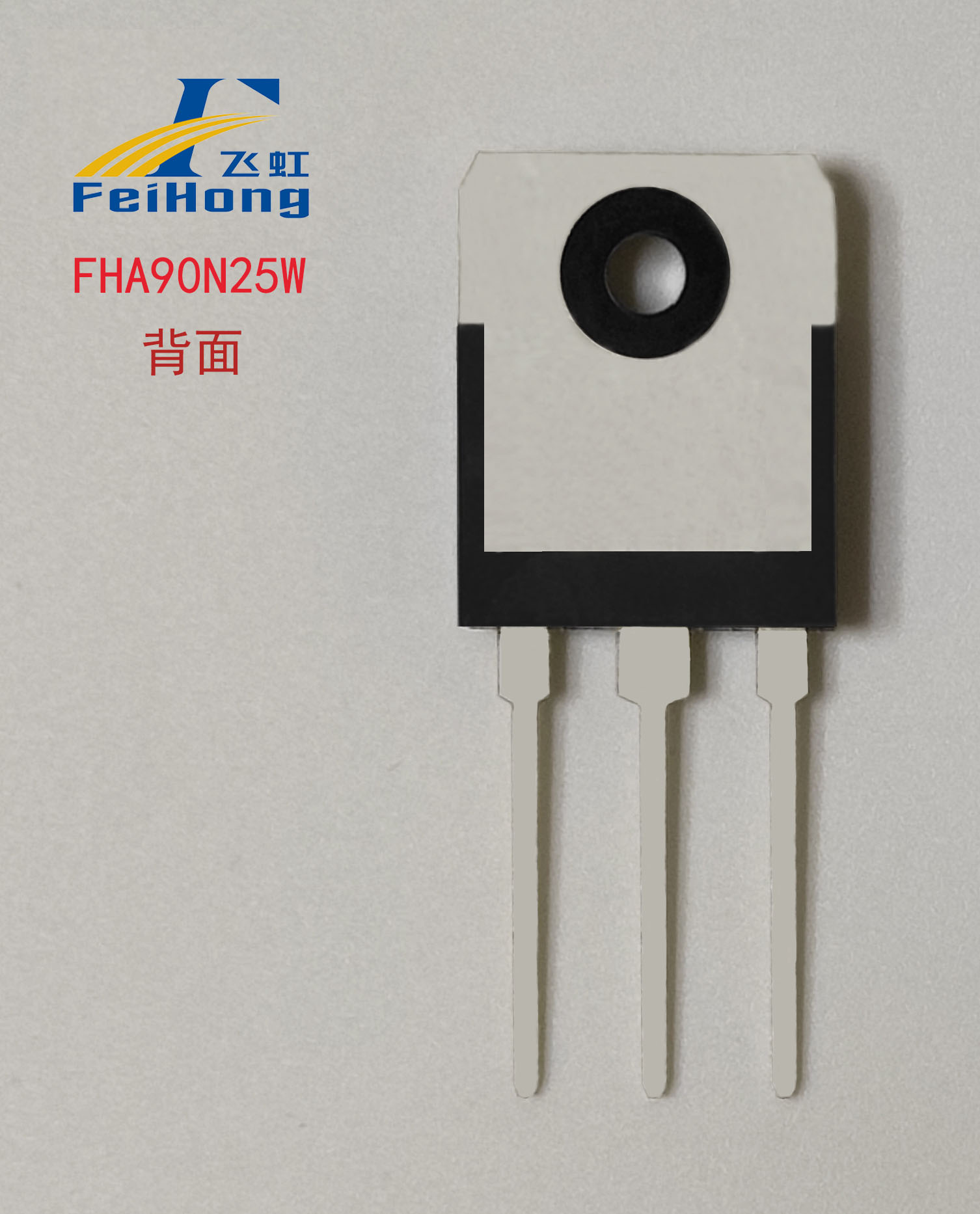

FHA90N25W

Release time：2023-07-12 09:41:58

Industry generic name：CS82N25Wait

View Specifications >

  • N-Channel Enhanced VDMOS,ID = 90A ,BVDSS = 250V ,RDSON:26mΩ-typ,35mΩ-max,TO-3PN Package Form Factor, Market Reference Model: CS82N25

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHA90N25W
N
TO-3PN/247
30
2～4
90
250
0.026
0.035

Product Details

【Product Description of FHA90N25W by Feihong】

N-channel enhancement-mode VDMOS, ID=90A, BVDSS=250V, RDSON: 26mΩ (typical), 35mΩ (maximum), TO-3PN package shape, market reference model: CS82N25


【Product Features of FHA90N25W by Feihong】

Feihong's 90N25W features low on-resistance, high dv/dt capability, 100% EAS test (strong impact resistance), 100% DVDS thermal resistance test (good heat dissipation performance), 100% Rg test, high testing standards, 100% parameter tests including VTH classification, good parameter consistency and high reliability (meeting industrial-grade reliability requirements)



【Application Examples of FHA90N25W by Feihong】


1. DC-AC Inverter



Automotive-specific inverter: specific usage plan: used in an H-bridge inverter circuit with a maximum output of 3000W AC110V sine wave.


Outdoor energy storage power supply: specific usage plan: used in an H-bridge inverter circuit with a maximum output of 3000W AC110V sine wave for the outdoor energy storage power supply module. The main market demand is for countries with AC110V mains electricity.


The principle of automotive sine wave output inverters is the same as that of the inverter modules for outdoor energy storage power supplies.

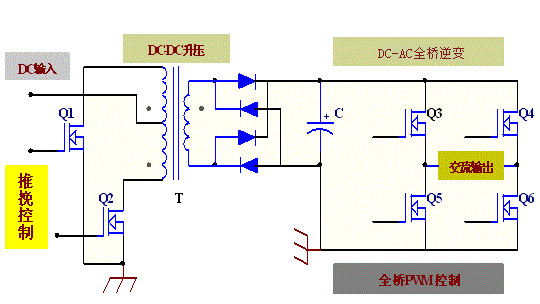

Inverter Circuit Diagram



2. Mainly for DC-DC Circuits

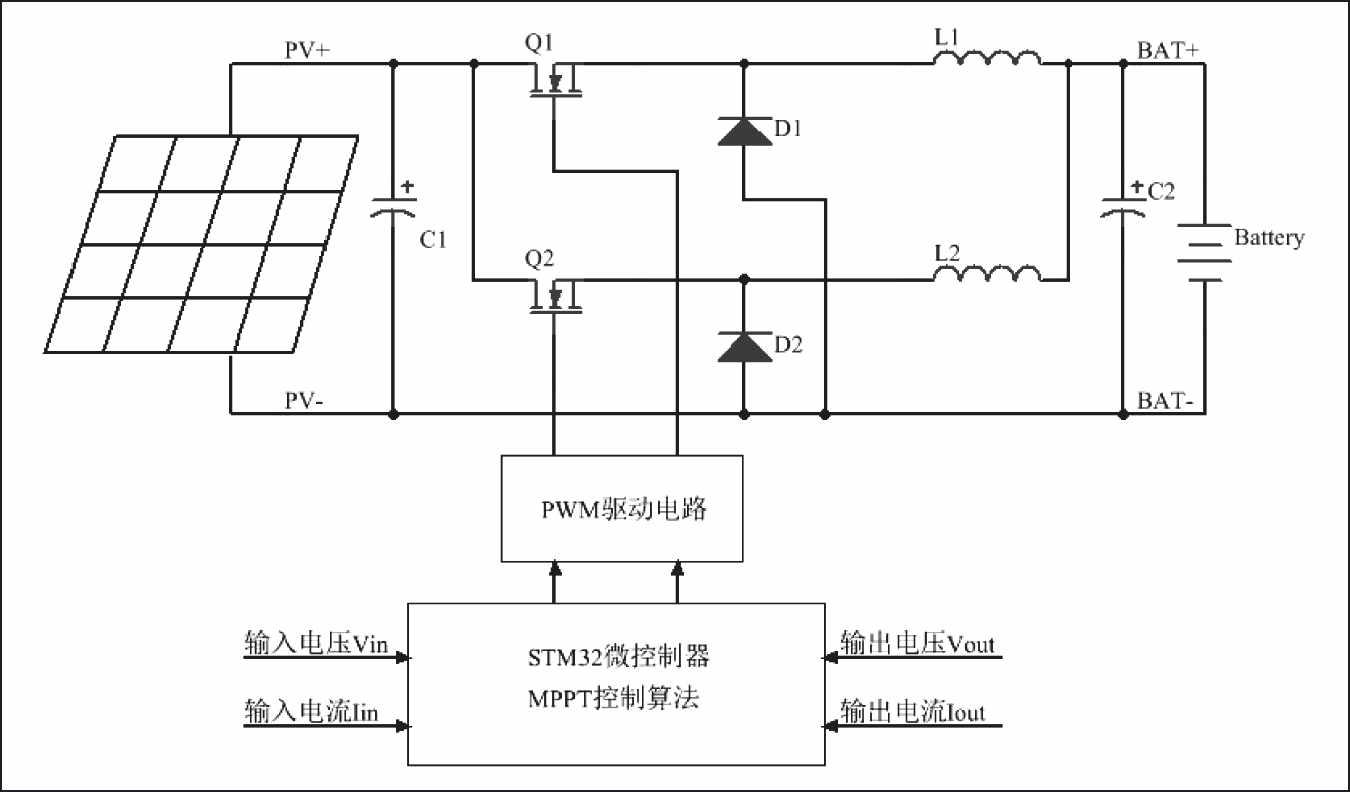

Schematic diagram
