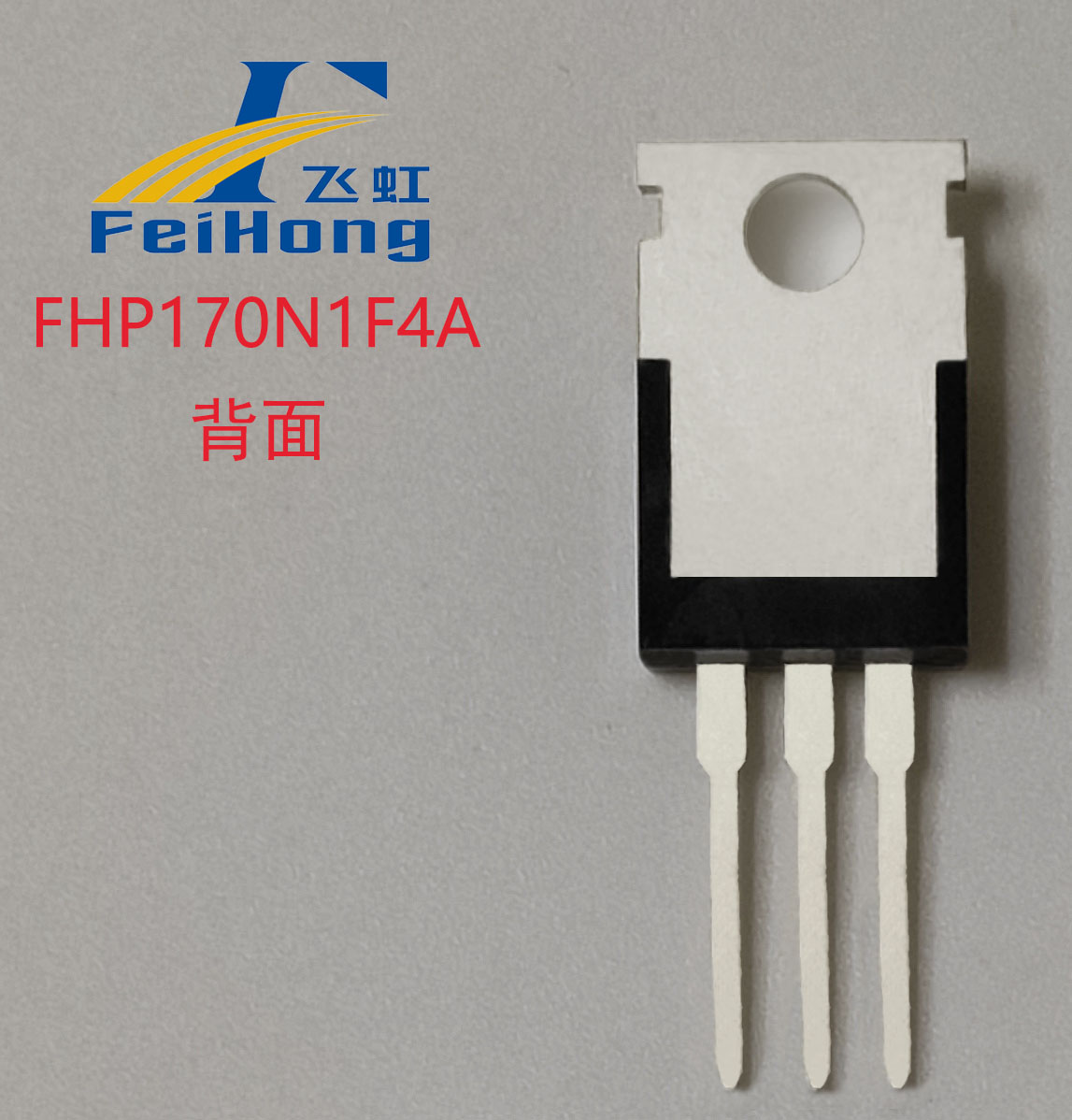

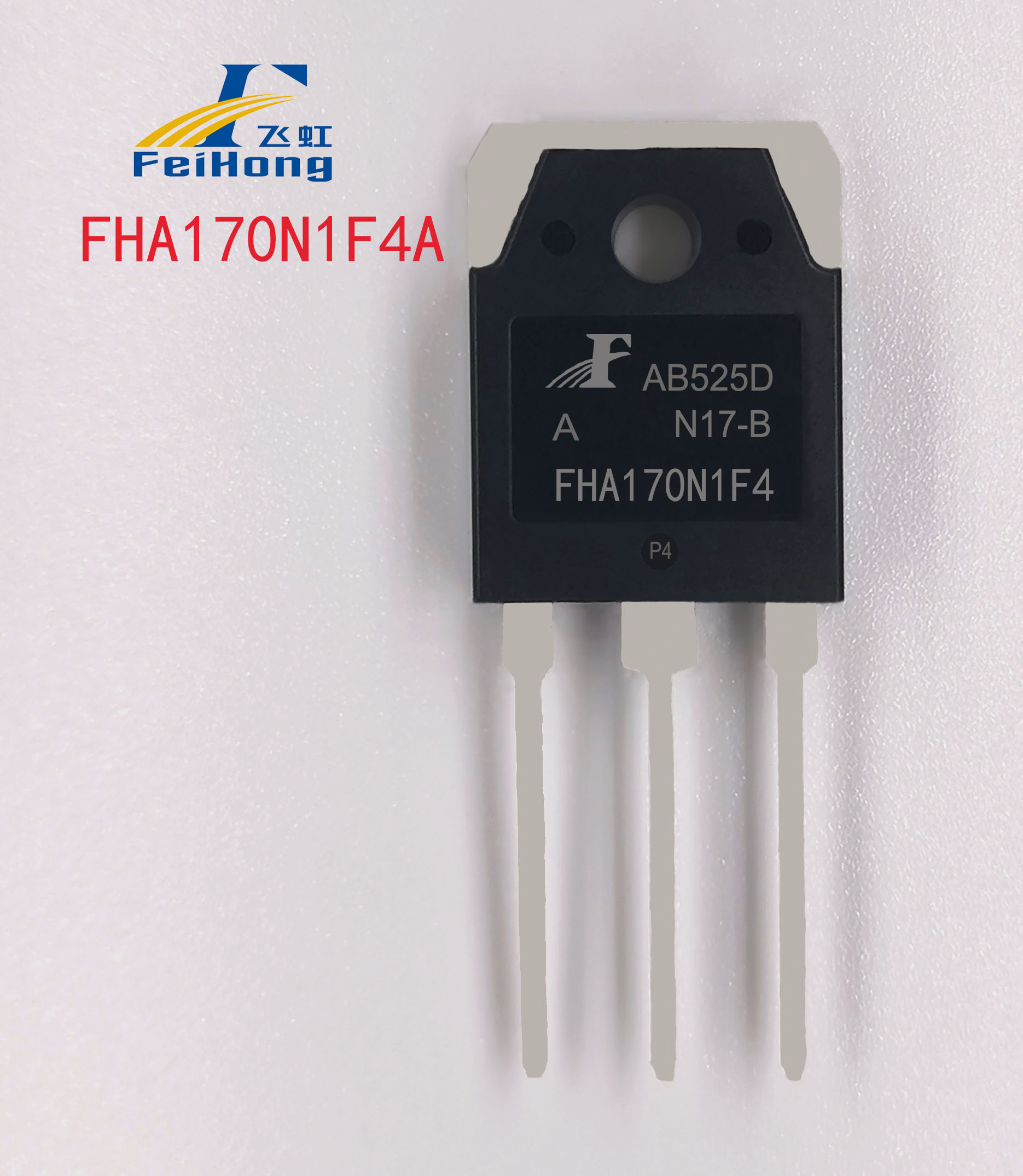

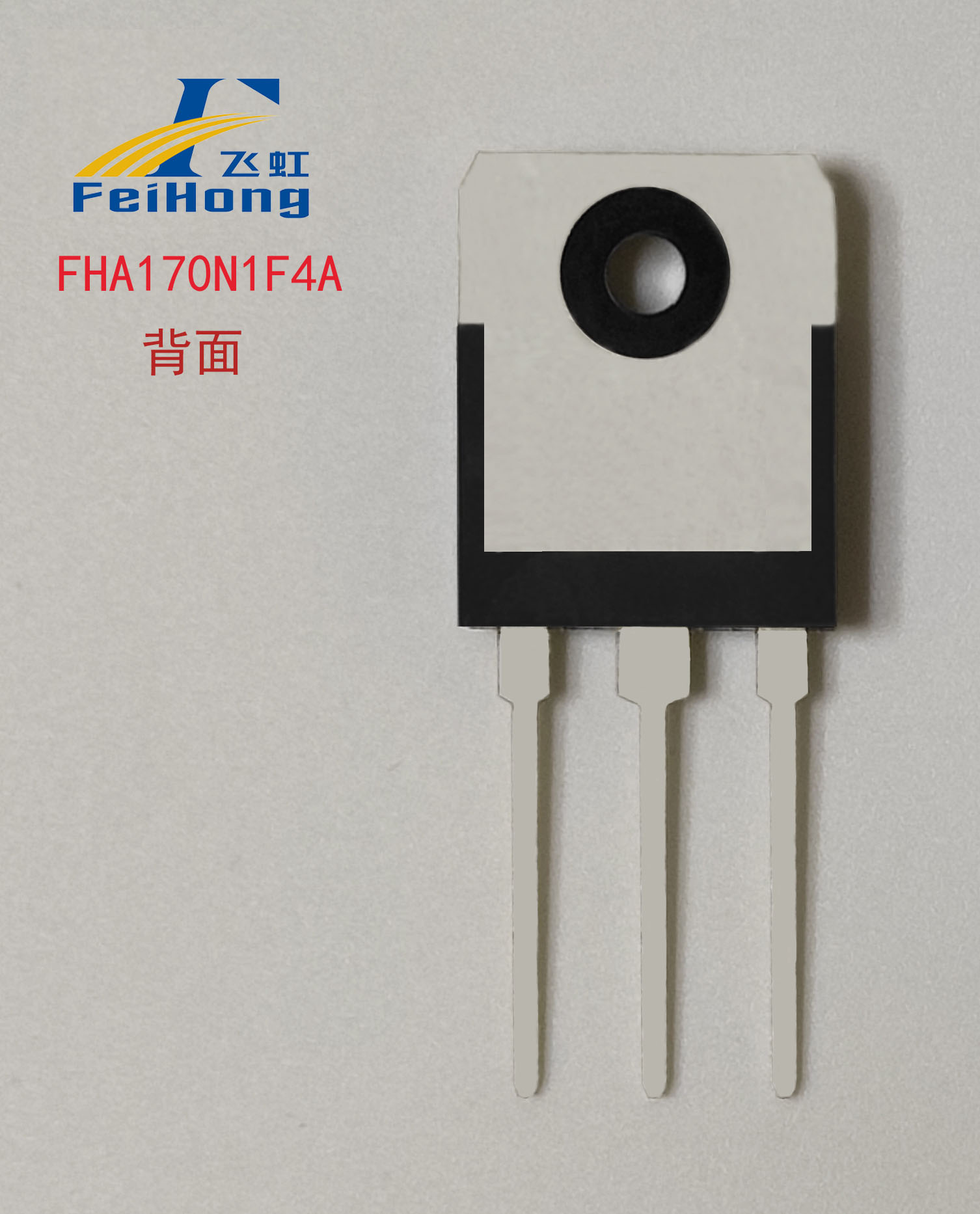

FHP170N1F4A/FHS170N1F4A/FHA170N1F4A

【Flying虹 170N1F4A Product Description】

Flying虹 170N1F4A, SGT MOSFET, adopts the SGT process to achieve excellent RDSON on-state resistance and outstanding quality factor FOM (RDSON*Qg), enabling fast hard switching and effectively improving conversion efficiency. It also has excellent short-circuit pulse current resistance performance. TO-220 products are widely used in 5G power supplies, 12-24V automotive inverters, 48V industrial frequency inverters, AC-DC switch power supplies, DC/DC converters, UPS, outdoor energy storage power supplies, BLDC motor drives (72V electric vehicle controllers), etc., while TO-263 products are suitable for battery management.Other MOS tube brand replacement models: HYG045N10NS1B, HYG042N10NS1B, IPB045N10N3G, STI150N10F7, SVG104R0NS, MDP1991, HYG045N10NS1P, HYG042N10NS1P, IPP045N10N3G, STP150N10F7, SVG104R0NT.

【Flying虹 170N1F4AProduct Features】

Flying虹 170N1F4A,100% EAS test, 100% Rg test, 100% DVDS thermal resistance test, excellent quality factor FOM (RDSON*Qg), high consistency, high reliability, high avalanche tolerance.

【Flying虹 P/S170N1F4AApplication Examples】

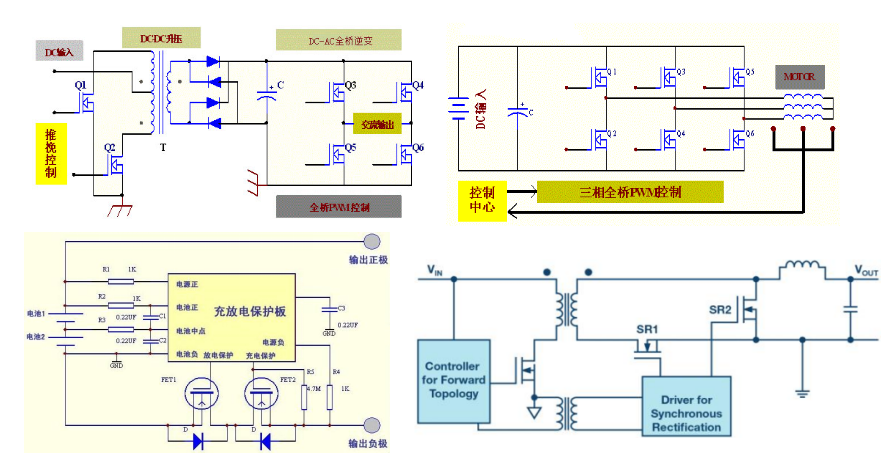

(1) The DC-DC boost structure in power supplies such as energy storage power supplies/solar controllers/inverters/UPS uses a push-pull structure or half-bridge/full-bridge structure.

(2) Motor drives include: gardening tools, electric tools, electric vehicle controllers, industrial automation equipment.

(3) Lithium battery protection boards: Based on the wide BV characteristics of SGT, our company's 85V SGT tube BVDSS typical value is 96V, which can be used in 13-17 series lithium battery protection boards to provide charging and discharging protection functions.

(4) SGT products can be used as SR synchronous rectifier tubes in communication power supplies of the DC-DC class or high-power AC-DC class power supplies, with lower voltage drop, higher conversion efficiency, and meeting energy-saving requirements.
