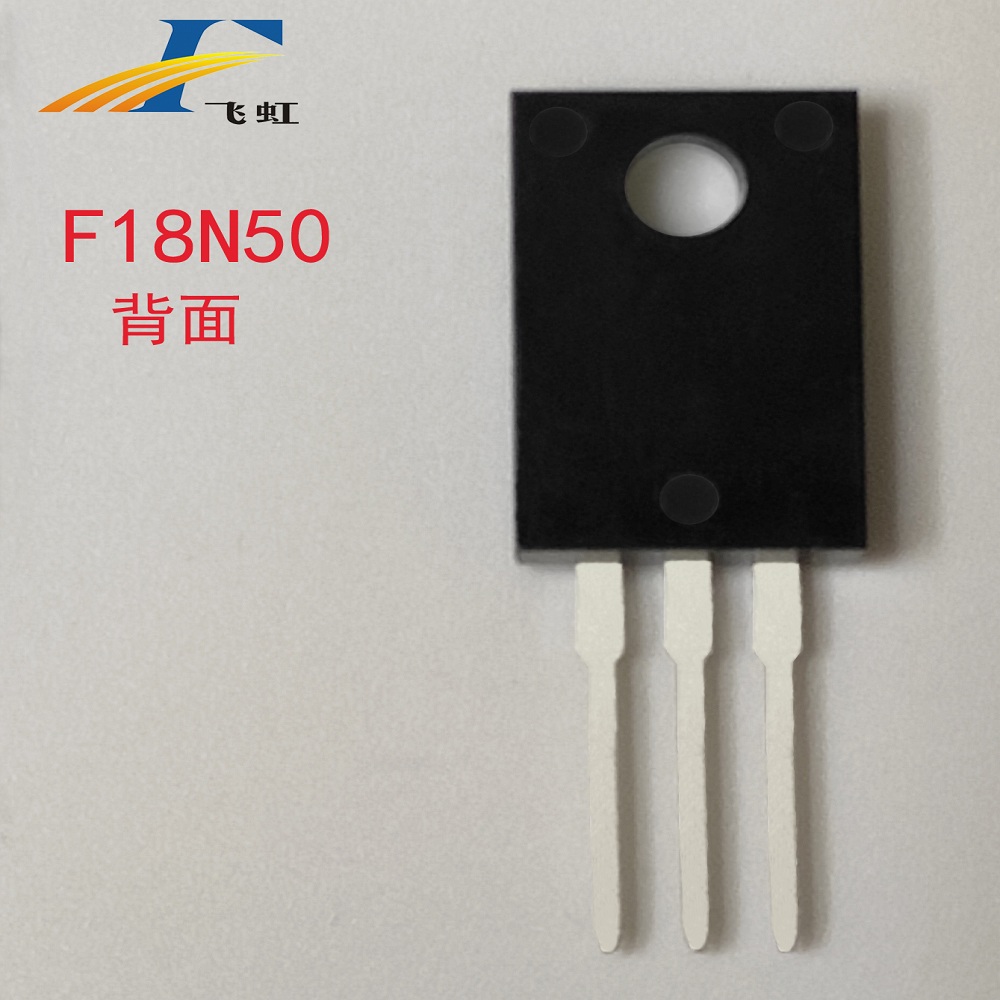

FHF18N50W

Release time：2017-05-23 10:44:46

Industry generic name：FQP18N50, FQP16N50Wait

View Specifications >

  • Feihong 18N50mos tube is an N-channel enhanced low-voltage power FET. This product is widely used in DC-AC power converters, DC-DC power converters, switching power supplies/UV lamp electronic ballasts.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHF18N50W
N
TO-220F
30
2～4
18
500
0.295
0.36

Product Details


【Product Description】

Feihong 18N50 is an N-channel enhancement mode low-voltage power MOSFET. The product is widely used in DC-AC power converters, DC-DC power converters, switch power supplies/UV lamp electronic ballasts.Compared with other MOSFET brands:FQP18N50, FQP16N50;


【Product Features】

FHP18N50/FHF18N50, 18A, 500V, RDS(on) = 0.32Ω(max) @VGS = 10 V low charge, low reverse transfer capacitance, fast switching speed, low on-resistance, low temperature rise.


【Application Examples】


18N50 pin diagram
