FHP200N4F3A/FHS200N4F3A

Release time：2021-11-08 16:13:00

Industry generic name：IRF1404, IPP041N04NGWait

View Specifications >

  • Feihong 200N4F3A,SGT MOSFET, uses SGT process to obtain extremely low RDSON conduction internal resistance. Feihong products have wide BV voltage, fast switching capability and excellent short circuit resistance. TO-220 products are widely used in various DC/DC power converters, DC-AC inverters, AC-DC switching power supplies, UPS, energy storage power supplies, BLDC motor drives, etc.; other mos tube brand alternative models: IRF1404, IPP041N04NG.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP200N4F3A/FHS200N4F3A
N
TO-220 TO-263
20
2～4
200
40
2.4
3.1

Product Details

【Feihong 200N4F3A Product Description】

Feihong 200N4F3A, SGT MOSFET, adopts SGT technology to achieve an extremely low RDSON on-state resistance. Feihong products have a wide BV voltage range, fast switching capability, and excellent short-circuit resistance performance. TO-220 products are widely used in various DC/DC converters, DC-AC inverters, AC-DC switch power supplies, UPS, energy storage power supplies, BLDC motor drives, etc. ; Other MOSFET brand alternative models for this product include IRF1404, IPP041N04NG.


【Feihong 200N4F3A Product Features】

Feihong 200N4F3A，100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), extremely low input capacitance.

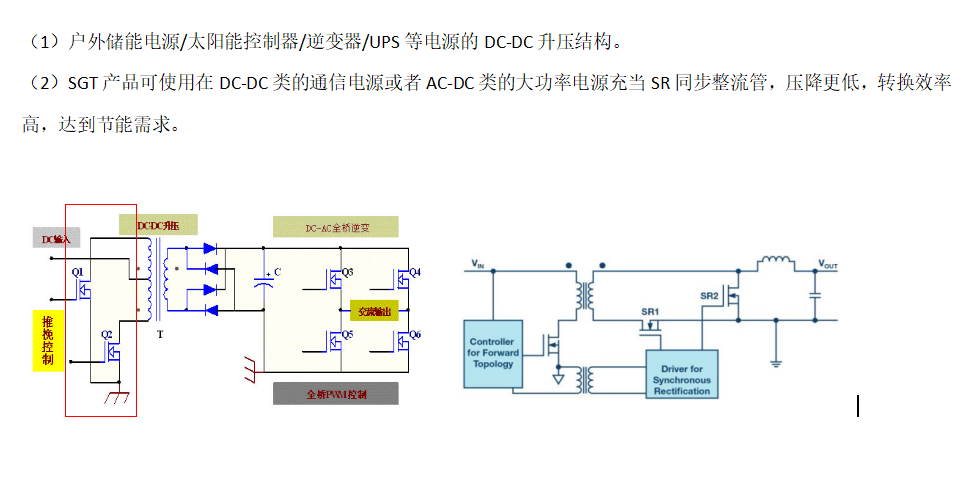

【Feihong 200N4F3A Application Examples】
