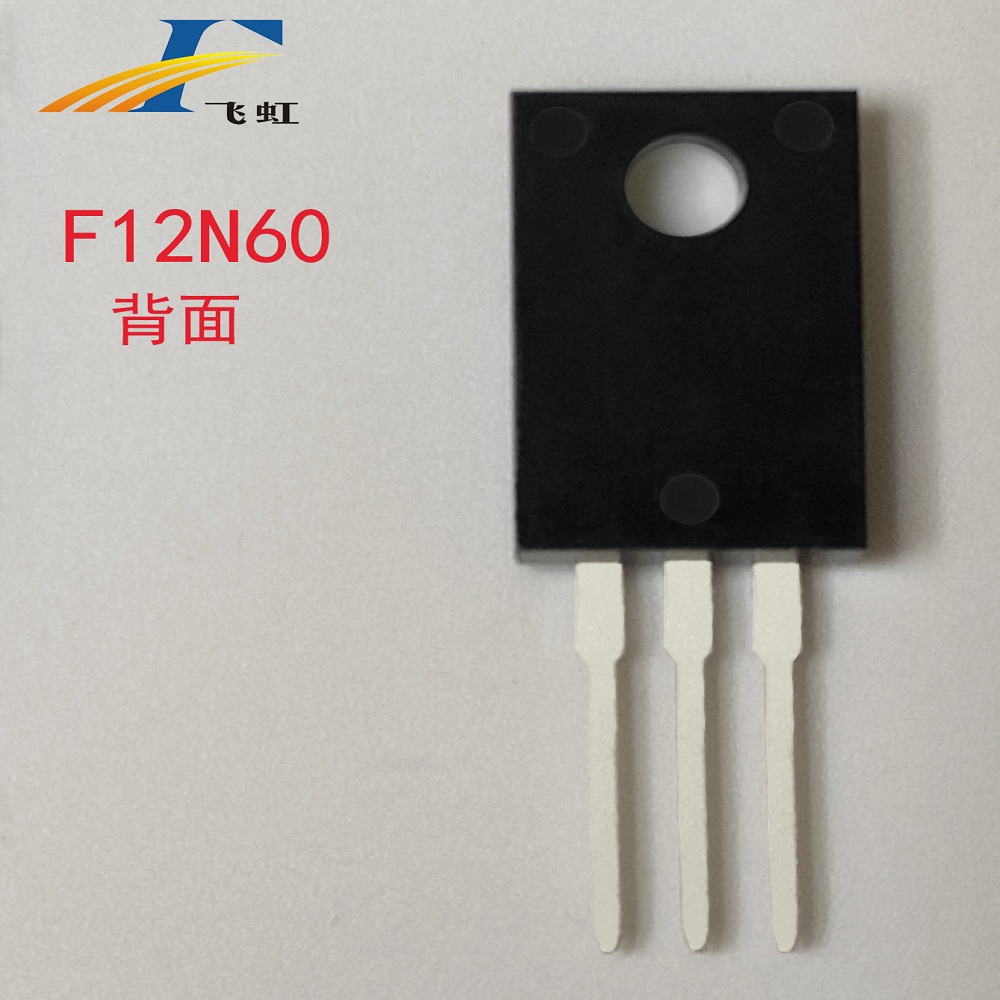

FHP12N60W/FHF12N60W

Release time：2017-05-23 10:36:34

Industry generic name：FQP12N60, TK12A60UWait

View Specifications >

  • 12N60 high voltage field effect tube (standard model: FQP12N60, TK12A60U),F/P package form, for N-channel enhanced high voltage power MOS field effect tube. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP12N60W/FHF12N60W
N
TO-220 TO-220F
30
2～4
12
600
0.49
0.65

Product Details

【Product Introduction】


FHP12N60/FHF12N60 high voltage MOSFET is an N-channel enhancement type high voltage power MOSFET. This product is widely applicable to AC-DC switch power supplies, DC-DC converters, and high voltage H-bridge PWM motor drivers.Comparable to other MOSFET brands and models:FQP12N60, TK12A60U;


【Product Features】


12N60, F/P package form, 12A, 600V, RDS(on) = 0.8Ω (max) @VGS = 10 VLow charge, low reverse transfer capacitance, fast switching speed
