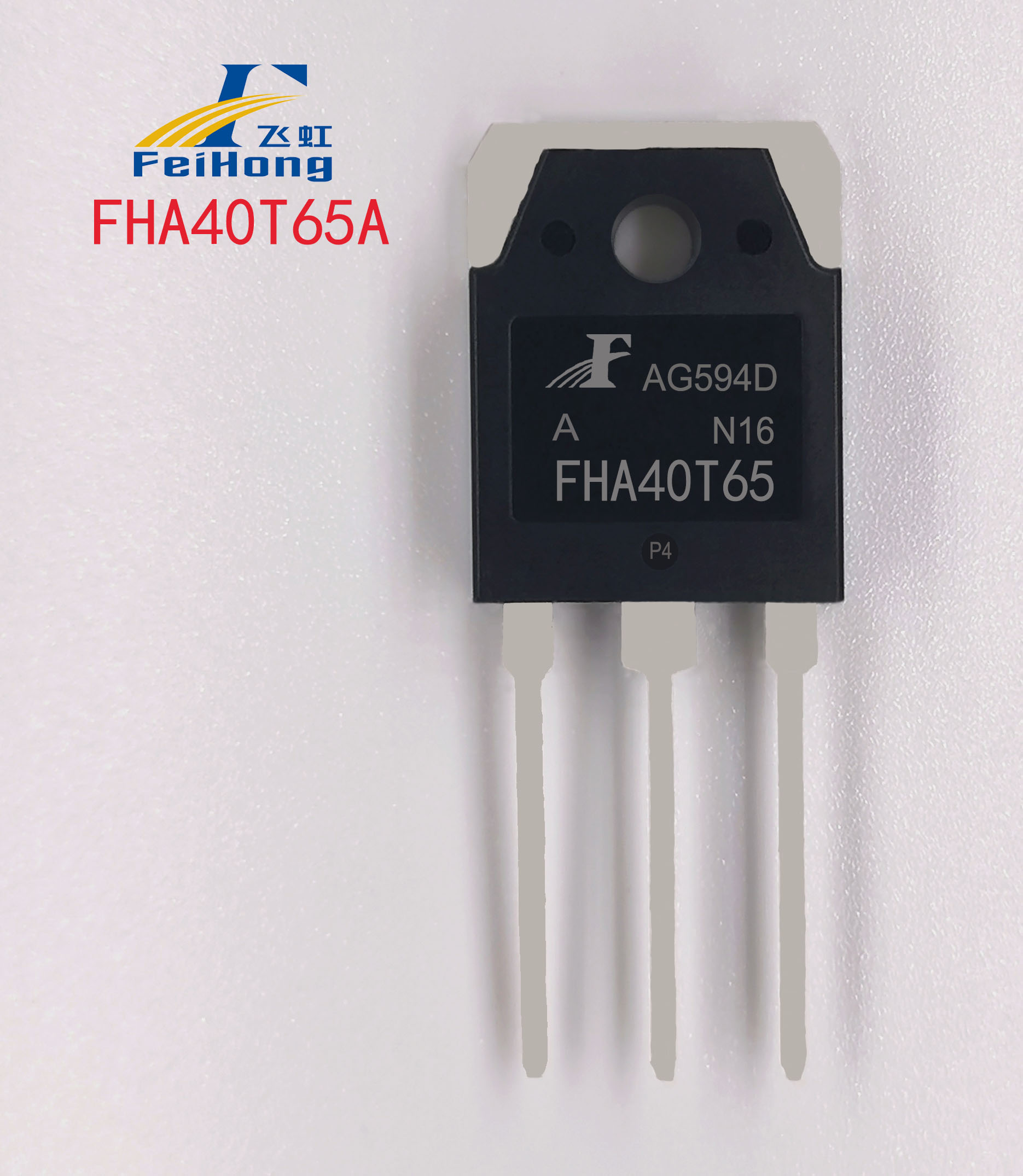

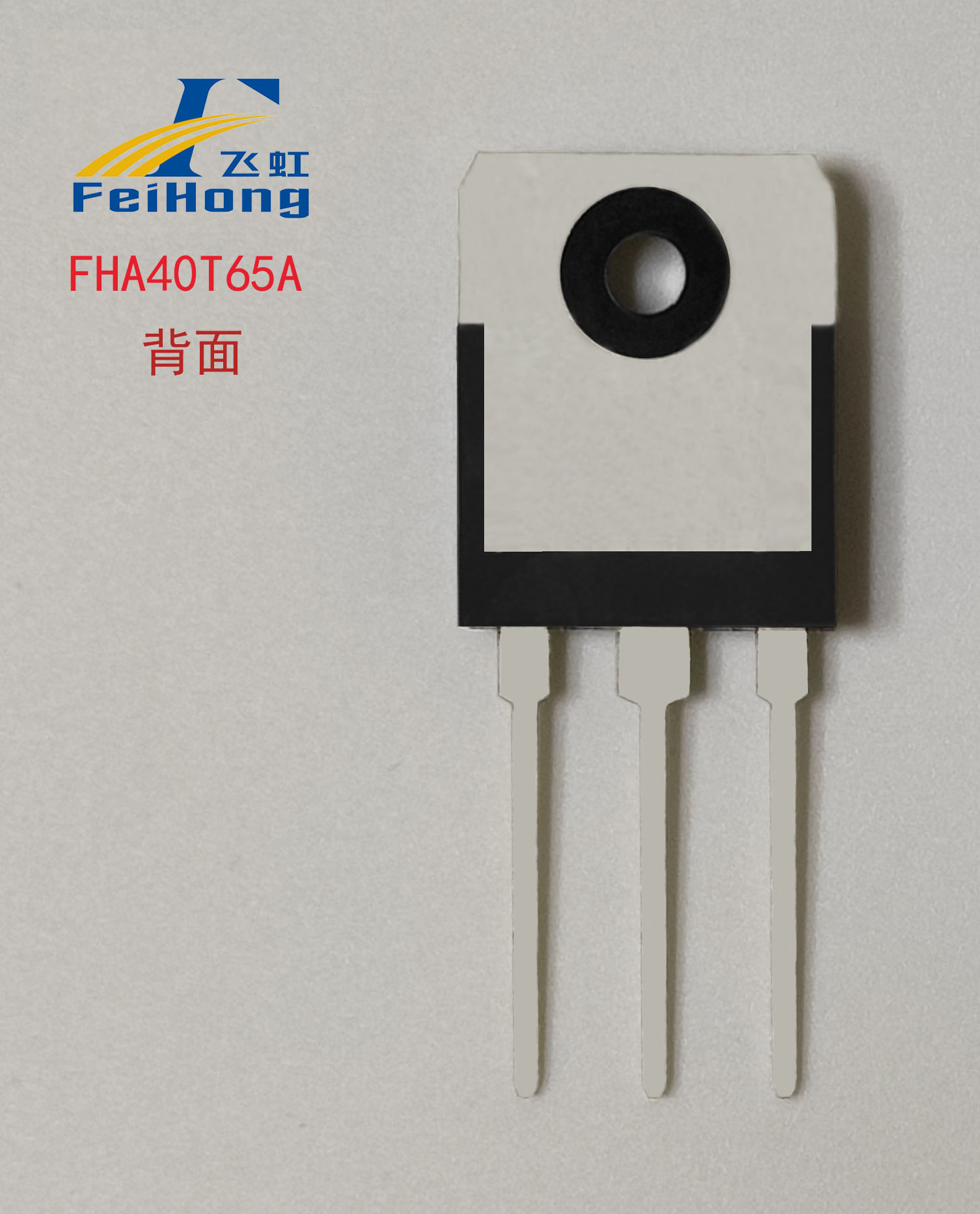

FHA40T65A

Release time：2022-07-13 13:53:25

Industry generic name：Fairchild FGH40N60SFDWait

View Specifications >

  • FHA40T65A is a field N-channel trench gate blocking IGBT, which is widely used in various hard switches such as high-frequency vehicle-mounted zhengxuanbo AC220V inverter, photovoltaic inverter, outdoor energy storage power supply, UPS, frequency converter, electric welding machine and industrial sewing machine. Can be used as an alternative to Fairchild FGH40N60SFD

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

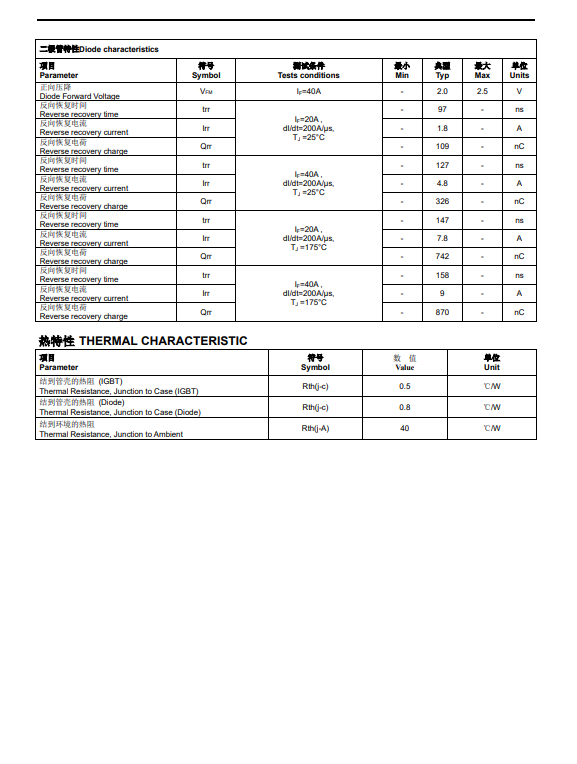

Product Parameters

Model Package VGE(th)（V） IC-100℃（A） BVdss(V) VCESAT(V) VF(V)
Model Encapsulation form typ max typ
FHA40T65A
TO-3PN
4.9~6.5
40
600
1.51
1.85
2

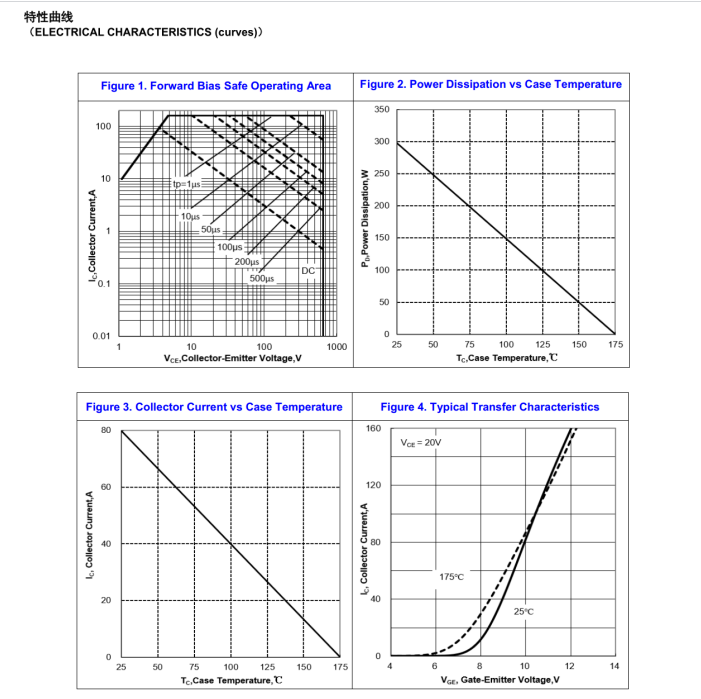

Product Details

【FHA40T65A Product Type】

  Trench Gate Field Stop IGBT

  Trench-FS IGBT


【FHA40T65AProduct Description】

       FHA40T65A is a channel N-type trench gate field stop IGBT, using Trench Field stop Ⅱ technology and optimized processes to achieve an extremely low VCEsat saturation voltage drop, and make a good trade-off between conduction loss and switching off loss (Eoff). The excellent on-state voltage drop and very short tail current provide strong support for optimizing system efficiency, and FHA40T65A also has good short-circuit characteristics, providing sufficient margin for handling emergencies in motor drive applications. It is widely applicable to high-frequency automotive sine wave AC220V inverters, photovoltaic inverters, outdoor energy storage power supplies, UPS, frequency converters, welding machines, industrial sewing machines, and other various hard-switching applications.

        Other IGBT tube brand replacement models: Fairchild FGH40N60SFD


【FHA40T65AProduct Features】

        High reliability, with reverse parallel fast recovery diode, Trench Field Stop Ⅱ technology (very short tail current, excellent Vcesat saturation voltage drop, low turn-off loss), and positive temperature coefficient.






【FHA40T65AApplication Examples】


        1、FHA40T65 applied in high-frequency vehicle-mounted AC220V inverter

               1.5KW model:Use 4 pieces of FHA40T65A in the full-bridge topology of the inverter

        High-frequency vehicle-mounted AC220V inverter IGBT application


        2、FHA40T65 applied in photovoltaic inverters, also known as solar inverters

               Micro-inverter:The 3KW model uses 8 pieces of FHA40T65A in the full-bridge topology

        Micro-inverter IGBT application


               Single-phase string inverter:Pre-stage boost (Single Boost)

Single-phase string inverter pre-stage boost IGBT application


               Single-phase string inverter:Post-stage inverter (Two-level)

        Single-phase string inverter post-stage inverter IGBT application



               Single-phase string inverter: Post-stage inverter (Heric)

        Single-phase string inverter post-stage inverter IGBT application




               Single-phase string inverter: Post-stage inverter (H6)

        Single-phase string inverter post-stage inverter IGBT application



        3、FHA40T65 applied inmotor drive

              Household appliances three-phase motor drive circuit diagram is the same as the above three-phase full-bridge topology

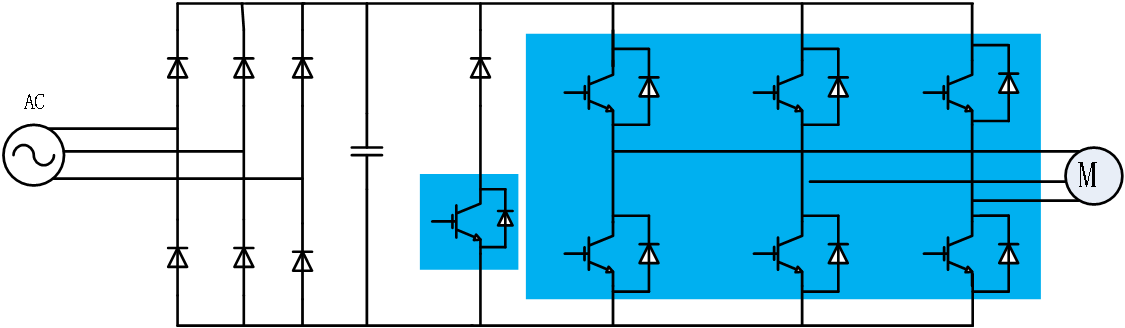

        Motor drive IGBT application


        4、FHA40T65 applied inwelding machine

              Four IGBTs form a full bridge, and some schemes will be paralleled according to power requirements to increase power, starting from multiples of two

        Motor drive IGBT application
