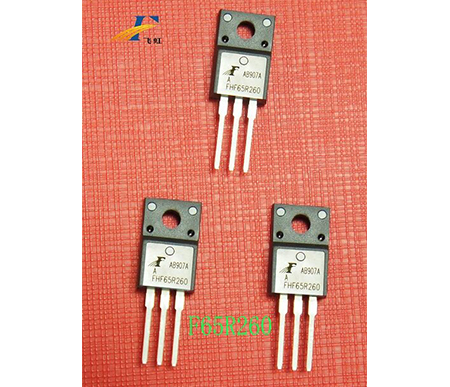

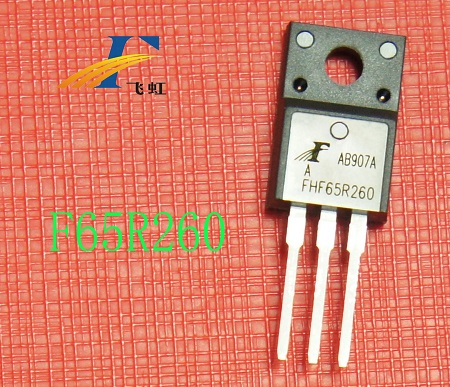

FHP65R260B/FHF65R260B/FHA65R260B

Release time：2019-10-16 15:01:34

Industry generic name：IPA60R360P7SWait

View Specifications >

  • Feihong 65R260A,N-channel Cool-MOS tube, mainly used in switching power supply. Other FET brands and models: IPA60R360P7S;

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package PIN Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω) With FRD Diode
Model Polarity Encapsulation form Foot arrangement Vgs=10v
(typ)		 Vgs=10v
(max)
FHP65R260B/FHF65R260B/FHA65R260B
N
TO-220 TO-220F TO-3PN/TO-247
GDS
30
2～4
14
650
260
310
NO

Product Details

【Product Introduction】

Feihong 65R260A, N-channel Cool-MOS tube, mainly used in switch power supply. It is comparable to other MOSFET brands and models: IPA60R360P7S;


【Product Features】

FHP65R260A/FHF65R260A, low on-resistance, less switching loss.






【Application Examples】


65R260A pin diagram


【Product Advantages】

High reliability, good consistency, low temperature rise
