FHP200N6F3A/FHS200N6F3A/FHD200N6F3A

Release time：2021-11-08 16:20:44

Industry generic name：IPP04N06N3Wait

View Specifications >

  • SGT process is adopted to obtain extremely low RDSON conduction internal resistance. Feihong products have wide BV voltage, fast switching capability and excellent short circuit resistance. TO-220 products are widely used in various DC/DC power converters, DC-AC inverters, AC-DC switching power supplies, UPS, energy storage power supplies, BLDC motor drives, etc. TO-263 products are widely used in BMS protection boards of 7-8 strings of lithium battery packs.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP200N6F3A/FHS200N6F3A/FHD200N6F3A
N
TO-220 TO-263
20
2～4
200
60
2.85
3.5

Product Details

【Fairhong 200N6F3A Product Description】

The SGT process is adopted to achieve an extremely low RDSON on-state resistance. Fairhong products have a wide BV voltage range, fast switching capability, and excellent short-circuit resistance performance. TO-220 products are widely used in various DC/DC power converters, DC-AC inverters, AC-DC switch-mode power supplies, UPS, energy storage power supplies, BLDC motor drivers, etc.; TO-263 products are widely used in the BMS protection boards of 7-8 series lithium battery packs.



【Fairhong 200N6F3AProduct Features】

100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), extremely low input capacitance




【Fairhong 200N6F3AApplication Examples】



(1) Outdoor energy storage power supply / solar controller / inverter / UPS, etc., for DC-DC boost structure in power supplies.

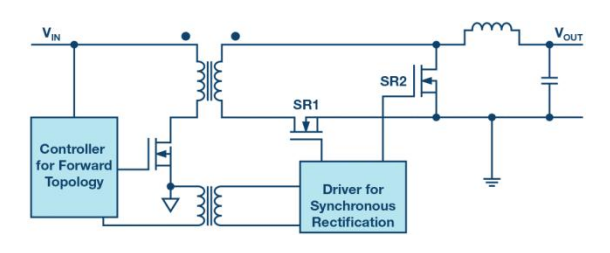

(2) SGT products can be used as SR synchronous rectifier tubes in communication power supplies of the DC-DC type or high-power power supplies of the AC-DC type. They have lower voltage drops and higher conversion efficiency, meeting energy-saving requirements.

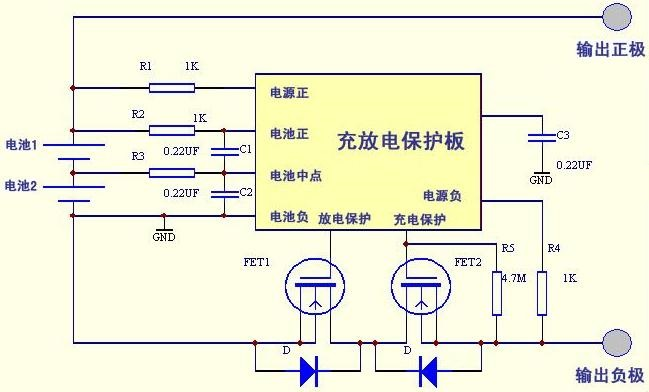

(3) TO-263 products are widely used in BMS protection boards of 7-8 series lithium battery packs.





Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GCS160N06 | HY3906P | IRFB7537PBF

prev：

FHP200N4F3A/FHS200N4F3A

next：

FHP170N1F4A/FHS170N1F4A/F...

back

FHP200N6F3A/FHS200N6F3A/FHD200N6F3AProduct Application Articles

Why choose Feihong

omni-directionalmarketing service system，15+YearFAEExperience technical support

Feihong Semiconductor focuses on R & D and production of power devices

MOS FET/IGBT Single Tube/Diode/Triode

Free sample：feihongbcok@gmail.com

WeChat sweep, direct communication!

SGTMOSFET product application articlesmore>
common application articlesmore>

  • FHP20N60W/FHF20N60W/FHA20N60W
    Free sample
    Join List

  • FHP100N08

    Feihong 100N08 low voltage field effect transistor (standard replacement models: STP75NF75, HY3208) ,N-channel trench process MOS transistor, suitable for DC-AC full bridge inverter.
    Free sample
    Join List

  • FHP540E/FHD540E
    Free sample
    Join List

  • FHP12N65D/FHF12N65D
    Free sample
    Join List

  • FHA260W
    Free sample
    Join List

  • FHP12N60D/FHF12N60D
    Free sample
    Join List

  • FHF65R420A

    Feihong 65R420, applied to the primary switch tube of 65W-PD fast charging power supply; Brand model of benchmarking Dongwei FET: OSG65R380FF; Alternative models of other MOS tube brands: TK12A60W (Toshiba), IPA60R600P7S, etc.
    Free sample
    Join List

  • FHP30N30W/FHF30N30W/FHA30N30W
    Free sample
    Join List

  • FHP100N07B/FHS100N07B

    Feihong 100N07 low voltage mos tube, N-channel trench process MOS tube, suitable for 48V/12 tube electric vehicle controller/12V input 250W inverter. Alternative field effect tube: HY1707, RU7088
    Free sample
    Join List

  • FHP60R190AF/FHF60R190AF/FHA60R190AF

    Feihong 60R190FA,N-channel Cool-MOS tube, mainly used in switching power supply. Other MOS tube brand alternative models: SPP20N60C3, etc.
    Free sample
    Join List

  • FHP840/FHF840

    The 840 is an N-channel enhanced high voltage power field effect transistor. The product is widely used in 300W inverter post-stage circuit, DC-AC power converter, DC-DC power converter, high-voltage H-bridge PMW motor drive.
    Free sample
    Join List

  • FHP80N08B

    Feihong 80N08B field effect transistor, N-channel trench process MOS tube, suitable for inverter pre-stage circuit. Other brand alternative models: HY3008, IRF3607
    Free sample
    Join List

  • FHP7N60/FHF7N60

    7N60 is an N-channel enhanced high voltage power MOS field effect transistor. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.
    Free sample
    Join List

  • FHF18N50W

    Feihong 18N50mos tube is an N-channel enhanced low-voltage power FET. This product is widely used in DC-AC power converters, DC-DC power converters, switching power supplies/UV lamp electronic ballasts.
    Free sample
    Join List

  • FHP65R580B/FHF65R580B/FHD65R580B
    Free sample
    Join List

  • FHN70N04LA

    Feihong 70N04LA,Trench N-Chanel MOSFET PDFN5 × 6-8L packaged products have the characteristics of small RDS(ON) and good EAS performance. PDFN5 × 6-8L packaged products are widely used in various switch applications, BMS, and DC motor drives (vacuum cleaners/sweepers/electric tools). Other mos tube brand alternative models: ZM042N04N, AON6236, VS4610AP.
    Free sample
    Join List

  • FHP16N65A/FHF16N65A
    Free sample
    Join List

  • FHP730B

    Feihong 730 is an N-channel enhanced high voltage power FET. This product is mainly used in 150W/220V square wave output inverter circuit, DC-AC power converter, DC-DC power converter, high voltage H bridge PMW motor drive. Can replace other field effect tube brand model: 6N40, 7N40, IRF730B;
    Free sample
    Join List

  • FHP150N04A
    Free sample
    Join List

  • FHP70N11V/FHD70N11V

    70N11V adopts advanced trench technology, combined with better process conditions and fine optimization of device structure, so that the product has very low on-resistance and optimized switching characteristics and reliability. The transistor is available in different package forms such as TO-252 and TO-220, and can be applied to various power switching circuits for system miniaturization and high efficiency. Products comply with JEDEC standards, in environmental compliance with RoHS and REACH standards, halogen-free requirements.
    Free sample
    Join List

  • FHP4310V

    success
    Free sample
    Join List

  • FHP13N50W/FHF13N50W

    13N50 is an N-channel enhanced high voltage power field effect transistor. This product is widely used in DC-AC power converters, DC-DC power converters, high-voltage H-bridge PMW motor drives, 500W inverter post-stage circuits/switching power supplies/UV lamp electronic ballasts.
    Free sample
    Join List

  • FHP15N60

    15N60 is an N-channel enhancement type high voltage power MOS field effect transistor. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.
    Free sample
    Join List

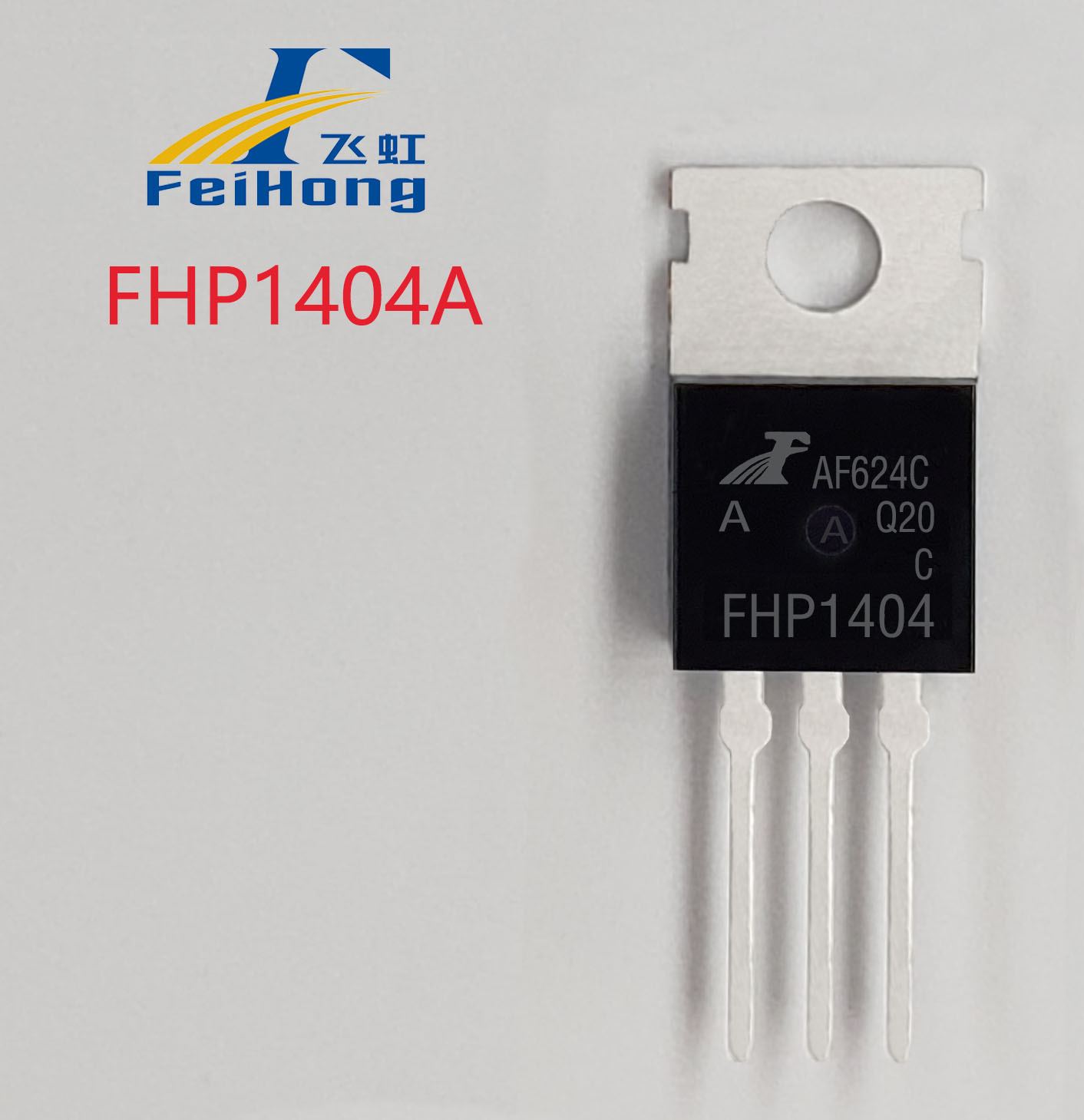

  • FHP1404
