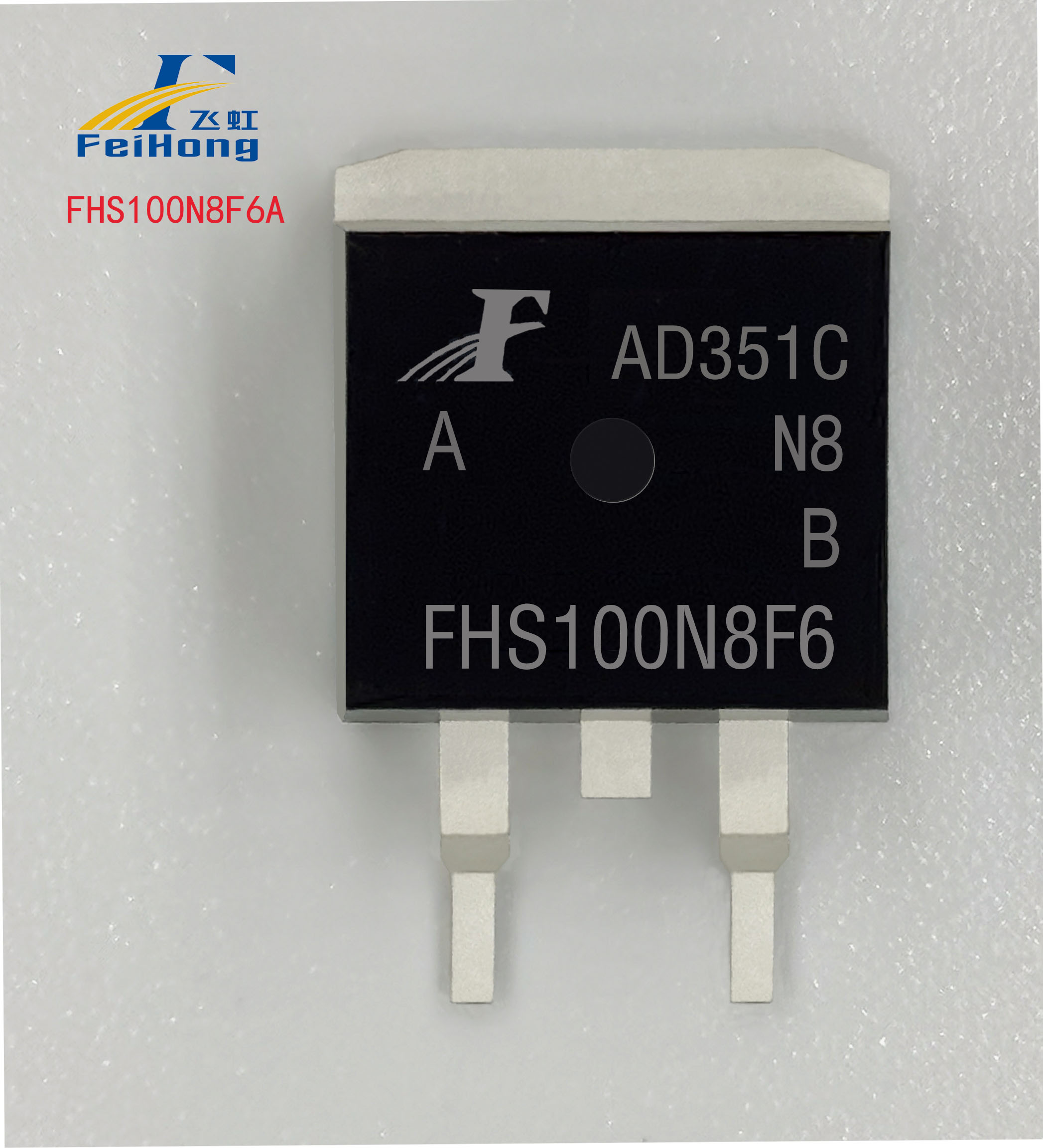

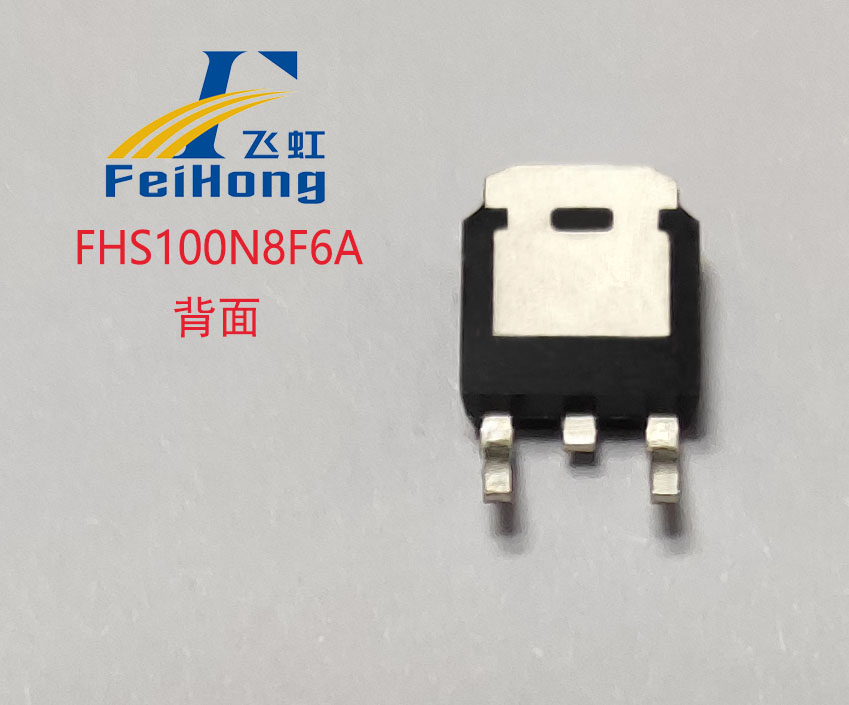

FHP100N8F6A/FHS100N8F6A/FHD100N8F6A

Release time：2021-09-30 17:28:35

Industry generic name：STP110N8F6Wait

View Specifications >

  • SGT process is adopted to obtain extremely low RDSON conduction internal resistance. Feihong products have wide BV voltage, fast switching capability and excellent short circuit resistance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switching power supplies, energy storage power supplies, garden tools and BLDC motor drives, etc. To -263 products are widely used in various types of lithium battery protection board. Alternative field effect tube: STP110N8F6

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP100N8F6A/FHS100N8F6A/FHD100N8F6A
N
TO-220 TO-263 TO-252
20
2～4
120
85
5.3
6.5

Product Details

【Feihong 100N8F6A Product Description】

Adopting the SGT process to achieve an extremely low RDSON on-state resistance, Feihong products have a wide BV voltage range, fast switching capability, and excellent short-circuit resistance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switch power supplies, energy storage power supplies, garden tools, and BLDC motor drives. TO-263 products are extensively used in various lithium battery protection boards.


【Feihong 100N8F6A Product Features】

Feihong 100N8F6A, 100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), and extremely low input capacitance.

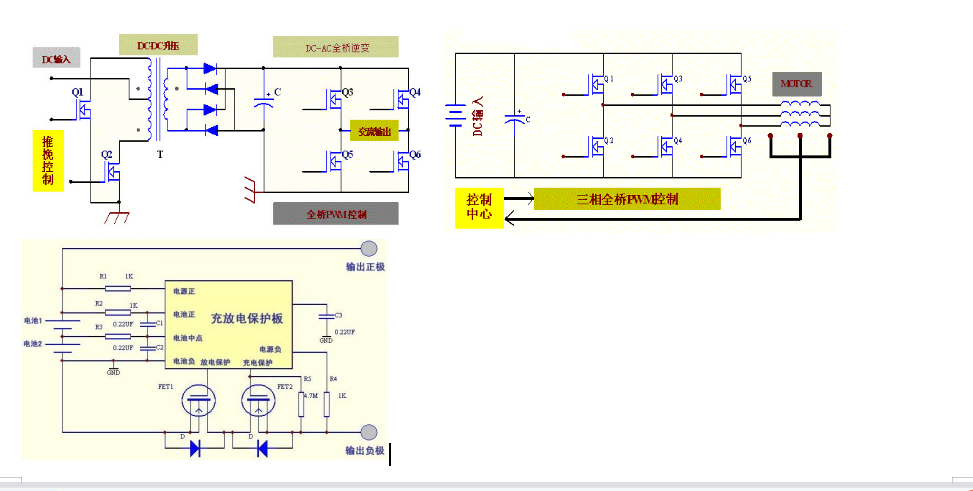

【Feihong 100N8F6A Application Examples】


(1) The DC-DC boost structure of energy storage power supplies/solar controllers/inverters uses a push-pull structure or half-bridge/full-bridge structure.

(2) Motor drives include: garden tools, electric tools, electric vehicle controllers, and industrial automation equipment.

(3) Lithium battery protection board: Based on the wide BV characteristics of SGT, our company's 85V SGT tube has a typical BVDSS value of 96V, which can be used in 13-17 series lithium battery protection boards for charging and discharging protection.
