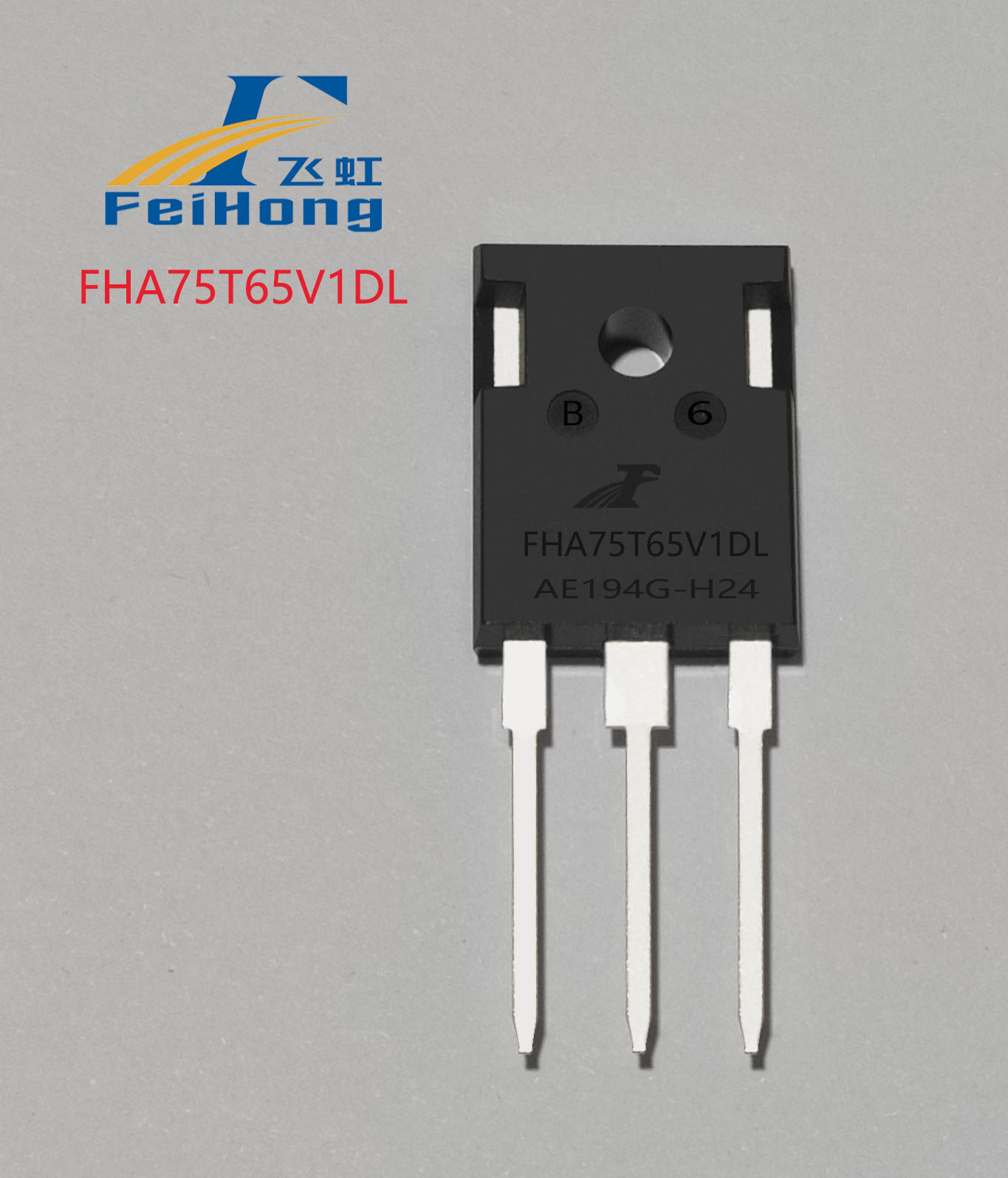

FHA75T65V1DL

Release time：2026-01-13 09:54:36

Industry generic name：JT075N065WED、SGT75T65SDM1P7、IKW75N65ET7Wait

View Specifications >

  • Designed with Feihong’s seventh-generation Trench Field Stop VII (TFS VII) technology, the FHA75T65V1DL features extremely low VCE(sat) and ultra-short tail current, providing strong support for end designers to optimize system efficiency. In addition, the product boasts excellent short-circuit withstand capability, offering ample margin for handling emergencies in the field of motor drives. It is widely applicable to solar inverters, UPS, frequency converters, welding machines, and all hard-switching circuits.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Model Package VGE(th)（V） IC-100℃（A） V(BR)CES
(V)		 VCESAT(V) VF(V) SwitchingFrequencyRange
型号 封装形式 typ max typ max
FHA75T65V1DL
TO-247
4.8~6.2
75
650
1.55
1.8
1.75
2.2
0~40KHz

Product Details

【Product Name】 FHA75T65V1DL

【Product Type of FHA75T65V1DL】Trench-FS IGBT

【Product Description of FHA75T65V1DL】This product is designed with Feihongs 7th - generation Trench Field Stop (Trench Field Stop VII) technology and process. It features extremely low VCE (sat) and ultra - short tail current, which provides strong support for terminal designers in optimizing system efficiency. In addition, the product has excellent short - circuit performance, offering sufficient margin for handling emergencies in the field of motor drives. This product is widely applicable to solar inverters, UPS, frequency converters, welding machines and all hard - switching applications.

【Alternative Market Reference Models of FHA75T65V1DL】  JT075N065WED, SGT75T65SDM1P7, IKW75N65ET7

【Product Features of FHA75T65V1DL】

(1) 7th - generation Trench Field Stop technology product

(2) Low saturation voltage drop VCEsat = 1.55V (typ.) @ IC = 75 A

(3) High - speed switching with low switching loss

(4) Maximum junction temperature Tjmax = 175°C

(5) High parameter consistency

(6) Positive temperature coefficient

(7) Integrated fast - recovery diode

(8) Lead - free, compliant with RoHS environmental requirements

【Product Applications of FHA75T65V1DL】:

(1) UPS

(2) Inverters

(3) Residential Energy Storage Systems

(4) Frequency Converters

(5) Welding Machines
