FHN70N04LA

Release time：2021-12-24 15:39:44

Industry generic name：ZM042N04N, AON6236, VS4610APWait

View Specifications >

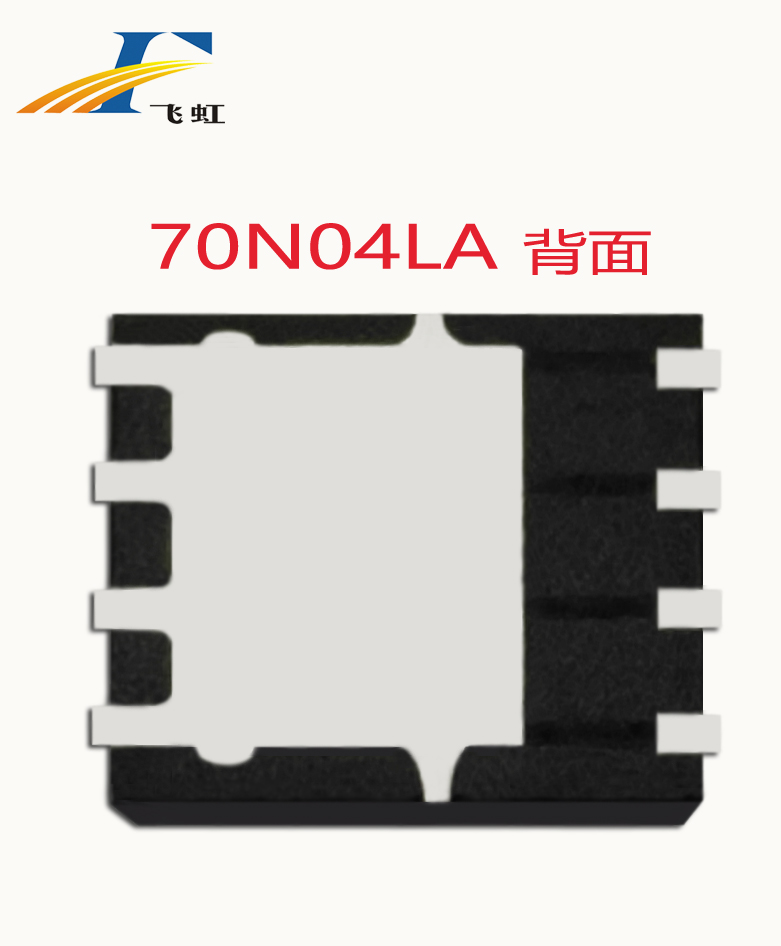

  • Feihong 70N04LA,Trench N-Chanel MOSFET PDFN5 × 6-8L packaged products have the characteristics of small RDS(ON) and good EAS performance. PDFN5 × 6-8L packaged products are widely used in various switch applications, BMS, and DC motor drives (vacuum cleaners/sweepers/electric tools). Other mos tube brand alternative models: ZM042N04N, AON6236, VS4610AP.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHN70N04LA
N
PDFN5×6
20
1~2.5
65
40
6.2
7.5
7.2
9

Product Details

【Flying虹70N04LA Product Description】

Flying虹70N04LA, Trench N-Channel MOSFET PDFN5×6-8L package product, with small RDS(ON), good EAS performance, etc., PDFN5×6-8L package products are widely used in various switch applications, BMS, and DC motor drives (vacuum cleaners/floor sweepers/electric tools). Other mos tube brand alternative models: ZM042N04N, AON6236, VS4610AP.



【Flying虹70N04LAProduct Features】

Flying虹70N04LA, 100% EAS test, 100% Rg test, 100% DVDS thermal resistance test, high consistency, high reliability, fast switching speed, low on-resistance RDS(on), low Crss.



【Flying虹70N04LAApplication Examples】


(5-7 series BMS lithium battery protection board)

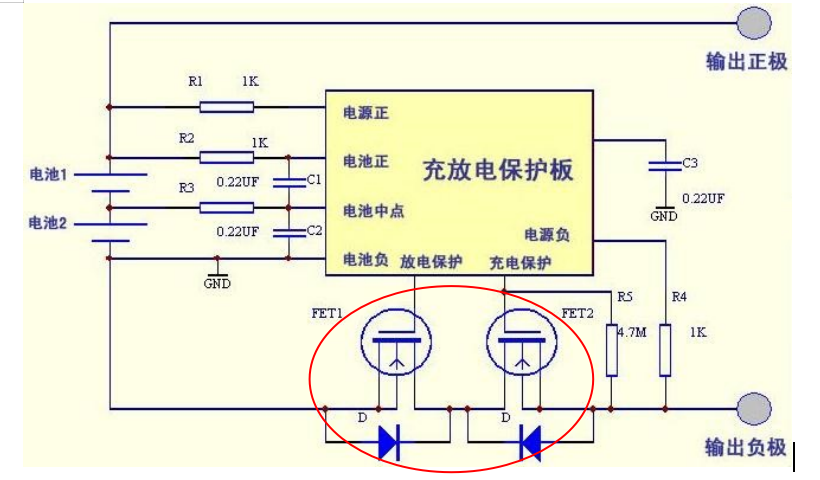

FHN70N04LA Lithium Battery Protection Board Circuit Application


DC motor drive(vacuum cleaner/floor sweeper/electric tool)

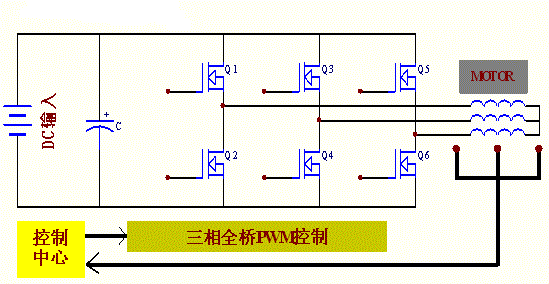

DC Motor Drive Application MOS Tube: 70N04LA
