Motor-driven processing and assembly equipment is also often required in the production of industrial automation equipment. In general, motor drive technology is an indispensable important component of industrial automation, directly affecting device performance, energy efficiency, reliability, and other indicators.

The quality of the MOSFET directly affects such an important motor drive. Today, engineers from Feihong Semiconductor are standing at the angle of the motor drive circuit of industrial automation equipment to share how electronic engineers can select high-quality domestic MOSFETs.

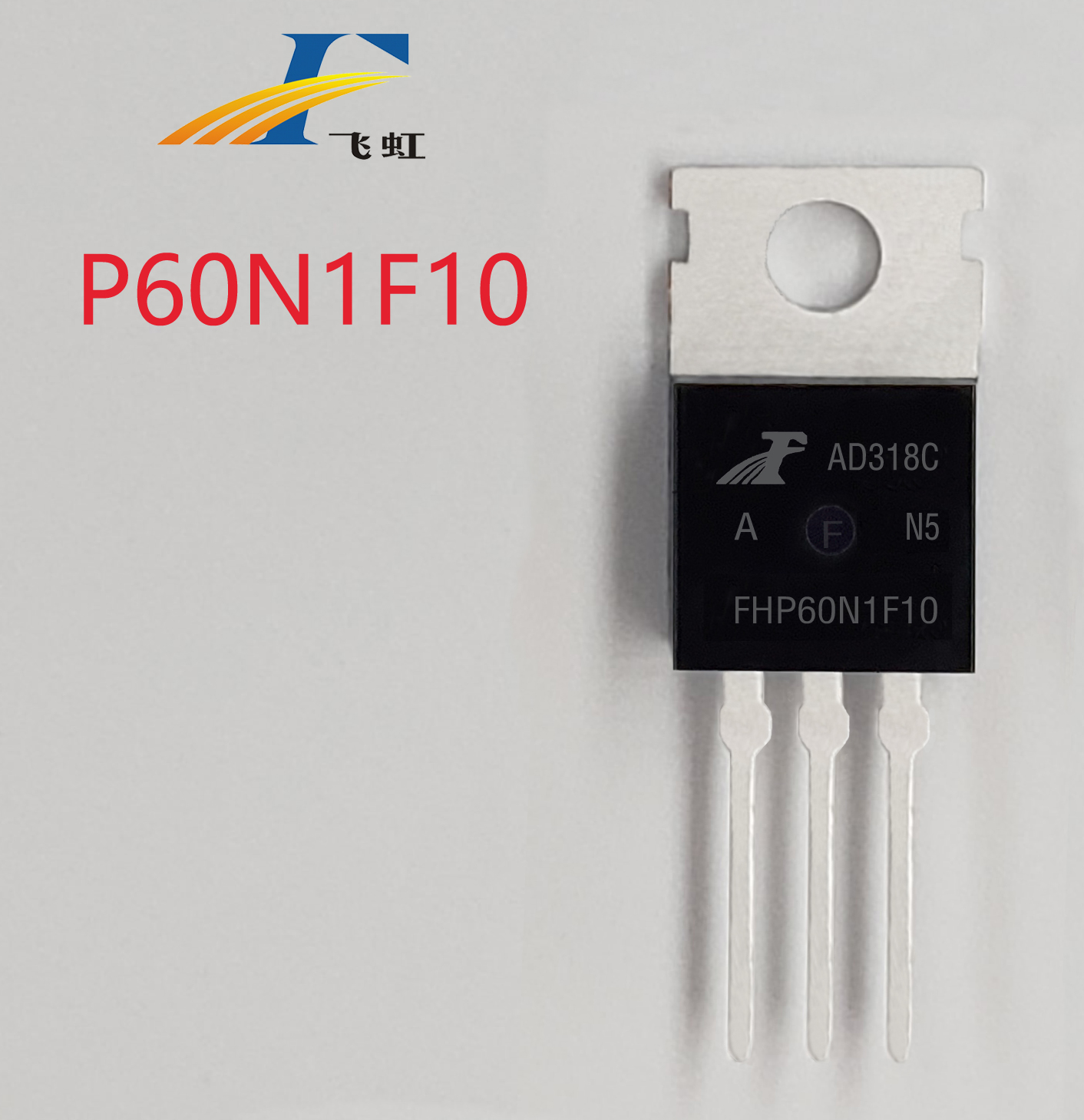

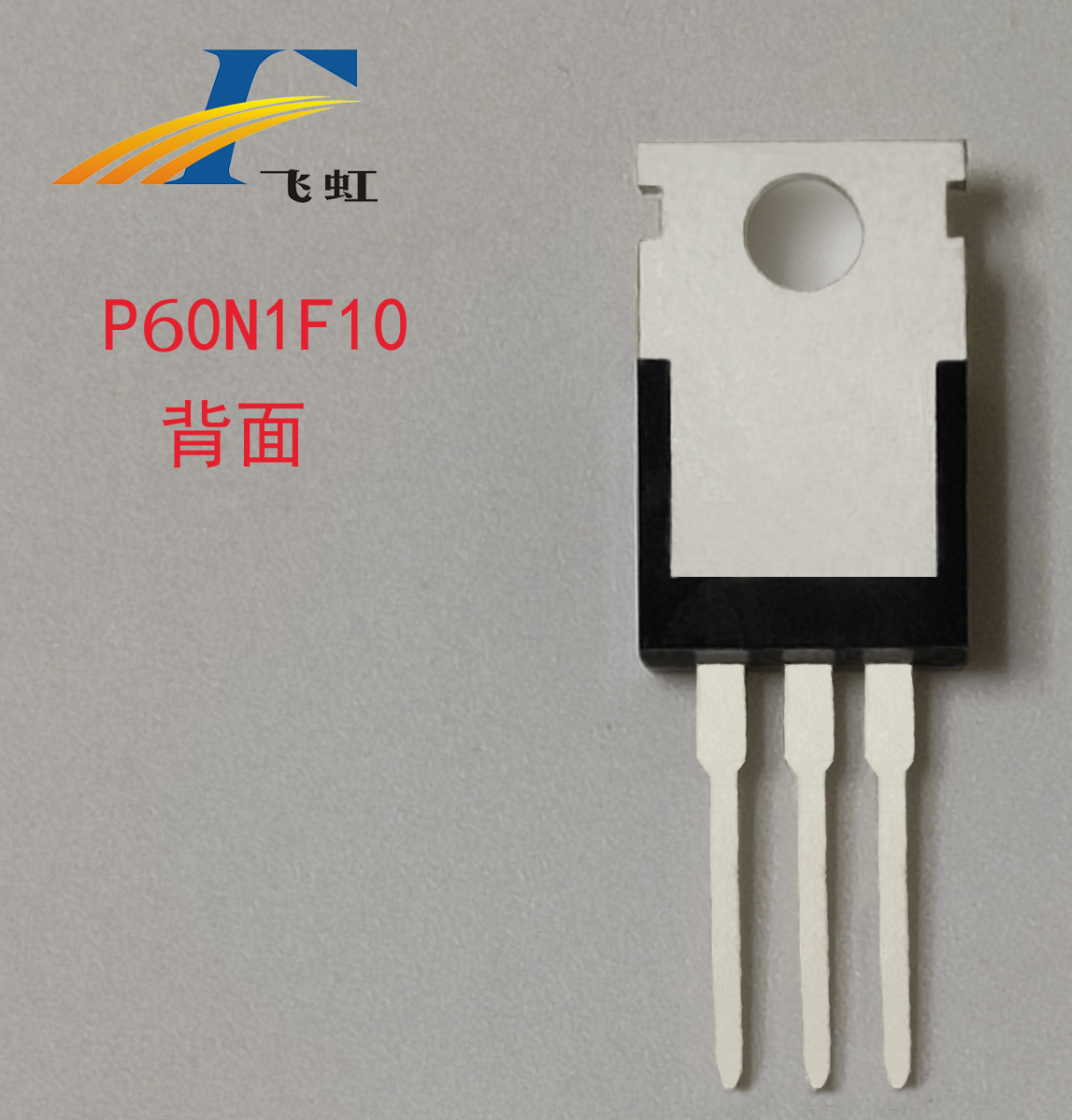

First, let's take a look at this pure domestic MOSFET model 60N1F10A which can be used in the motor drive circuit of industrial automation equipment as a replacement for models like IPP126N10N3G, STP80N10F, SVG10120NAT, etc.

Currently, in the domestic market, the 60N1F10A MOSFET model can perfectly replace low-voltage MOSFETs in BLDC motor drives, which has been recognized by many motor manufacturers. In addition to the basic parameters of 60A and 100V, it also has excellent product features:

1. 100% tested with Rg

2. 100% tested with avalanche test

3. 100% tested with thermal resistance

4. Extremely low input capacitance

5. Low Crss (typical value 33 pF)

6. Fast switching speed

7. 100% DVDS tested

8. Extremely low FOM (RDSON*Qg)

Of course, apart from the excellent features of the product, the 60N1F10A can replace the low-voltage MOSFET models like IPP126N10N3G, STP80N10F, SVG10120NAT due to its excellent parameters:

1. Vgs (±V): 20; VGS (th): 2.0-4.0V;

2. ID (A): 60A; BVdss (V): 100V

3. Maximum pulse drain current (IDM): 240A

4. N-channel enhancement mode field effect transistor

5. TO-220 packaged products can be used in drive circuits

6. Reverse transfer capacitance: 10pF

7. Static on-resistance RDS(on) = 12mΩ(MAX) @VGS = 10 V, RDS(on) = 10.2mΩ(TYP) @VGS = 10 V

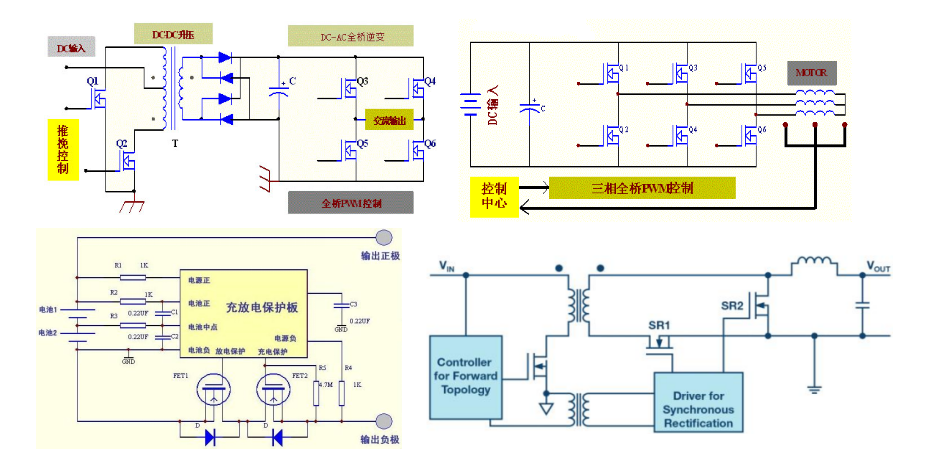

The 60N1F10A MOSFET model can be selected for use in new types of industrial automation equipment such as industrial robots, industrial control systems, and machine vision systems.

Feihong Semiconductor provides professional products and one-stop services for power devices to electronic manufacturers, always starting from user needs.

Its good manufacturing process and parameter performance make it better compatible with industrial automation equipment, ensuring product reliability.

The rapid iteration of the domestic market and the improvement in product quality make it very important to choose the right model. Feihong Semiconductor's MOSFETs have been widely applied in power circuits, smart home appliances, new energy electronics fields: such as automotive electronics, electric vehicles, smart audio, household appliances, LED lighting, chargers, computer power supplies, and other industries, providing high-quality products and supporting services for domestic electronic product manufacturers. In addition to providing free samples, we can also customize MOSFET products according to customer requirements. Simply search for "Feihong Semiconductor" on Baidu to find us, and our free sample hotline is 400-831-6077.
