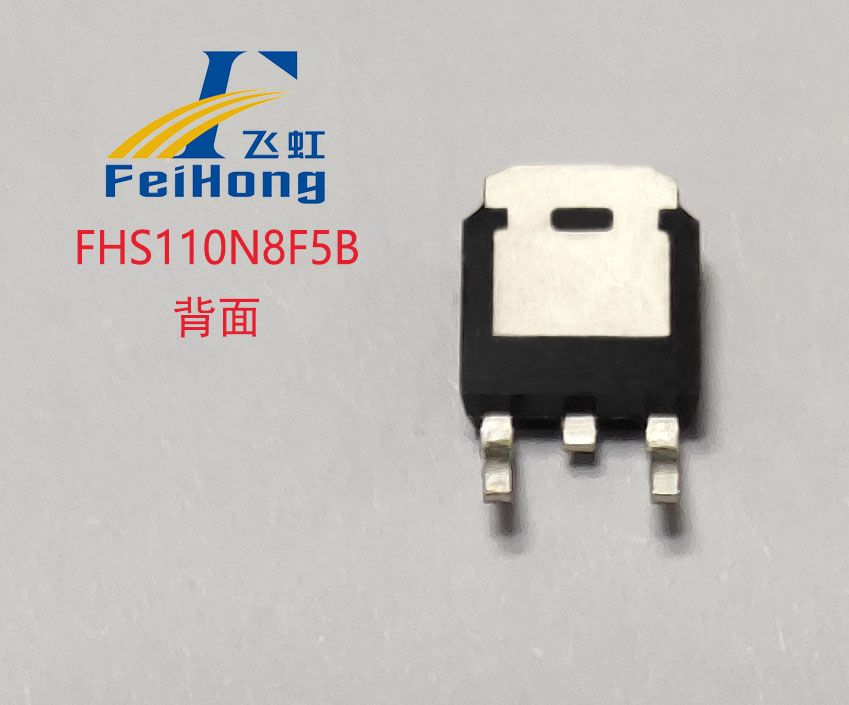

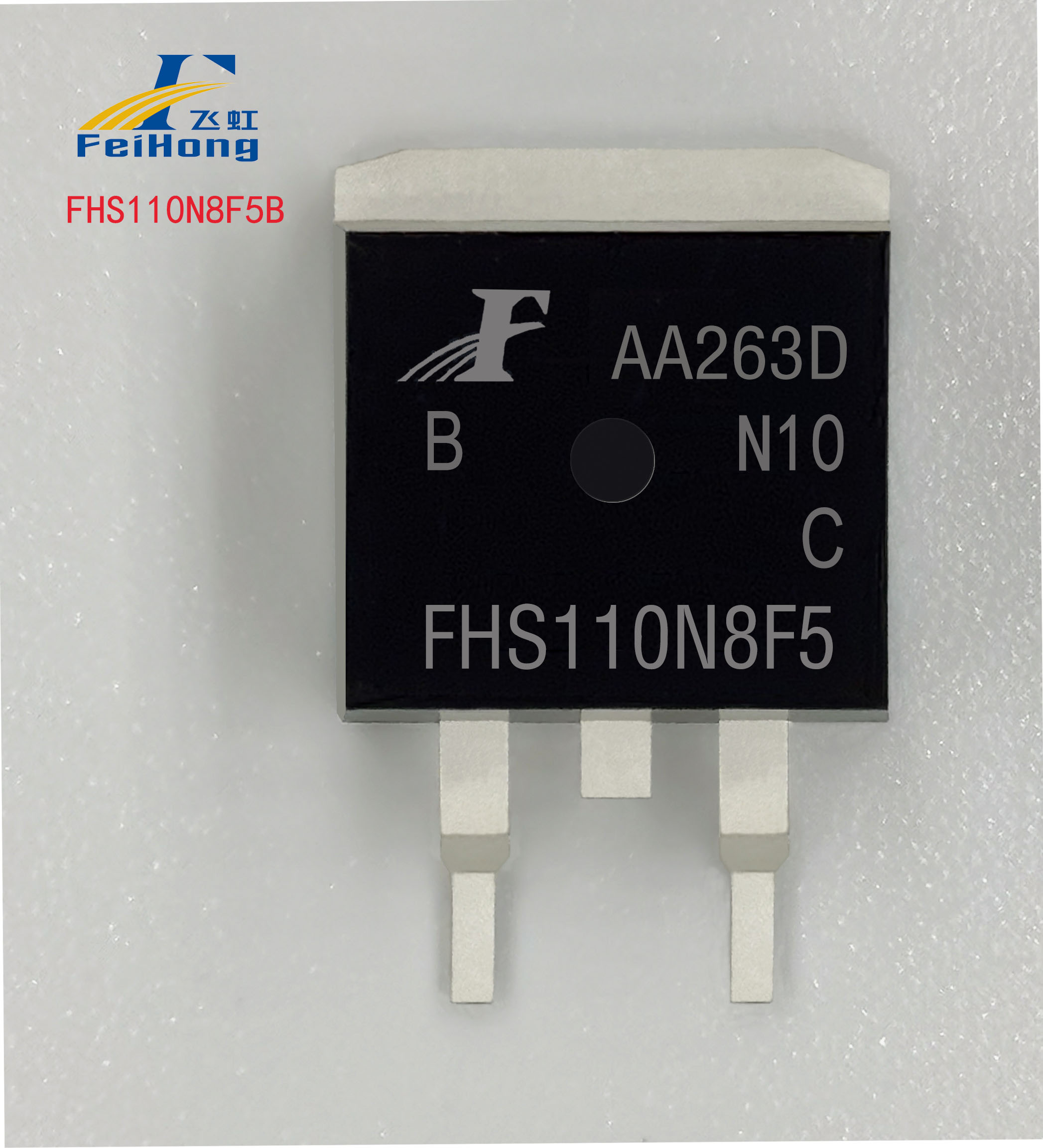

FHP110N8F5B/FHS110N8F5B/FHD110N8F5B/FHU110N8F5B/FHU110N8F5B

Release time：2021-09-30 17:37:17

Industry generic name：SVG095R0NT, IPP052N08N5Wait

View Specifications >

  • SGT process is adopted to obtain extremely low RDSON conduction internal resistance. Feihong products have wide BV voltage, fast switching capability and excellent short circuit resistance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switching power supplies, energy storage power supplies, garden tools and BLDC motor drives, etc. To -263 products are widely used in various types of lithium battery protection board. Alternative field effect tube: SVG095R0NT, IPP052N08N5

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP110N8F5B/FHS110N8F5B/FHD110N8F5B/FHU110N8F5B/FHU110N8F5B
N
TO-220 TO-263 TO-252 TO-251 TO-3PN/TO-247
20
2～4
147
85
4.4
5

Product Details

【Feihong 110N8F5B Product Description】

Feihong 110N8F5B, SGT MOSFET, adopts the SGT process to achieve an extremely low RDSON on-state resistance. Feihong products have a wide BV voltage range, fast switching capability, and excellent short-circuit resistance performance. TO-220 products are widely used in various DC/DC power supplies, DC-AC inverters, AC-DC switch power supplies, energy storage power supplies, garden tools, and BLDC motor drives, etc. TO-263 products are extensively used in various lithium battery protection boards; other MOSFET brand replacement models include SVG095R0NT, IPP052N08N5.


【Feihong 110N8F5B Product Features】

Feihong 110N8F5B, 100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), extremely low input capacitance.

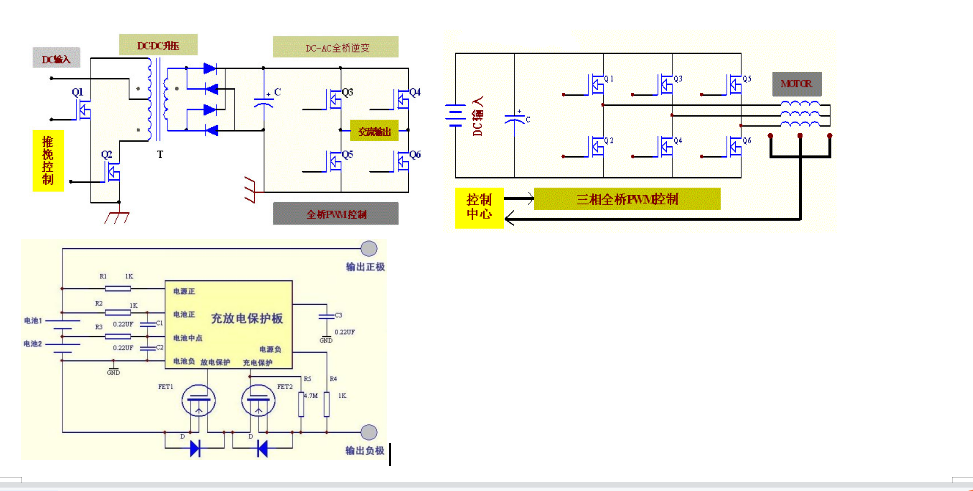

【Feihong 110N8F5BApplication Examples】


(1) The DC-DC boost structure in energy storage power supplies/solar controllers/inverters uses push-pull structures or half-bridge/full-bridge structures.

(2) Motor drives include: garden tools, electric tools, electric vehicle controllers, industrial automation equipment.

(3) Lithium battery protection board: based on the wide BV characteristics of SGT, our company's 85V SGT tube BVDSS typical value is 96V, which can be used in 13-17 series lithium battery protection boards for charging and discharging protection.
