FHP4310V

Release time：2025-03-29 14:26:08

Industry generic name：HY3410, IRFP4310PBFWait

View Specifications >

  • success

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP4310V
N
TO-220
20
3
147
100
5.1
7.0

Product Details

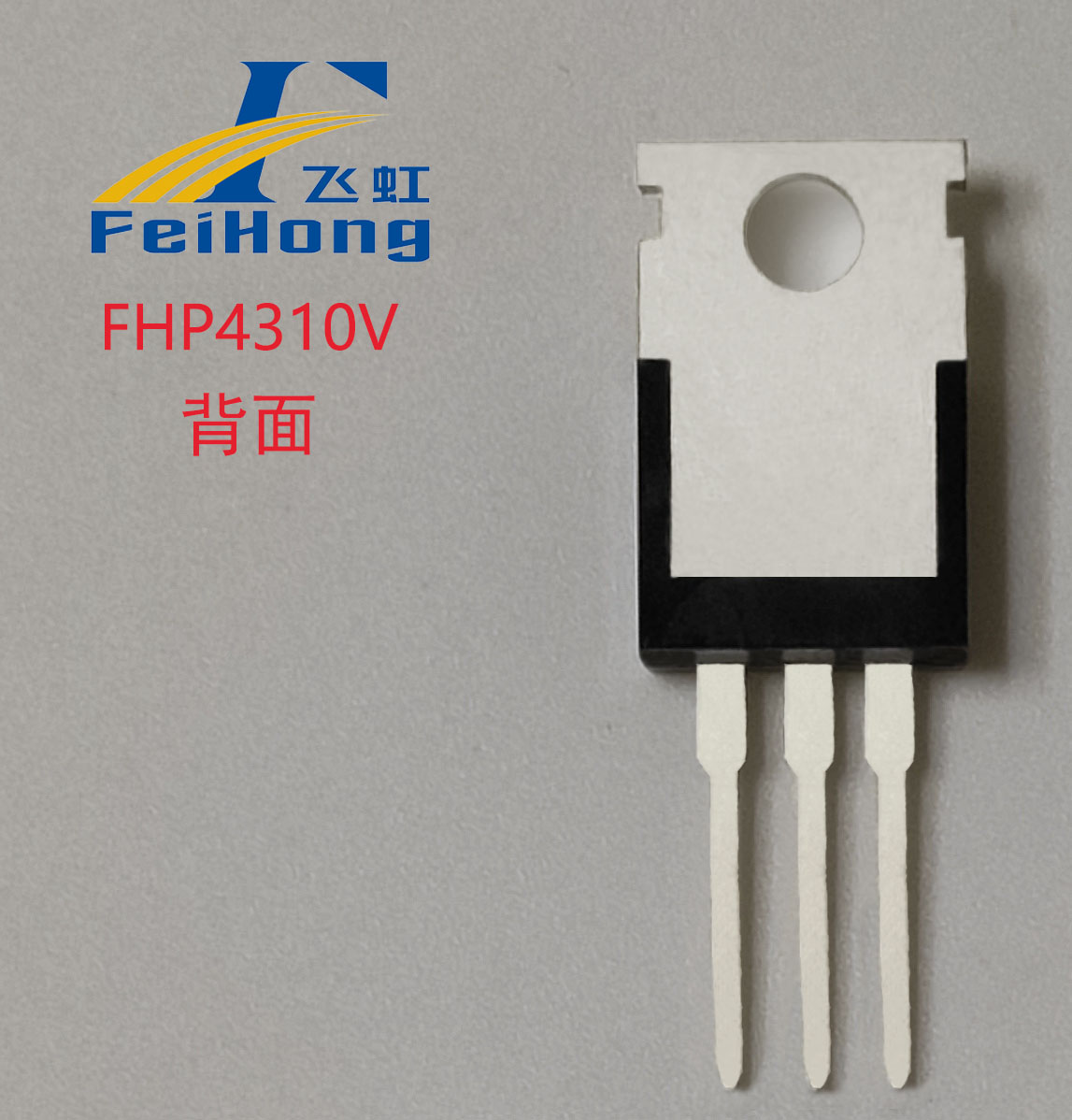

【Product Name】 FHP4310V

【FHP4310V Product Type】Trench Power MOSFET

【FHP4310V Product Description】 The FHP4310V adopts advanced trench technology combined with optimized process conditions and device structure refinement to achieve extremely low on-resistance while optimizing switching characteristics and reliability. This transistor provides a TO-220 package form, suitable for UPS, inverters, motor drive control, and various high-frequency hard-switching applications. The product complies with JEDEC standards and meets RoHS and REACH environmental regulations as well as the no-halogen requirement.

【FHP4310V Replaceable Market Models】HY3410   IRFP4310PBF

Compared with HY3410 and IRFP4310PBF, it has lower on-resistance, lower conduction loss, and stronger load capacity.

【FHP4310V Product Features】

(1) 100% UIS test.

(2) 100% Rg test.

(3) 100% DVDS thermal resistance test.

(4) By adopting the unique trench process and combining excellent packaging BOM materials, the product has higher reliability, high avalanche tolerance, and strong impact resistance.

(5) Excellent FOM (RDS(on)*Qg).

(6) VTH can be provided with detailed classification services, and the product consistency is high.

【FHP4310V Application】:

(1) Audio power amplifier

(2) ups

(3) BLDC DC brushless motor controller, such as a 72V electric motorcycle controller

(4) DC-DC push-pull topology circuit in 24V powered DC-AC vehicle-borne high-frequency inverter

(5) DC-DC full-bridge topology circuit in 48V powered solar off-grid industrial frequency inverter.

(6) Home storage inverter integrated machine

(7) Synchronous rectification.


Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GSubstitute IXFK94N50P2

prev：

FHP180N08V

next： none back

FHP4310VProduct Application Articles

Why choose Feihong

omni-directionalmarketing service system，15+YearFAEExperience technical support

Feihong Semiconductor focuses on R & D and production of power devices

MOS FET/IGBT Single Tube/Diode/Triode

Free sample：feihongbcok@gmail.com

WeChat sweep, direct communication!

Trench MOSFET Product Application Articlemore>
related circuit solutionmore>

related product recommend

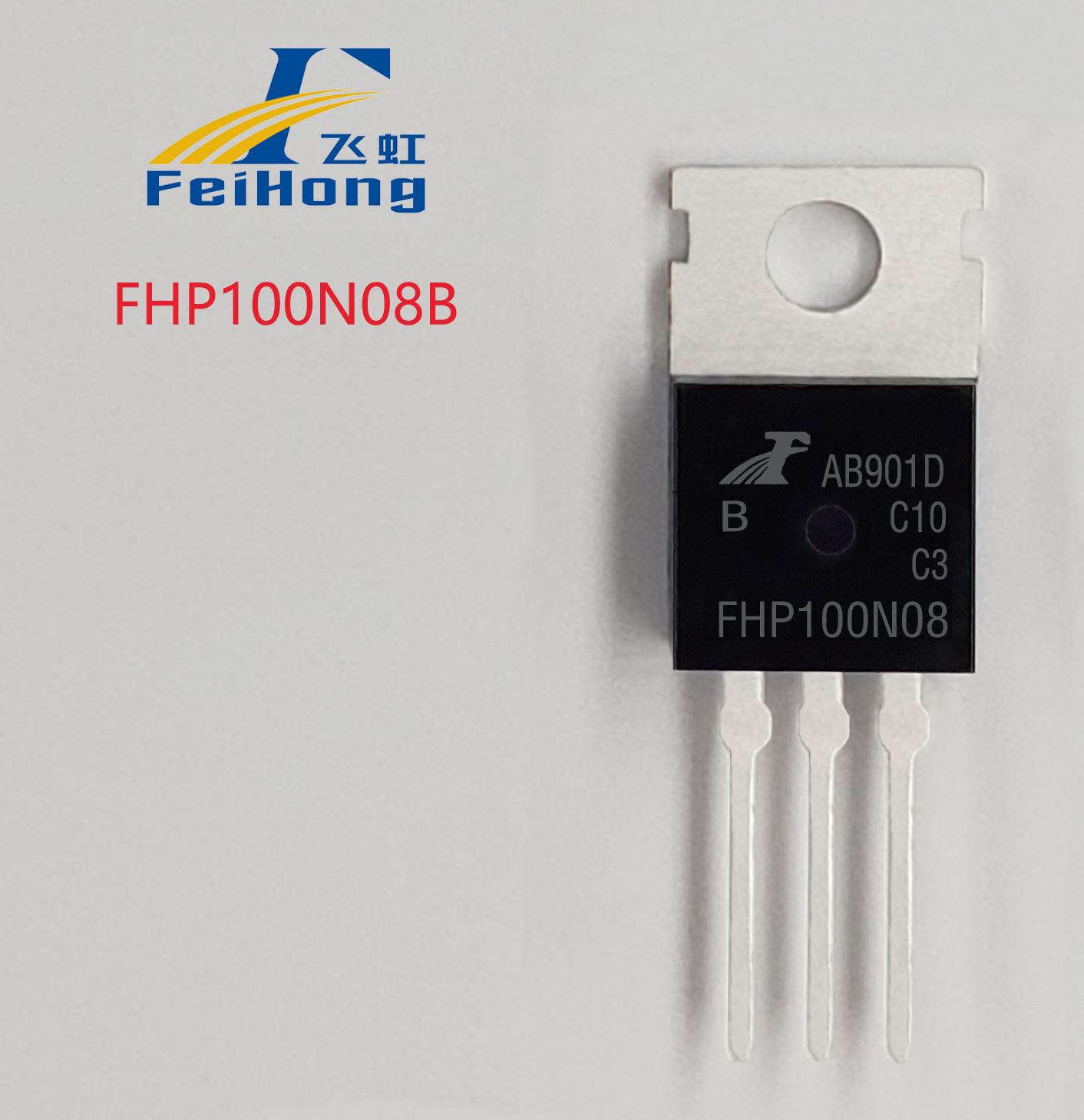

  • FHP100N08

    Feihong 100N08 low voltage field effect transistor (standard replacement models: STP75NF75, HY3208) ,N-channel trench process MOS transistor, suitable for DC-AC full bridge inverter.
    Free sample
    Join List

  • FHA24N90A

    Low conduction internal resistance, high dv/dt resistance, 100% EAS test (strong impact resistance),100% DVDS thermal resistance test (good heat dissipation performance),100% Rg test, high reliability (meeting industrial reliability requirements).
    Free sample
    Join List

  • FHP740W

    FHP740W FET, N-channel enhancement FET. The product is mainly used in 500W/AC220V square wave output inverter full bridge circuit, switching power supply, high voltage H bridge PMW motor drive. Can replace other brand models: 10N40, 11N40, IRF740.
    Free sample
    Join List

  • FHA064NA
    Free sample
    Join List

  • FHP45N20W

    In view of the high efficiency, low distortion and EMI characteristics of the power amplifier system, the FHP45N20W adopts the planar process VDMOS and optimizes Rdson, Qg, trr and other parameters on the premise of excellent impact resistance, thus being widely adapted to be used in Class-D power amplifier circuits, such as automobile power amplifier and DSP power amplifier. Alternative models: IRFB38N20D, etc.
    Free sample
    Join List

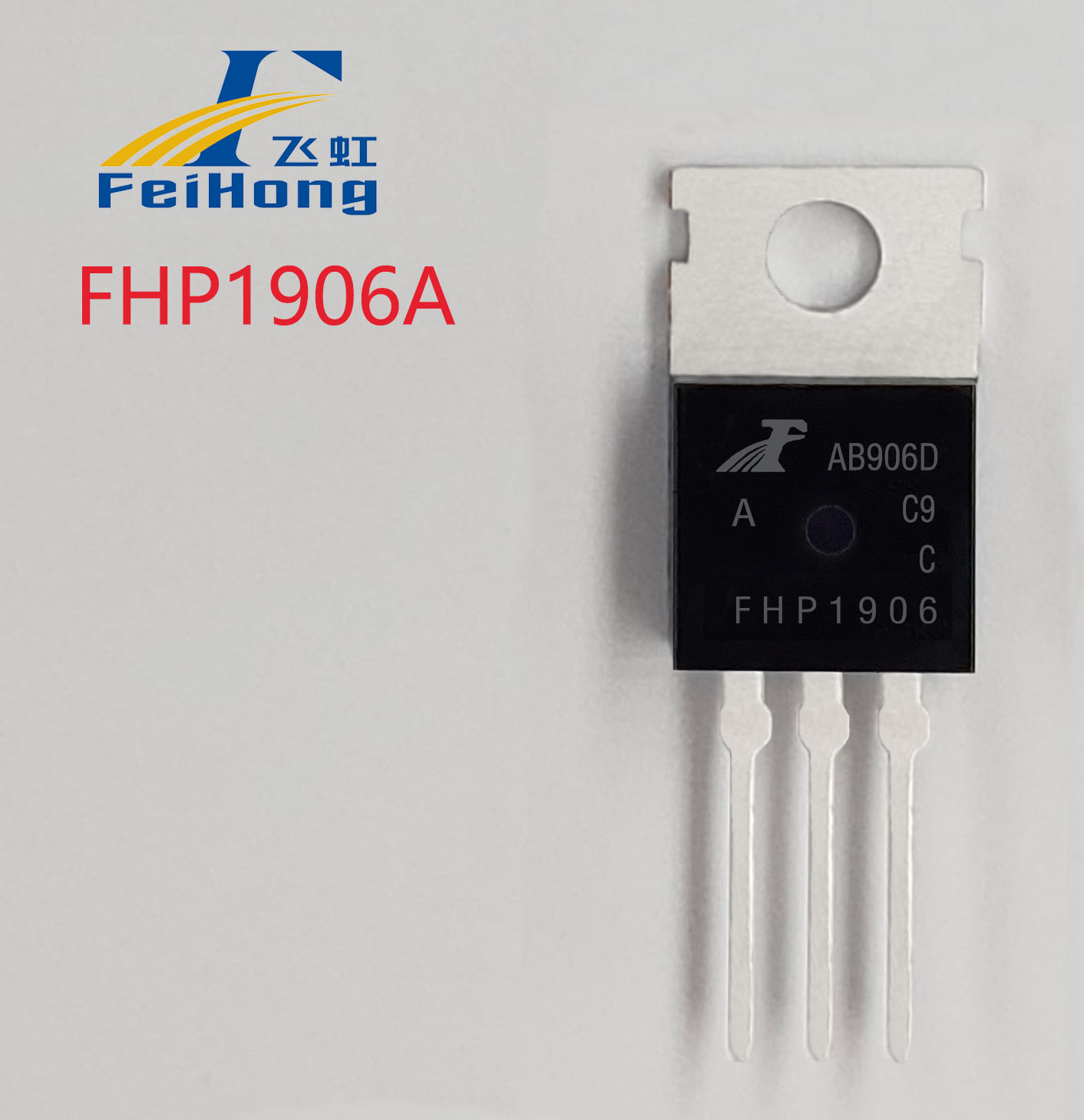

  • FHP1906A

    Feihong 1906A uses advanced trench technology to obtain excellent FOM(RDSon * Qg), which is widely used in inverters and energy storage power supplies. Other MOS tube brand alternative models: 1906, etc.
    Free sample
    Join List

  • FHD120N03B
    Free sample
    Join List

  • FHP150N04A
    Free sample
    Join List

  • FHP12N65D/FHF12N65D
    Free sample
    Join List

  • FHP80N07E/FHS80N07E/FHD80N07E
    Free sample
    Join List

  • FHP15N60

    15N60 is an N-channel enhancement type high voltage power MOS field effect transistor. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.
    Free sample
    Join List

  • FHP80N07L1
    Free sample
    Join List

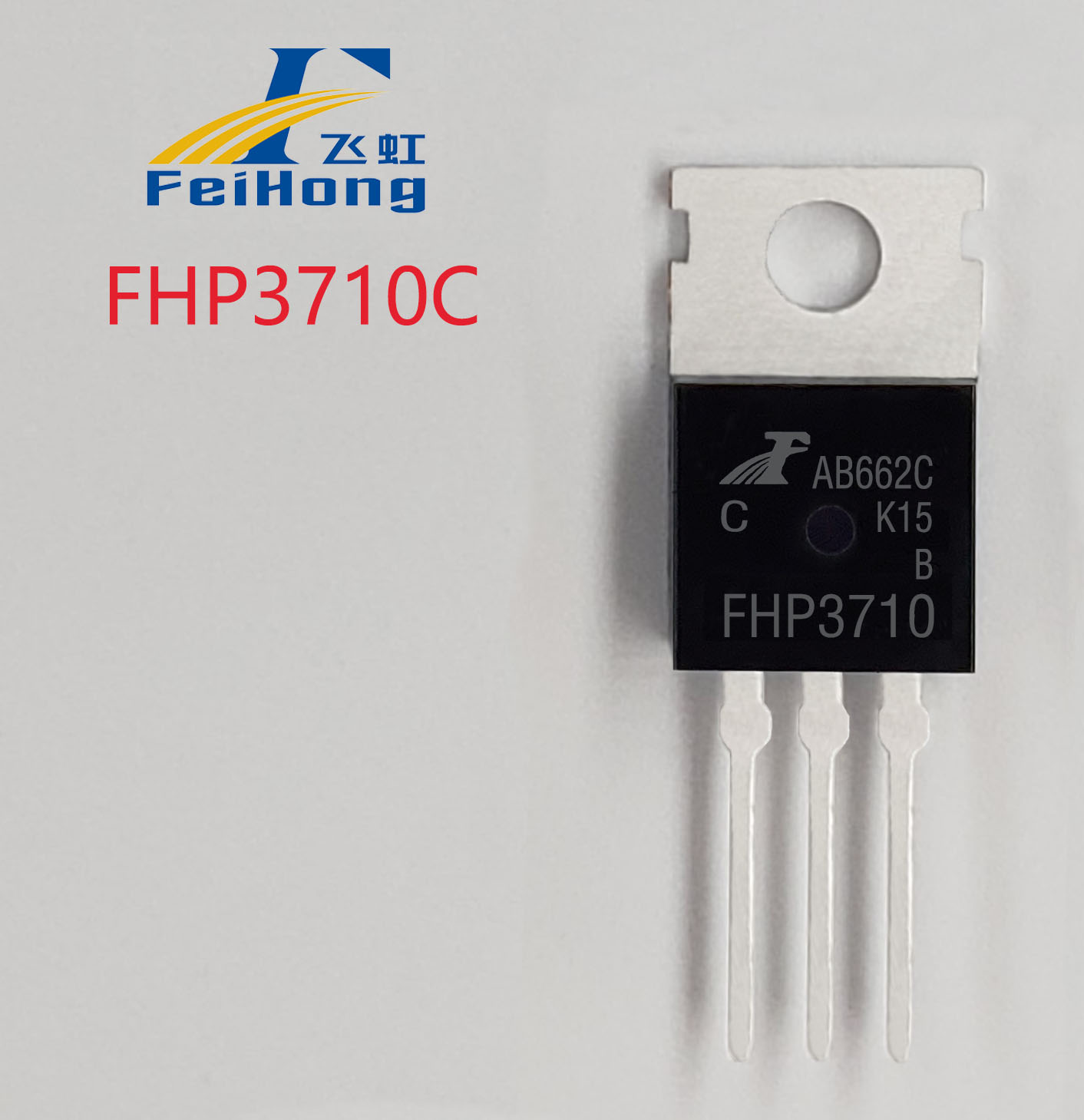

  • FHP3710C

    The FHP3710C adopts plane plane technology to obtain the characteristics of strong surge resistance, which can be used in audio amplifier, inverter, UPS and other application scenarios. Replacement field effect tube model: IRF3710PBF, etc.
    Free sample
    Join List

  • FHP10N70W/FHF10N70W
    Free sample
    Join List

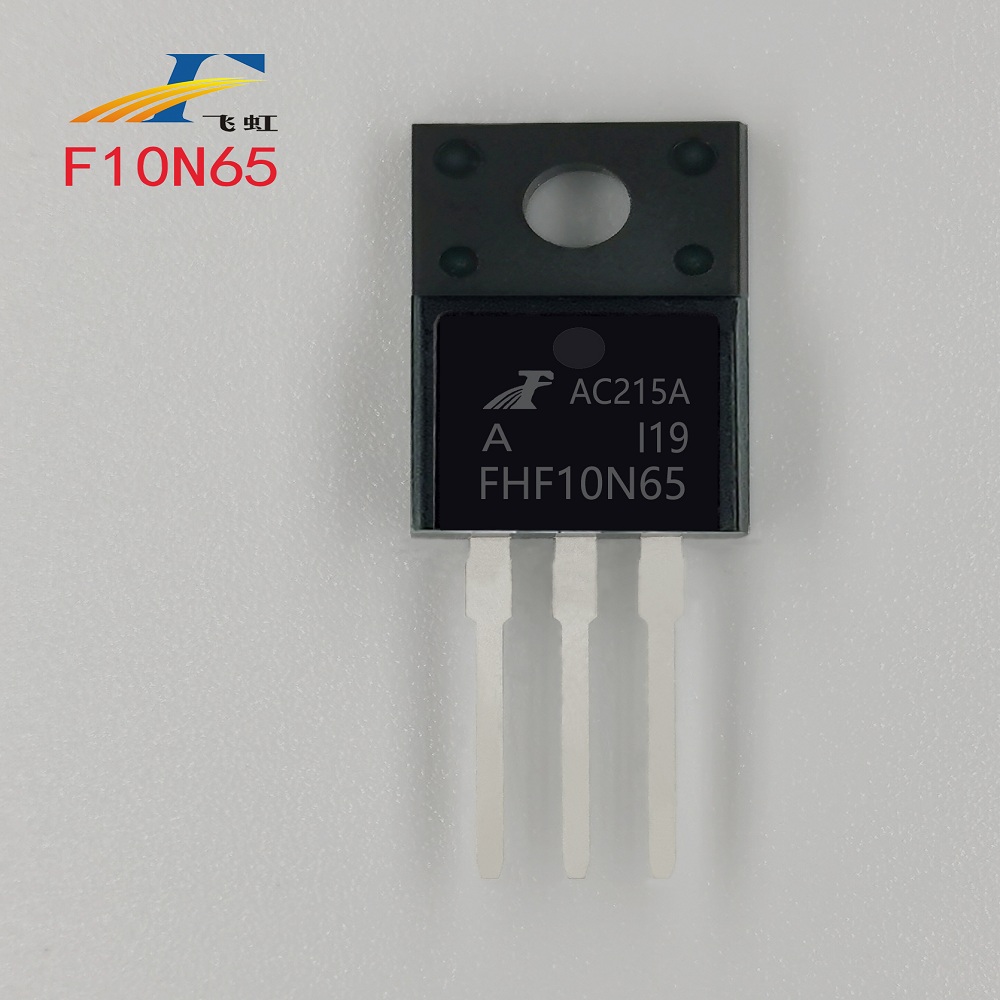

  • FHP10N65D/FHF10N65D

    10N65 is an N-channel enhancement type high voltage power MOS field effect transistor. The product is suitable for all kinds of switching power supply, 100W AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.
    Free sample
    Join List

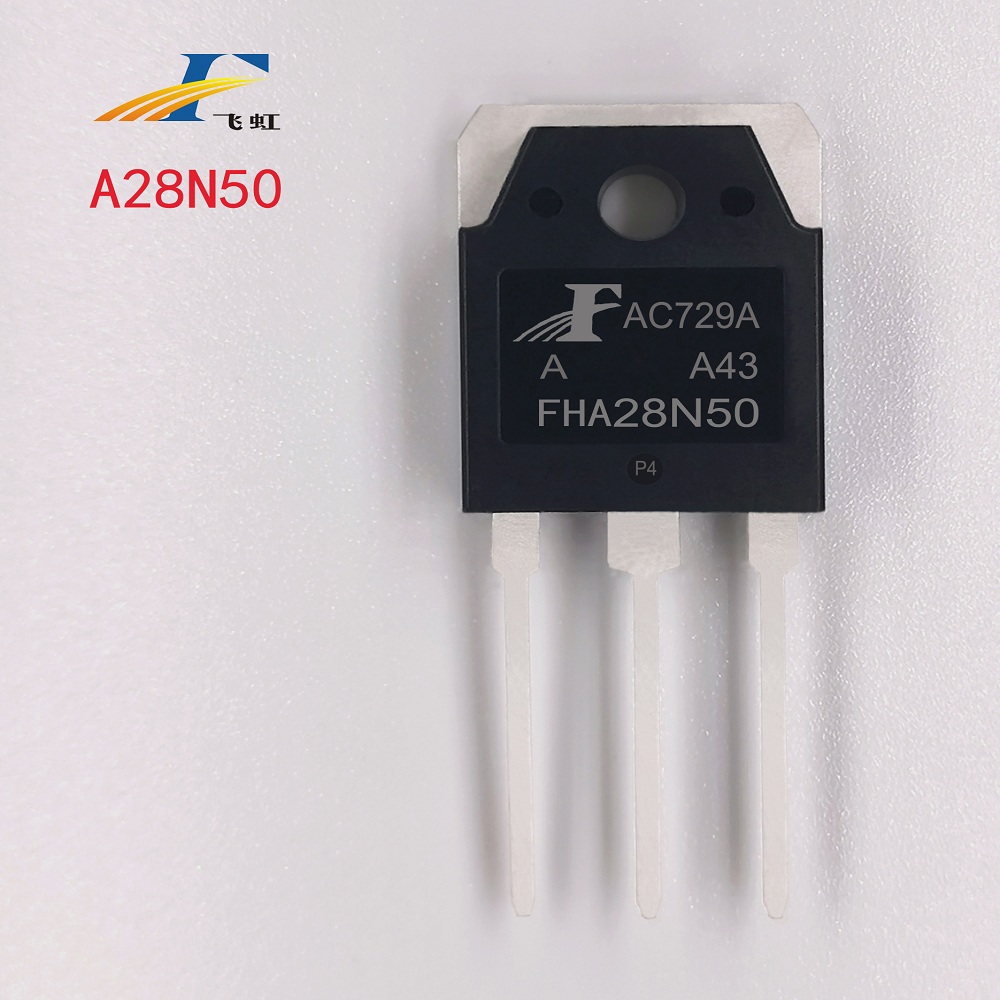

  • FHA28N50W
