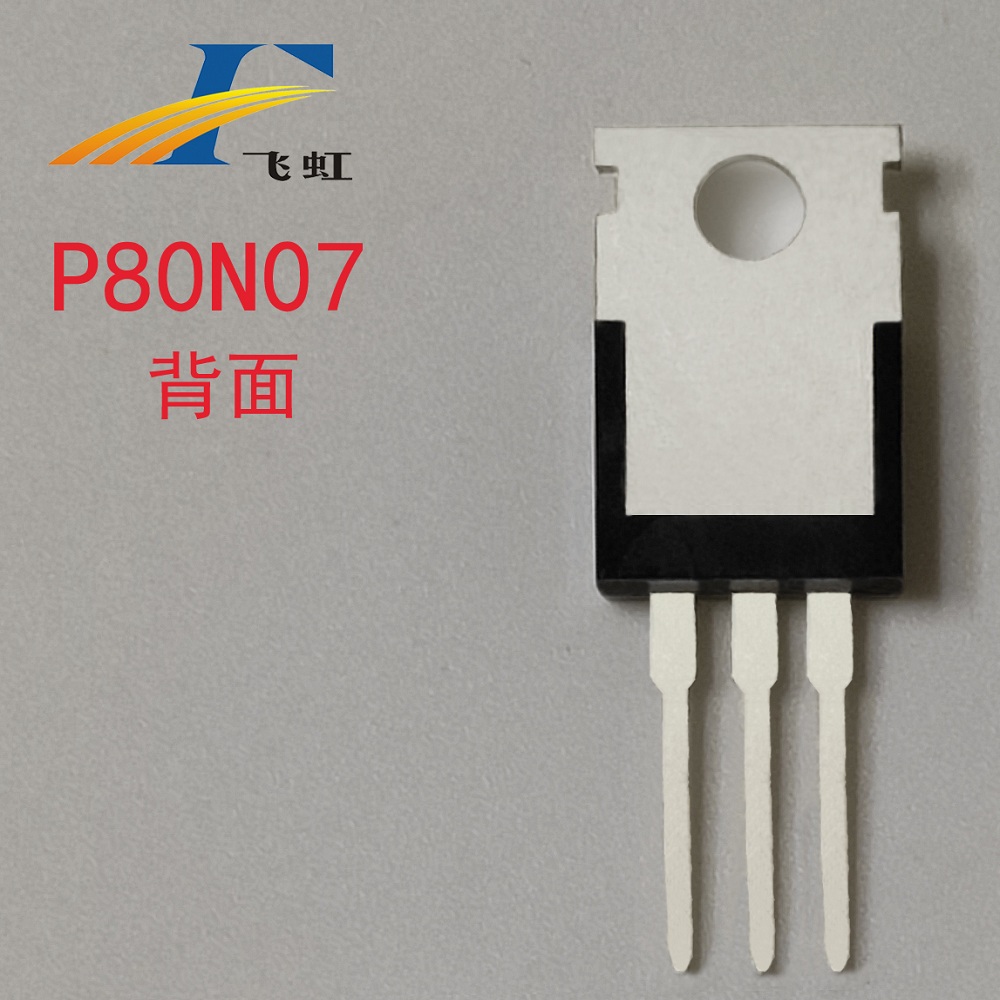

FHP80N07/FHS80N07/FHD80N07

Release time：2017-05-22 16:56:28

Industry generic name：STP80NF07F4, RU6888, HY1607Wait

View Specifications >

  • Feihong 80N07 low voltage mos tube (standard replacement models: STP80NF07F4, RU6888, HY1607) ,N-channel trench process MOS tube, suitable for 36V-48V/6 electric vehicle controller/lithium battery protection board. Alternative field effect tube: STP80NF07F4, RU6888, HY1607

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP80N07L
N
TO-220
20
1～2.5
80
60
8.4
11
9.5
13

Product Details

【Product Description of Feihong 80N07】

Feihong 80N07 low-voltage MOS tube, N-channel trench process MOS tube, suitable for electric vehicle controllers/battery protection boards with 36V-48V/6 tubes.Compared with other field-effect transistor brands/models:STP80NF07F4, RU6888, HY1607;


【Product Features of Feihong 80N07】

Feihong 80N07, low on-resistance, good impact resistance characteristics.

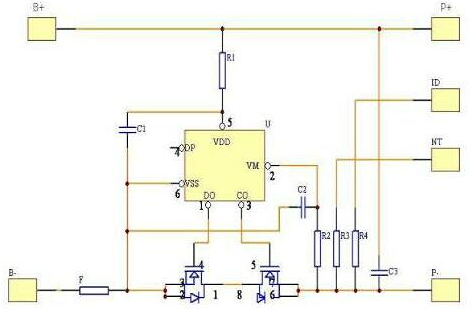

【Application Examples of Feihong 80N07】


FHP80N07 pin diagram
