Electric Vehicle Controller Solution:

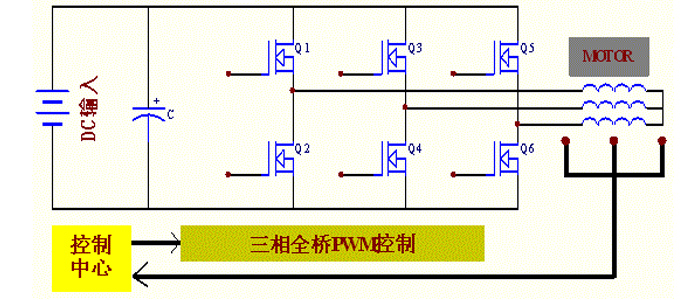

It is recommended to use a three-phase full bridge inverter circuit, and select the BVDSS of MOSFET according to the input voltage provided by the battery.The number of MOSFET tubes used in thethree-phase full bridgeinvertercan be divided into 6-tube, 9-tube, 12-tube, 15-tube, 18-tube, 24-tube, etc., based on the power of the electric vehicle controller.
You can refer to the table below to select the MOSFET:
Battery Supply Voltage
Number of MOSFETs Used in the Controller
Recommended Fei Hong Model
48V
6-tube
80N07
48V
9-tube, 12-tube
100N07
60V/64V
9-tube, 12-tube
80N08-3
60V/64V
12-tube, 15-tube, 18-tube
100N08-3
60V/64V
18-tube, 21-tube, 24-tube
140N08
72V
18-tube, 24-tube
4410
Electric Vehicle Charger Solution:
It is recommended to use a high-voltage MOSFET from Fei Hong as the switch tube Q, mainly including products such as 8N60, 10N60, 12N60, 15N60, 20N60, etc.
-
Associated Scheme Products
Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(mΩ) Model Polarity Encapsulation form Vgs=10v(typ) Vgs=10v(max) Vgs=4.5v(typ) Vgs=4.5v(max) Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(mΩ) Model Polarity Encapsulation form Vgs=10v(typ) Vgs=10v(max) FHP15N60 TO-220 TO-220F TO-3PN GDS 30 3-5 16 600 5 ，10 FHP10N60D/FHF10N60D N TO-220 TO-220F 30 2～4 10 600 0.67 0.8 FHP8N60B/FHF8N60B N TO-220 TO-220F 30 2～4 8 600 1 1.15 FHP12N60W/FHF12N60W N TO-220 TO-220F 30 2～4 12 600 0.49 0.65 FHP20N60B/FHF20N60B/FHA20N60B N TO-220 TO-220F TO-3PN/247 30 2～4 20 600 0.32 0.4 Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(mΩ) Model Polarity Encapsulation form Vgs=10v(typ) Vgs=10v(max) Vgs=4.5v(typ) Vgs=4.5v(max) FHP80N07L N TO-220 20 1～2.5 80 60 8.4 11 9.5 13 FHP80N08B/FHS80N08B N TO-220 TO-263 20 2～4 90 80 6.8 8 FHP100N07B/FHS100N07B N TO-220 TO-263 20 2～4 100 68 5.9 7.2 FHP100N08B/FHD100N08B N TO-220 TO-252 20 2～4 100 80 6 7.2 Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(mΩ) With FRD Diode Model Polarity Encapsulation form Vgs=10v(typ) Vgs=10v(max) Part Number Package VGE(th)（V） IC-100℃（A） BVCES（V） VCESAT(V) VF(V) Model Encapsulation form typ max typ Part Number Polarity Package PIN Ic(A) BVCEO(V) BVCBO(V) hFE Model Polarity Encapsulation form Foot arrangement min max Part Number Package PIN VRRM(V) VF(V) IR(uA) IF(A) junction temperatureTj(℃) Model Encapsulation form Foot position typ max max Single Whole Part Number Package PIN Iout(A) Vout（V） VI（V） Model Encapsulation form Foot arrangement min max Part Number Package peak reverse voltage Forward currentIF(AV)(A) Forward conduction voltage dropVF（V） reverse recoveryTrr（ns） Model Encapsulation form VRRM(V) Single chip Dual chip typ max typ max
