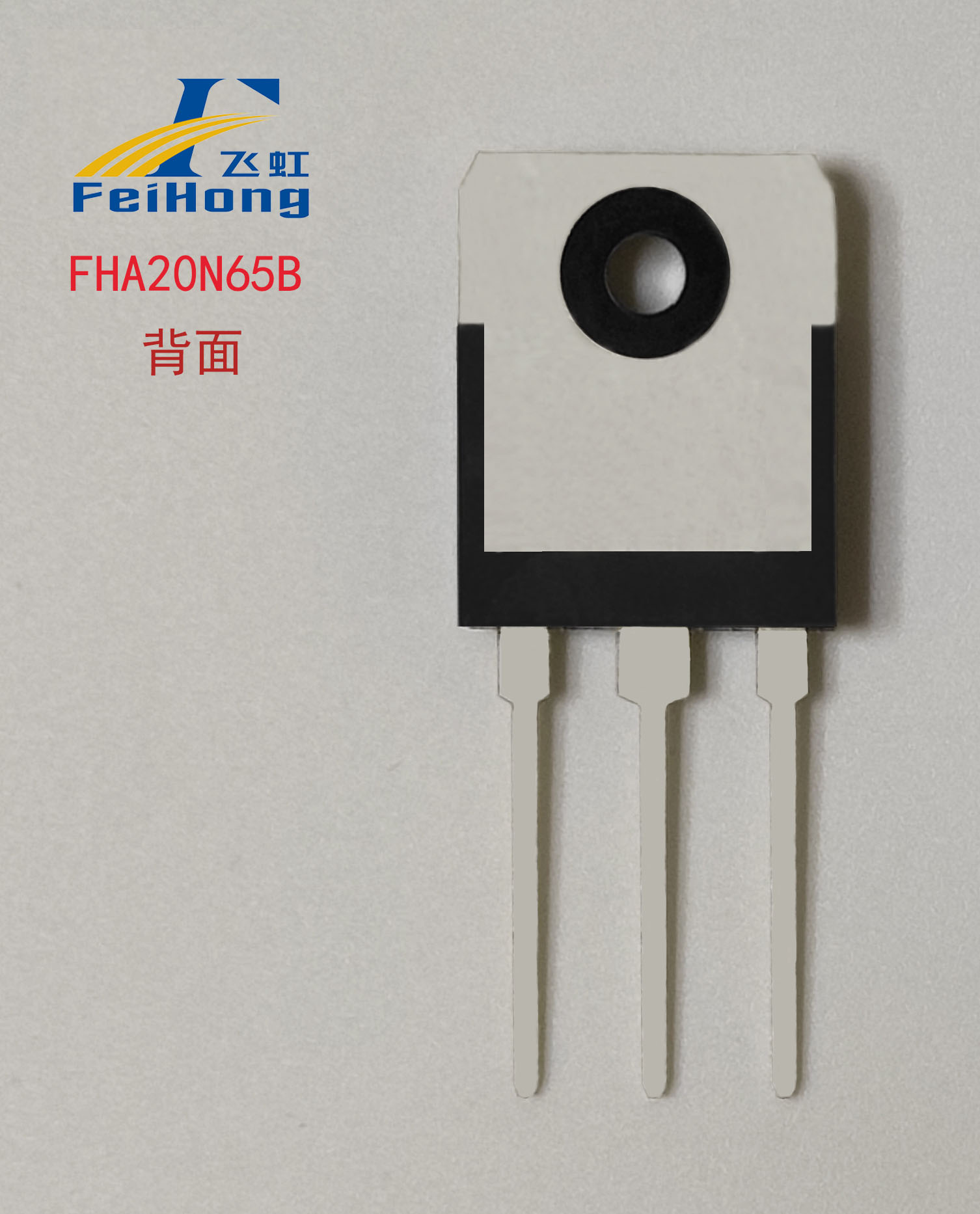

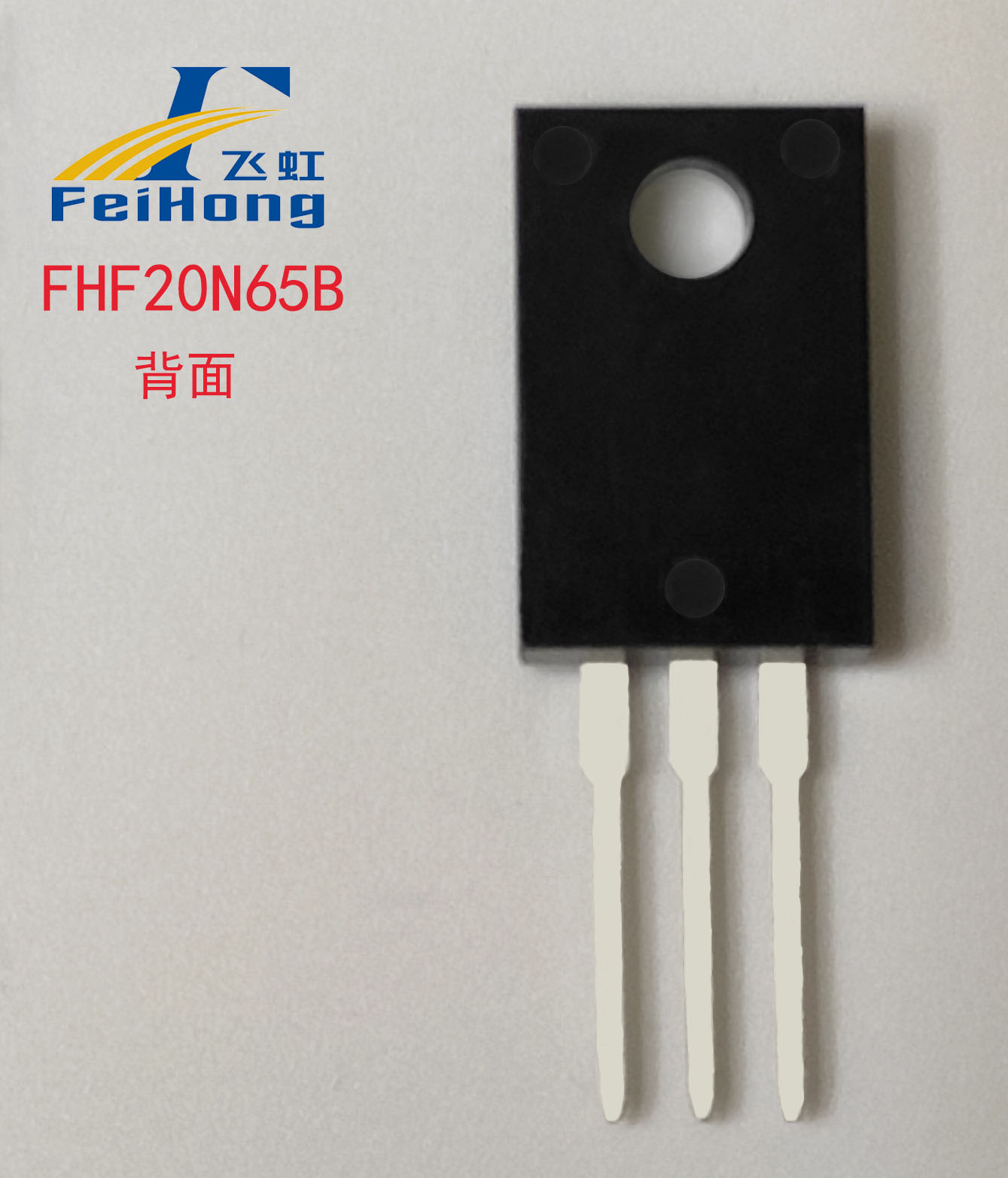

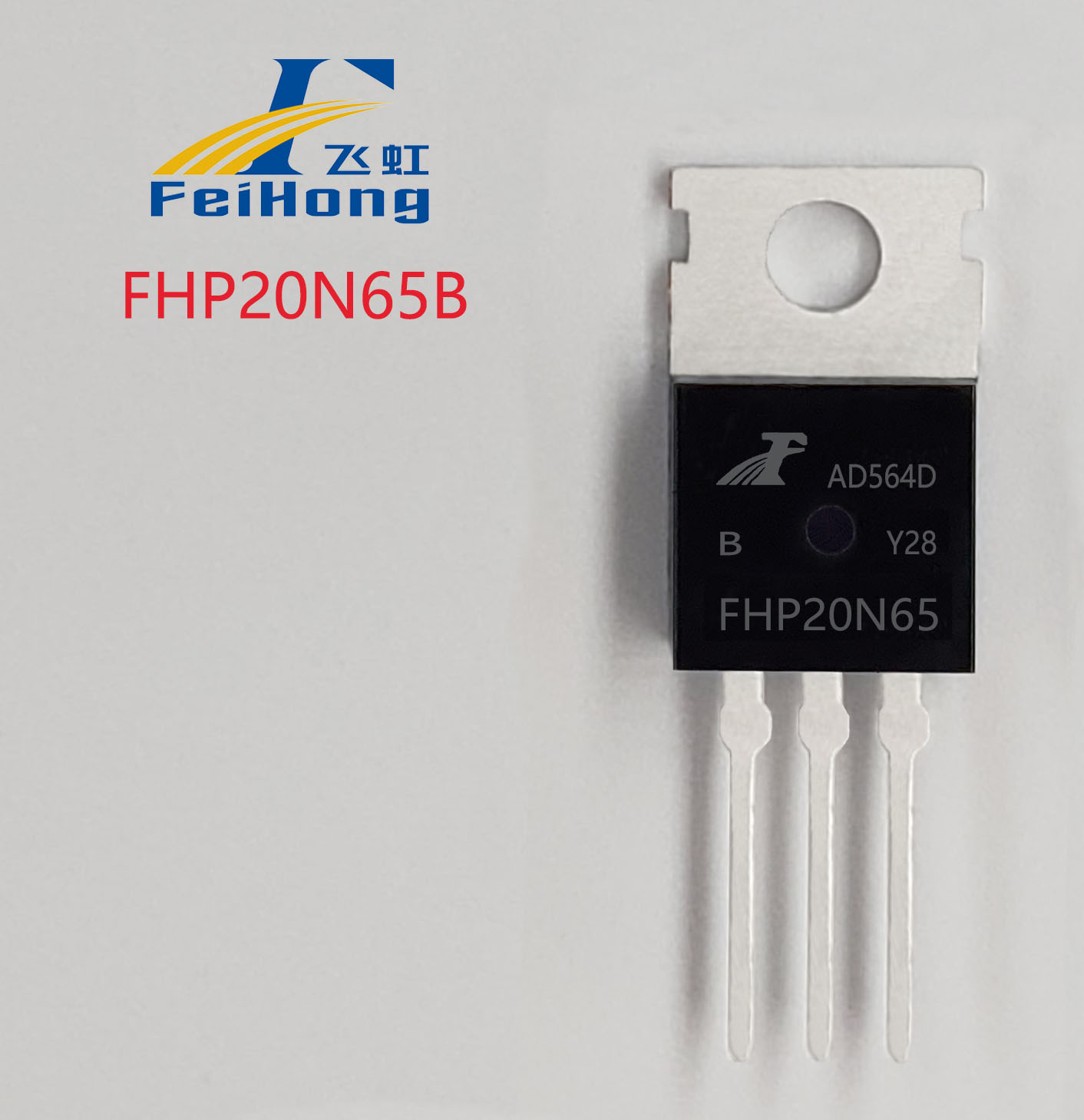

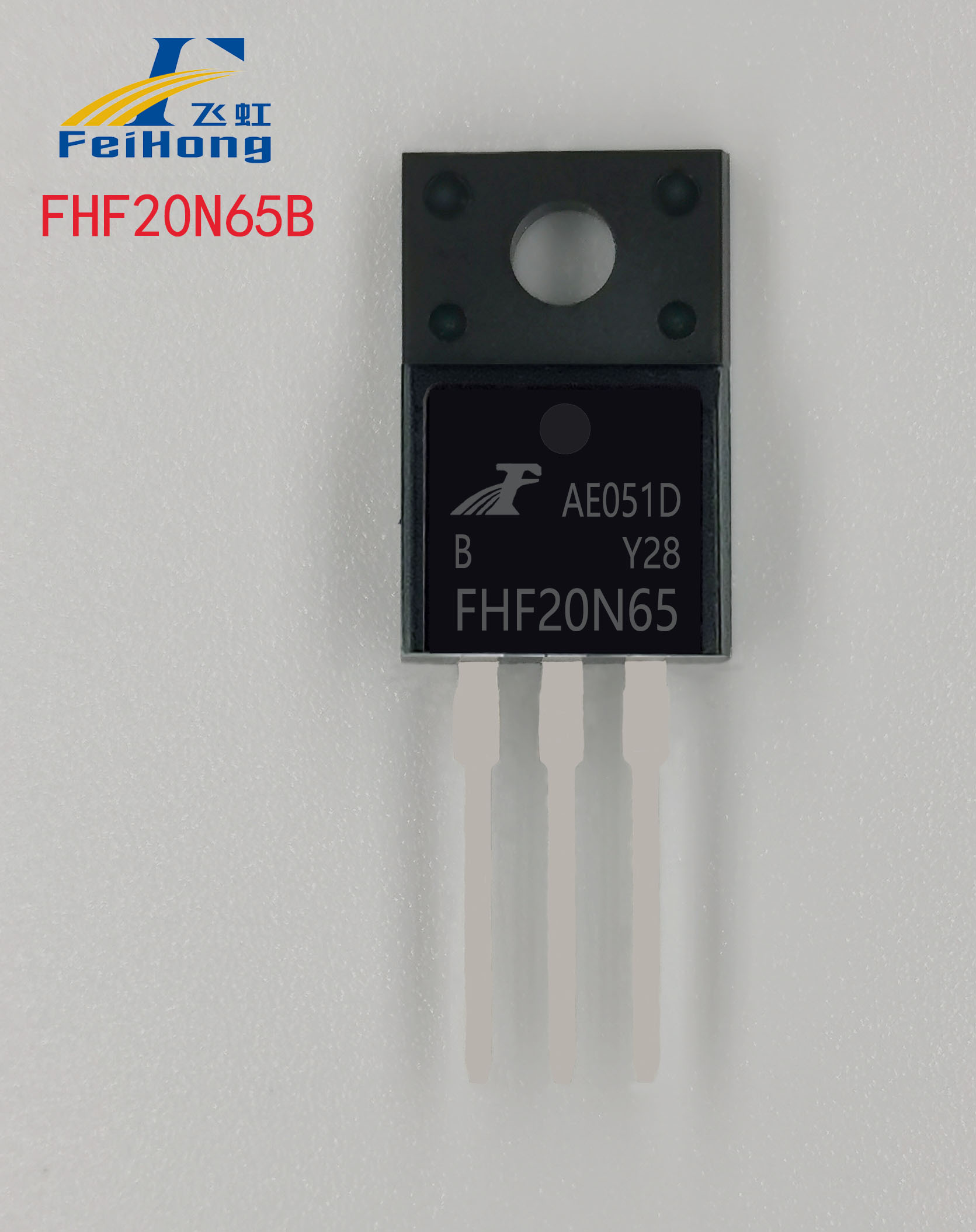

FHP20N65B/FHF20N65B/FHA20N65B

Release time：2022-10-20 13:45:43

Industry generic name：20N65, etc.Wait

View Specifications >

  • 20N65B is an N-channel enhanced VDMOS, using planar technology. This product is widely used in AC-DC switching power supplies, such as: LED lighting drive power supply; Supporting power supply for industrial automation equipment; Medical equipment power supply; Lithium battery charger; Power adapter, alternative models of other MOS tube brands: 20N65, etc.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP20N65B/FHF20N65B/FHA20N65B
N
TO-220 TO-220F TO-3PN/247
30
2～4
20
650
0.36
0.45

Product Details

【20N65BProduct Type】

N-channel Plane MOSFET


【20N65B Product Introduction】

 FHP20N65B is an N-channel enhancement VDMOS, adopting the planar process. This product is widely used in AC-DC switch power supplies, such as: LED lighting driver power supply (terminal applications: urban lighting beautification, outdoor display screens, light boxes, billboards, street lamps, plant lighting, etc.); industrial automation equipment matching power supply; medical equipment power supply; lithium battery charger (electric vehicle charger, balance vehicle charger, skateboard charger); power adapter (laptop adapter, TV power supply, security monitoring matching adapter power supply). Other MOS tube brand alternative models: 20N65, etc.


【20N65B Product Features】

Low on-resistance, high dv/dt capability, 100% EAS test (strong impact resistance), 100% DVDS thermal resistance test, 100% Rg test, high test standards, good consistency, industrial grade products.



【20N65B Application Examples】

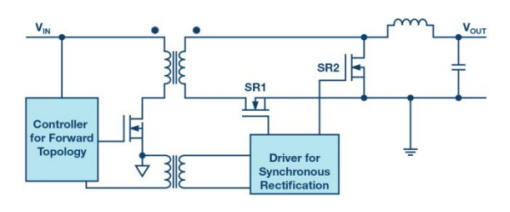

FHP20N65B Field Effect Transistor Application
