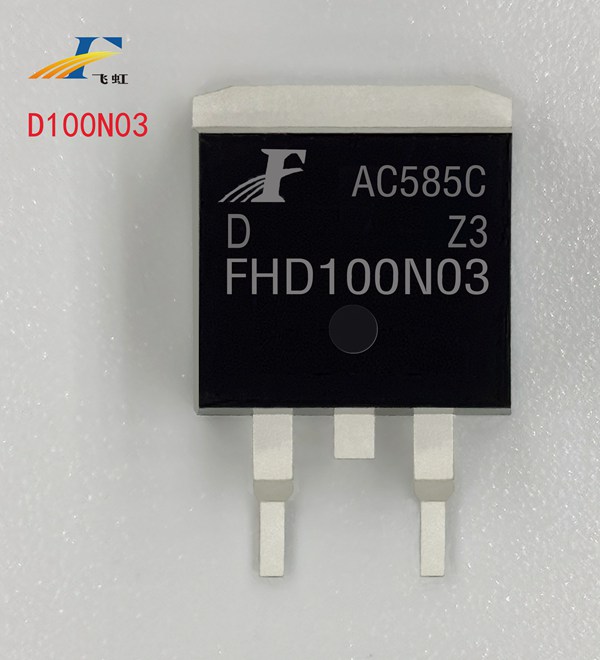

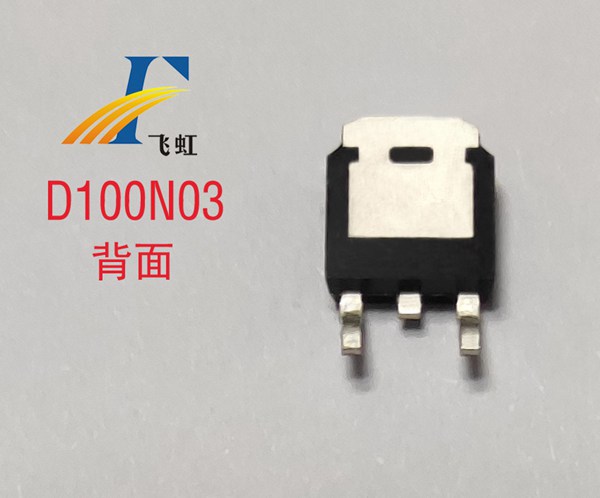

FHP100N03E/FHU100N03E/FHD100N03E

Release time：2021-10-12 14:14:51

Industry generic name：HYG045N03LA1D, 85N03, 100N03Wait

View Specifications >

  • Feihong 100N03D adopts advanced trench technology to obtain extremely low RDSON conduction internal resistance, which is widely used in DC motor drive control such as juice extraction cup, lithium battery protection board, load switch, solar street lamp controller, electric tool, etc. Other mos tube brand alternative models: HYG045N03LA1D, 85N03, 100N03.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP100N03E/FHU100N03E/FHD100N03E
N
TO-220 TO-251 TO-252
20
1.0-2.0
100
30
3.8
4.9
5.4
6.6

Product Details

【Feihong 100N03D Product Description】

Feihong 100N03D, N-channel Trench MOSFET, adopts advanced trench process to achieve extremely low RDSON on-state resistance. It is widely used in juicer cups, lithium battery protection boards, load switches, solar street light controllers, power tools and other DC motor drive controls ; other MOSFET brand alternative models: HYG045N03LA1D, 85N03, 100N03.


【Feihong 100N03DProduct Features】

Feihong 100N03D, 100% EAS test, 100% Rg test, 100% DVDS test, extremely low FOM (RDSON*Qg), high avalanche withstand capability, high reliability.


【Feihong 100N03DApplication Examples】

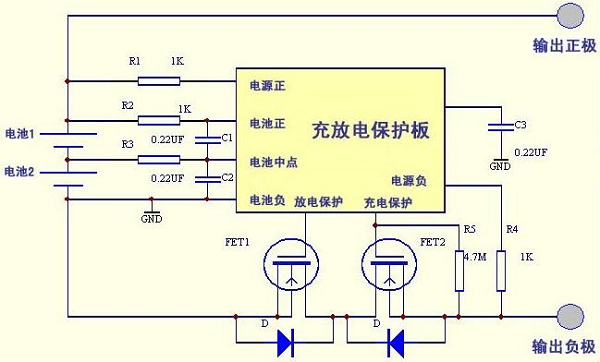

1、BMS----3 series lithium battery protection board, MOS provides charge and discharge protection function.

Lithium Battery Protection Board MOSFET

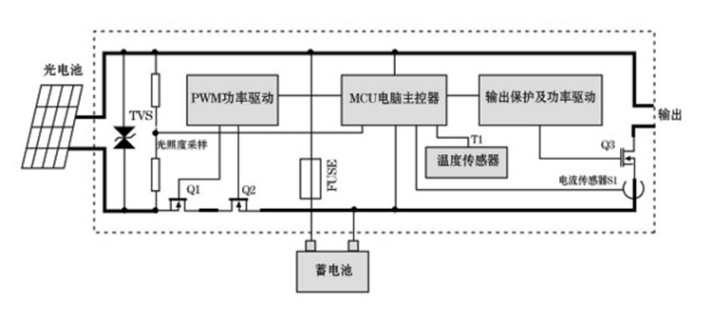

2、12V- Solar Street Light Controller: MOS provides charge and discharge protection, battery reverse connection protection functions.

Solar Controller MOSFET
