FHU70N03C/FHD70N03C

Release time：2022-07-13 13:39:39

Industry generic name：50N03 70N03Wait

View Specifications >

  • Feihong 70N03C uses advanced trench technology to obtain excellent FOM(RDSon * Qg), which is widely used in lithium battery protection boards. Other MOS tube brand alternative model: 50N03 70N03

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)

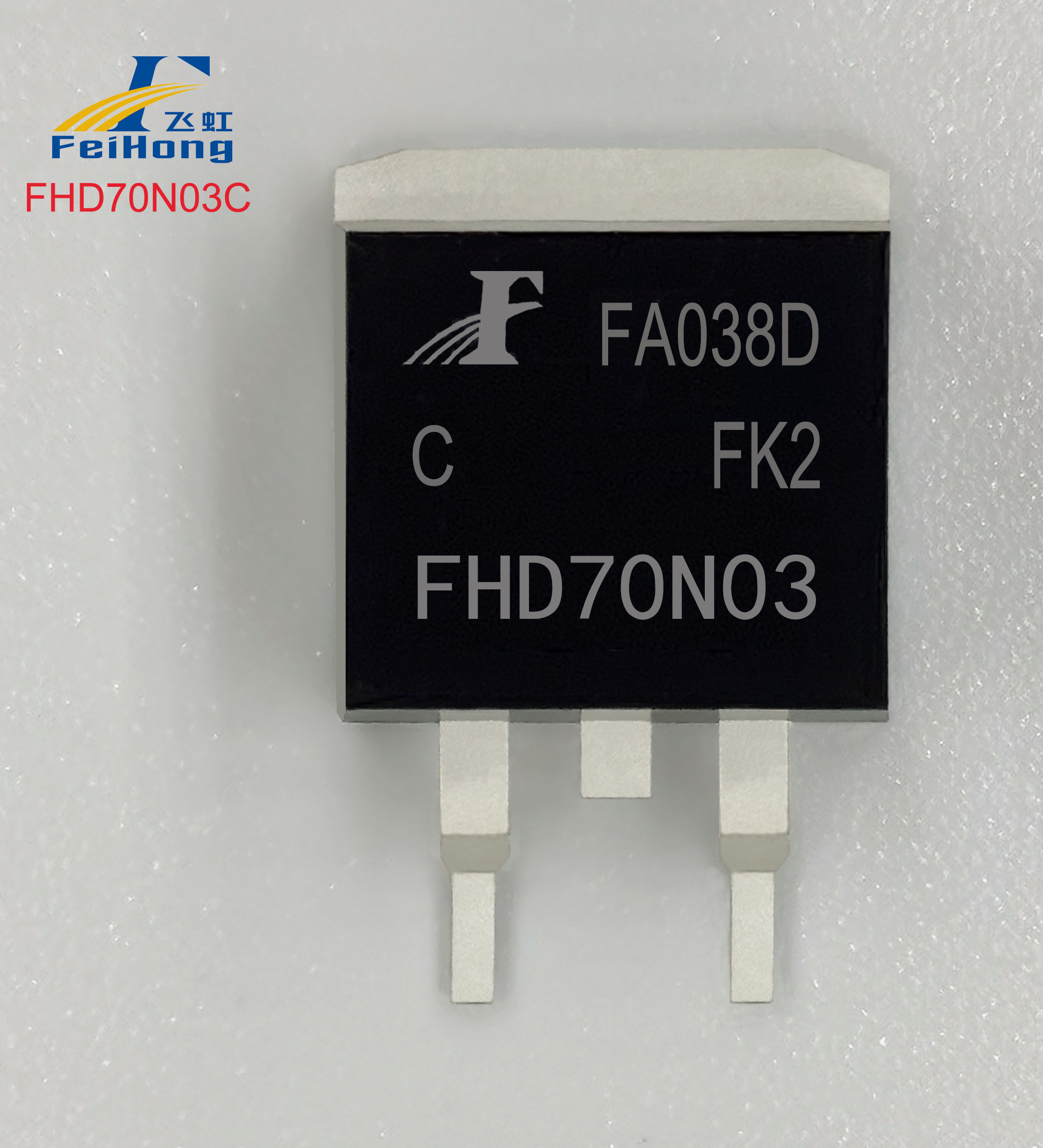

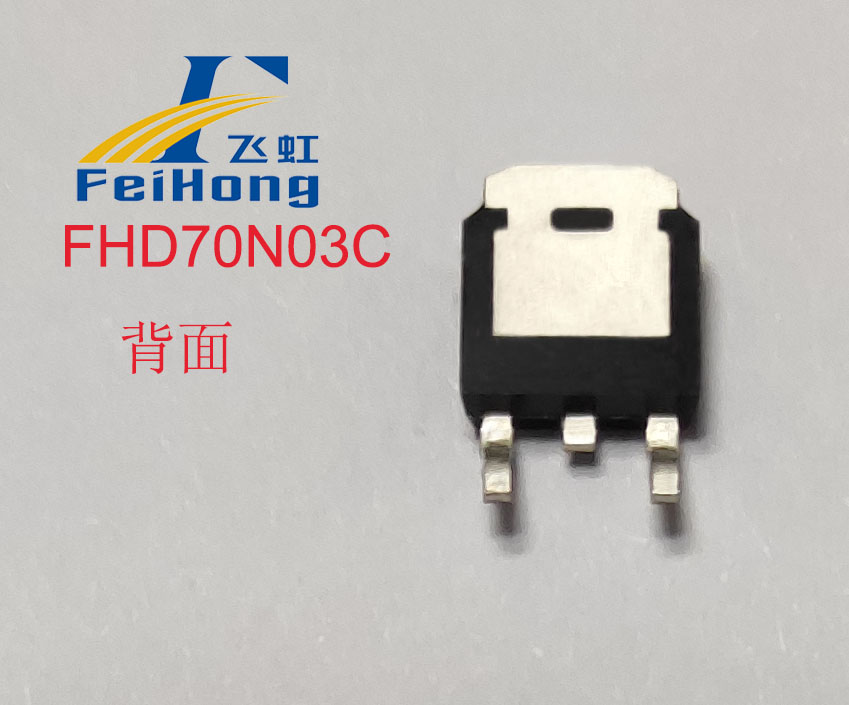

FHU70N03C/FHD70N03C
N
TO-252 TO-251
20
1～2.2
68
30
6.3
8
10.7
13

Product Details

【Flying虹70N03C product type】

N-channel Trench MOSFET


【Flying虹70N03Cproduct description】

      Flying虹70N03C adopts advanced trench process to achieve excellent FOM (RDSon*Qg), widely used in lithium battery protection boards. Other MOS tube brand replacement models: 50N03  70N03



【Flying虹70N03Cproduct features】

      100% EAS test, 100% Rg test, 100% DVDS test, high avalanche tolerance, high reliability, low Qgd, low RDSon.




【Flying虹70N03Capplication examples】

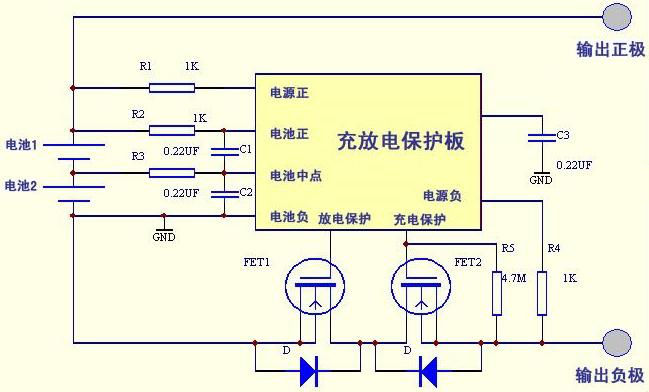

TO-252:FHD70N03C products are suitable for BMS----12V/3-series lithium battery protection boards, MOS has charging and discharging protection functions.
