FHP160N06V

Release time：2025-01-04 12:07:14

Industry generic name：HY3606P, IRFB3306PbFWait

View Specifications >

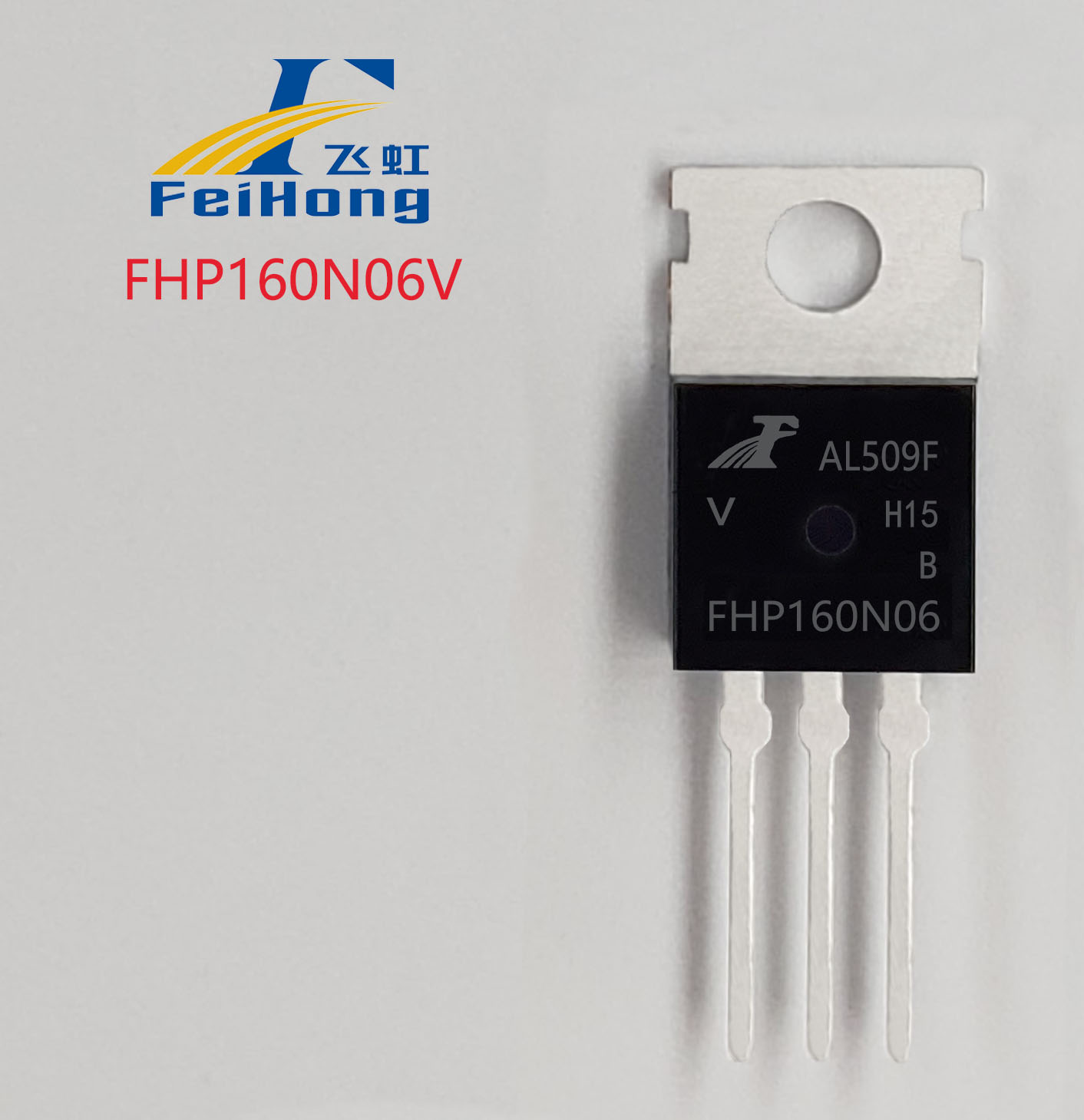

  • FHP160N06V using advanced trench technology, the switching performance and avalanche energy are improved while the conduction loss is reduced. The product is packaged in TO-220 and can be used in various power switching circuits. Products comply with JEDEC standards, in environmental protection in line with RoHS and REACH standards, halogen-free environmental protection.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP160N06V
N
TO-220
10
3
165
60
2.9
4.0

Product Details

 【Product Name】 FHP160N06V

 【Type of FHP160N06V Product】Trench  Power  MOSFET

 【Description of FHP160N06V Product】 FHP160N06V adopts advanced trench technology, which reduces the conduction loss while improving switching performance and avalanche energy. The product uses TO-220 packaging and can be applied to various power switch circuits. The product meets the JEDEC standard and is environmentally friendly, meeting RoHS and REACH standards, and is halogen-free.

 【FHP160N06V Replaceable Market Models】  HY3606P   IRFB3306PbF

（1）Compared with HY3606P, it has a lower on-resistance, reducing conduction losses and improving the quality factor FOM (RDSON*Qg), thus providing better performance.

（2）Compared with IRFB3306PbF, it reduces conduction losses and provides a higher cost-effective domestic alternative product.

 【Characteristics of FHP160N06V Product】

（1）100% EAS test.

（2）100% Rg test.

（3）100% DVDS instantaneous thermal resistance test.

（4）Adopting detailed Vth classification, further improving the high consistency of the product.

（5）By adopting the unique trench process and combining excellent encapsulation BOM materials, the product has high reliability and fast switching speed.

（6）Has extremely low on-resistance RDS(on) and excellent quality factor FOM (RDS(on)*Qg).

（7）High avalanche tolerance and strong impact resistance.

【Applications of FHP160N06V Product】

（1）High-frequency inverter application: DC/DC push-pull topology boost circuit in vehicle-borne high-frequency inverter with 12V battery input.

（2）Suitable for industrial frequency inverter applications with full-bridge topology.

（3）Suitable for outdoor energy storage power supplies paired with 5-series lithium iron phosphate battery packs, used in the DC-DC push-pull topology boost circuit of the inverter module.

（4）Suitable for 24-36V BLDC motor drive controllers.

（5）Suitable for UPS uninterruptible power supply powered by 24V batteries.

（6）Suitable for synchronous rectification in high-power high-frequency switch power supplies.
