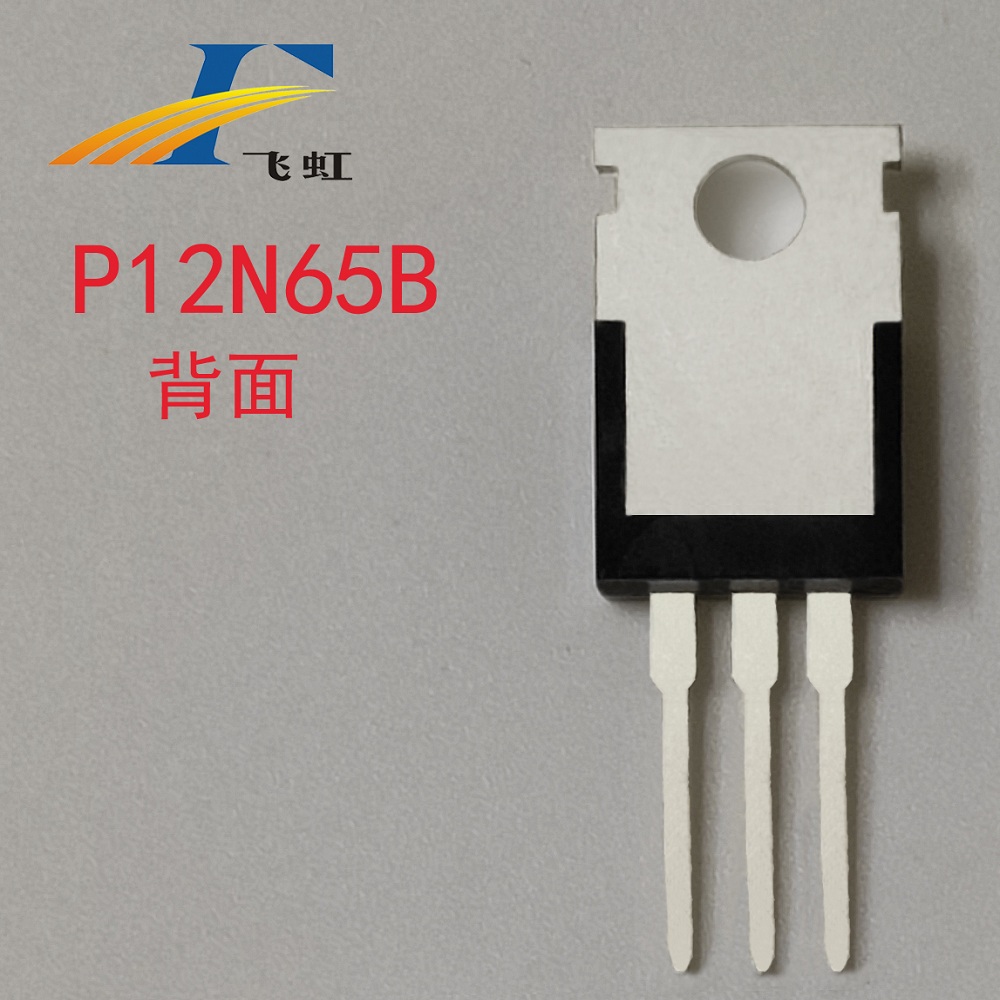

FHP12N65W/FHF12N65W

Release time：2017-05-23 10:39:58

Industry generic name：FQPF12N65CWait

View Specifications >

  • 12N65 is an N-channel enhancement type high voltage power MOS field effect transistor. The product is widely used in all kinds of switching power supply, 120~150W AC-DC switching power supply., DC-DC power converter, high-voltage H-bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP12N65W/FHF12N65W
N
TO-220 TO-220F
30
2～4
12
650
0.58
0.7

Product Details

【Product Introduction】


Feihong 12N65 is an N-channel enhancement type high voltage power MOSFET. This product is widely used in various switch power supplies, AC-DC switch power supplies of 120~150W, DC-DC power converters, and high voltage H-bridge PWM motor drivers. Compared with other FET brands/models:FQPF12N65C;


【Product Features】

FHP12N65/FHF12N65, good consistency, high reliability, high avalanche tolerance, low on-resistance.


【Application Circuit Example】

FHP12N65 Application Scenario
