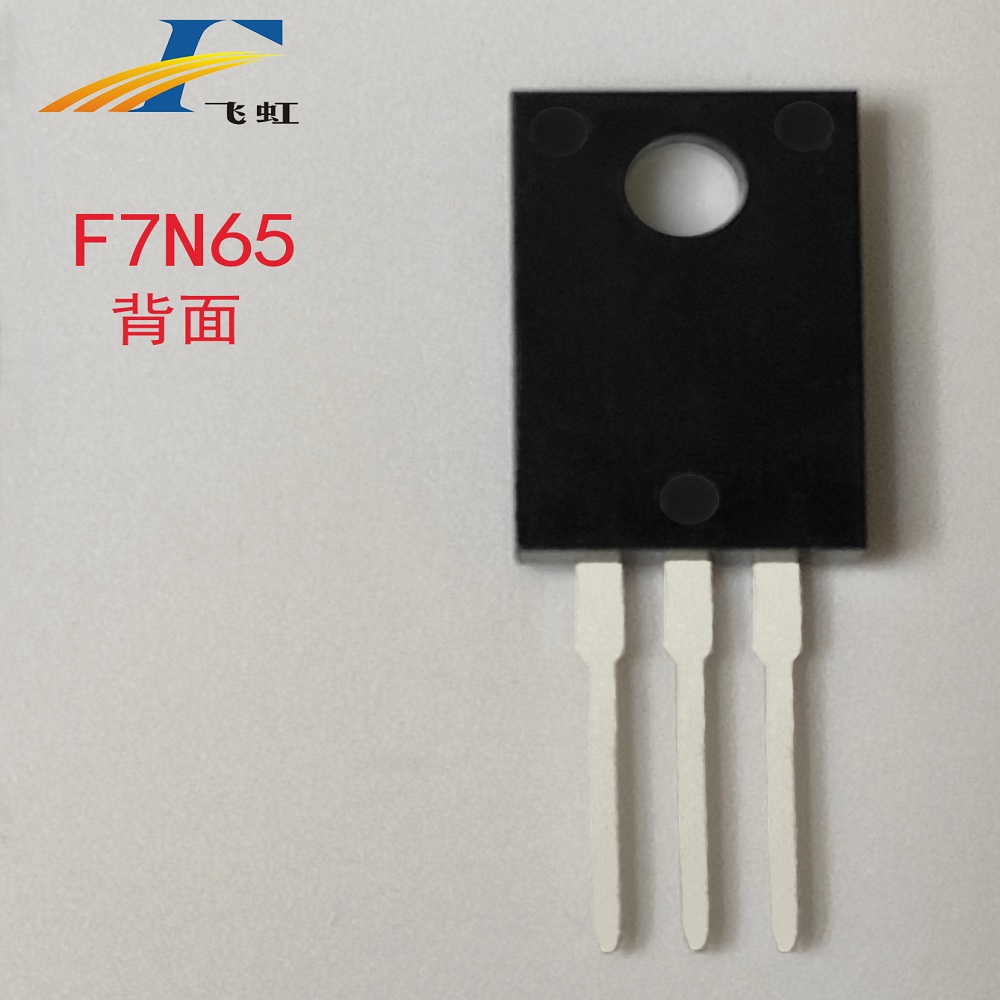

FHP7N65D/FHF7N65D/FHU7N65D/FHD7N65D

Release time：2017-05-23 10:12:13

Industry generic name：FQPF7N65CWait

View Specifications >

  • Rainbow FHF7N65F high voltage mos tube, can be applied to 45W-60W AC-DC switching power supply.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP7N65D/FHF7N65D/FHU7N65D/FHD7N65D
N
TO-220 TO-220F TO-251 TO-252
30
2～4
7
650
1.1
1.35

Product Details

【Product Introduction】

FHF7N65F MOS tube, suitable for 45W-60W AC-DC switching power supplies.The对标ONFET brand model is:FQPF7N65C;


【Product Features】

FHF7N65F has good consistency, high reliability, and high avalanche capacity.

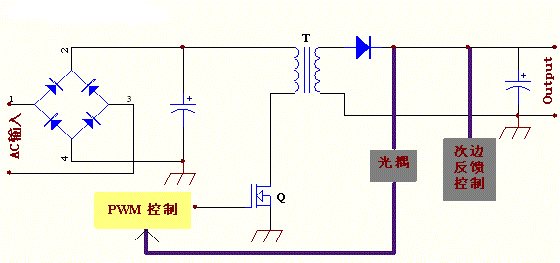

【Application Examples】
