FHP8N65W/FHF8N65W/FHD8N65W

Release time：2017-05-23 10:17:51

Industry generic name：FQPF8N65CWait

View Specifications >

  • Feihong 8N65 is an N-channel enhanced high voltage power MOS FET. The product is widely used in all kinds of switching power supply, AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP8N65W/FHF8N65W/FHD8N65W
N
TO-220 TO-220F TO-252
30
2～4
8
650
1
1.25

Product Details

【Product Introduction】

Feihong 8N65 is an N-channel enhancement mode high voltage power MOSFET. This product is widely used in various switch power supplies, AC-DC switch power supplies, DC-DC power converters, and high voltage H-bridge PWM motor drivers.The对标brand model of ON Semiconductor is:FQPF8N65C;


【Product Features】

FHP8N65/FHF8N65 have good consistency, high reliability, high avalanche energy tolerance, and low on-resistance.

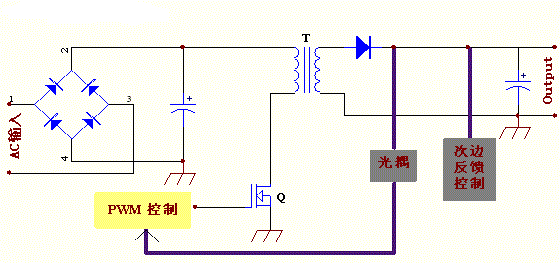

【Example Circuit Application】
