FHP80N08B

Release time：2017-05-22 17:03:40

Industry generic name：HY3008, IRF3607Wait

View Specifications >

  • Feihong 80N08B field effect transistor, N-channel trench process MOS tube, suitable for inverter pre-stage circuit. Other brand alternative models: HY3008, IRF3607

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

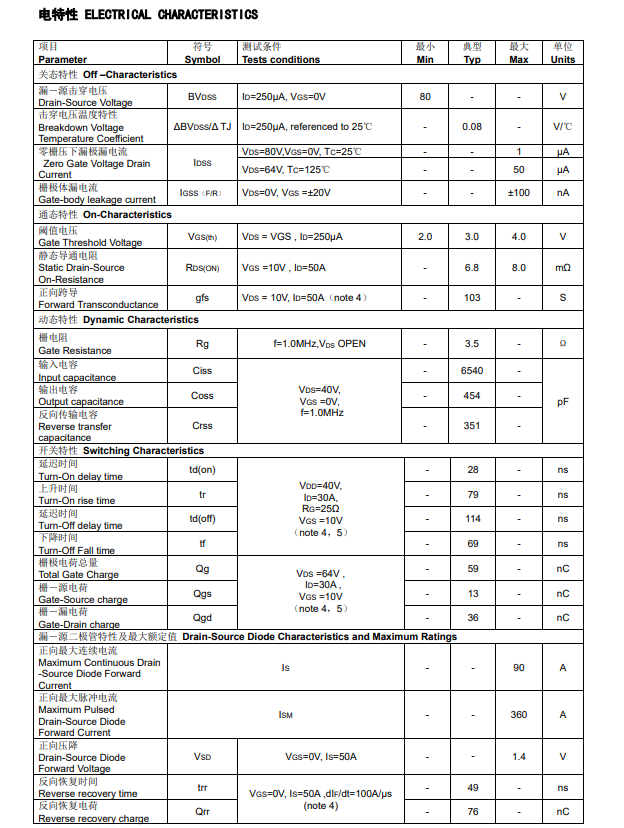

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP80N08B/FHS80N08B
N
TO-220 TO-263
20
2～4
90
80
6.8
8

Product Details

[Description of Feihong 80N08B Product]

Feihong 80N08B MOSFET, N-channel trench process MOS tube, suitable for the front-end circuit of an inverter. Alternative models from other brands: HY3008, IRF3607


[Advantages of Feihong 80N08B Product]

Good consistency, high reliability, high avalanche energy tolerance, and low on-resistance.


[Application Examples of Feihong 80N08B]
