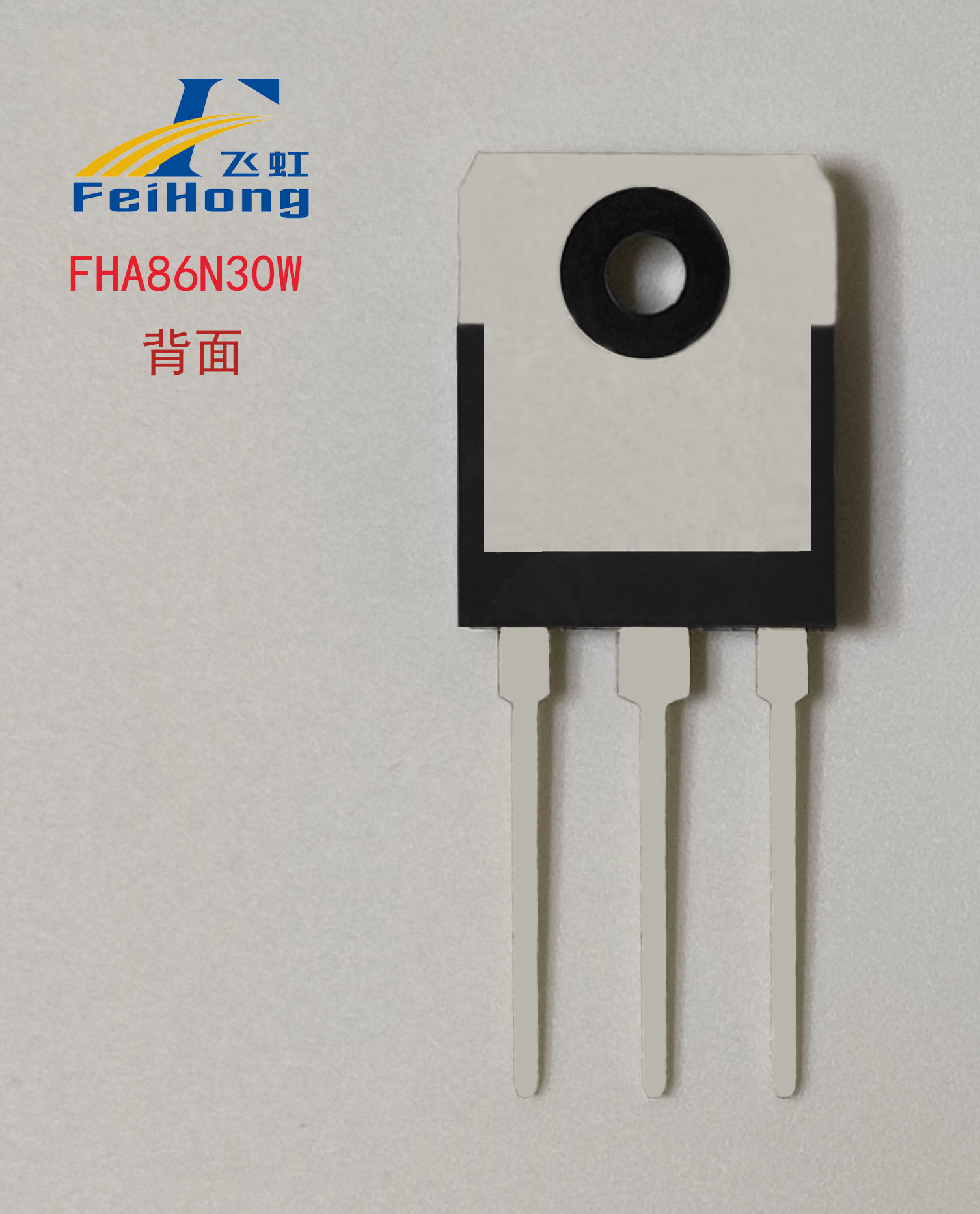

FHA86N30W

Release time：2022-10-20 13:45:43

Industry generic name：IXFH86N30T, Fda59N30, etc.Wait

View Specifications >

  • FHA86N30W for the N-channel enhanced VDMOS, other MOS tube brand alternative models: IXFH86N30T, Fda59N30. Commonly used in: DC-AC inverter: such as: vehicle dedicated inverter, outdoor energy storage power supply; MPPT controller (mainly DC-DC circuit).

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHA86N30W
N
TO-3PN/247
30
2～4
86
300
0.034
0.04

Product Details

【86N30WProduct Type】

N-channel Plane MOSFET


【Introduction of 86N30W Product】

 FHA86N30W is an N-channel enhancement VDMOS. The alternative models of other MOS tube brands are IXFH86N30T and Fda59N30. It is commonly used in: DC-AC Inverter: for example, vehicle-specific inverters, outdoor energy storage power supplies; MPPT controllers (mainly for DC-DC circuits).


【Product Features of 86N30W】

Low on-resistance, high dv/dt capability, 100% EAS test, strong impact resistance, 100% DVDS thermal resistance test, good heat dissipation performance, 100% Rg test, high testing standards (100% parameter tests + VTH classification, good parameter consistency), high reliability (meeting industrial grade reliability requirements).




【Application Examples of 86N30W】



DC-ACInverter(Vehicle-specific inverter, outdoor energy storage power supply)

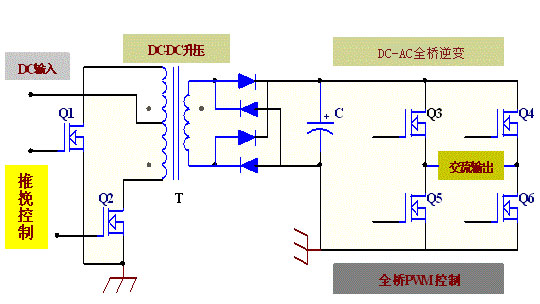

DC-AC Inverter MOS Tube Application




MPPTController (Mainly for DC-DC Circuit)

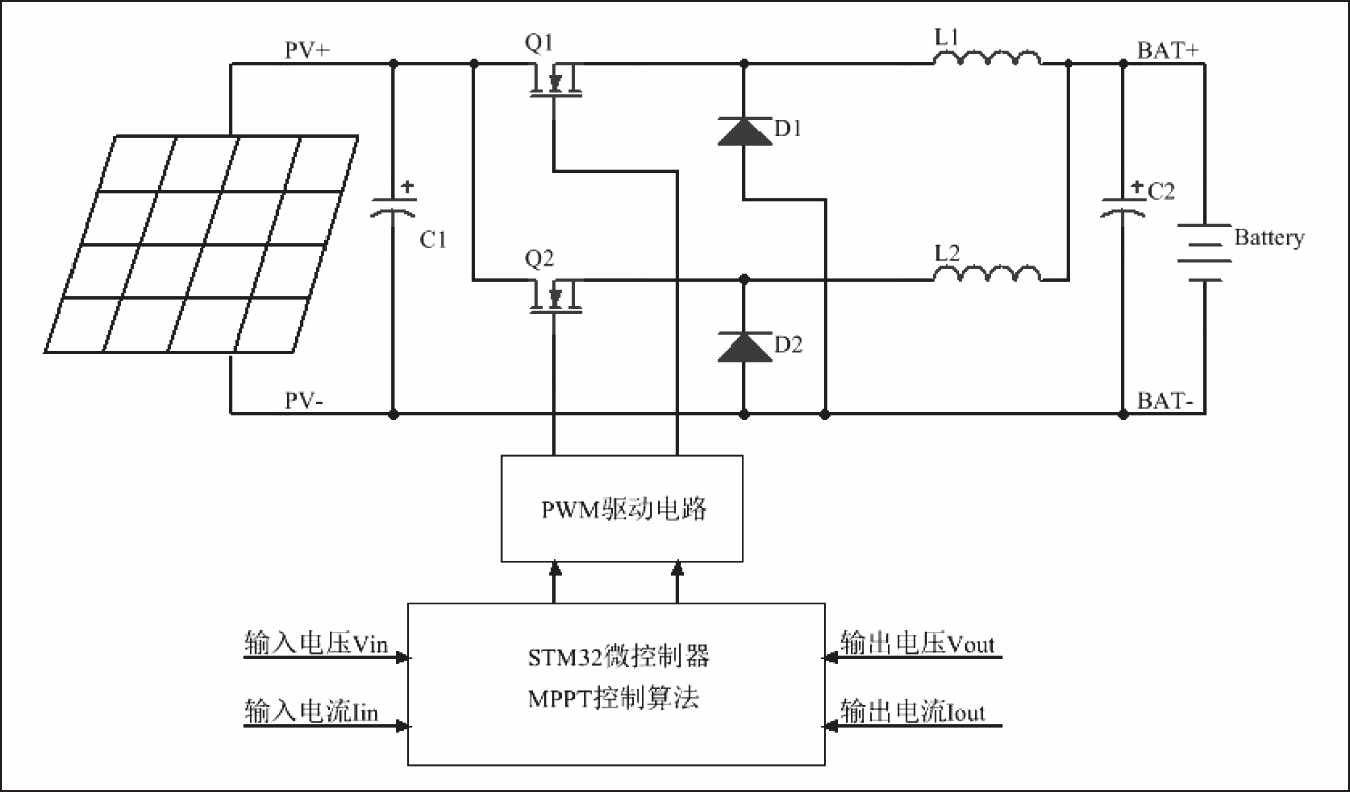

MPPT Controller MOS Tube Circuit
