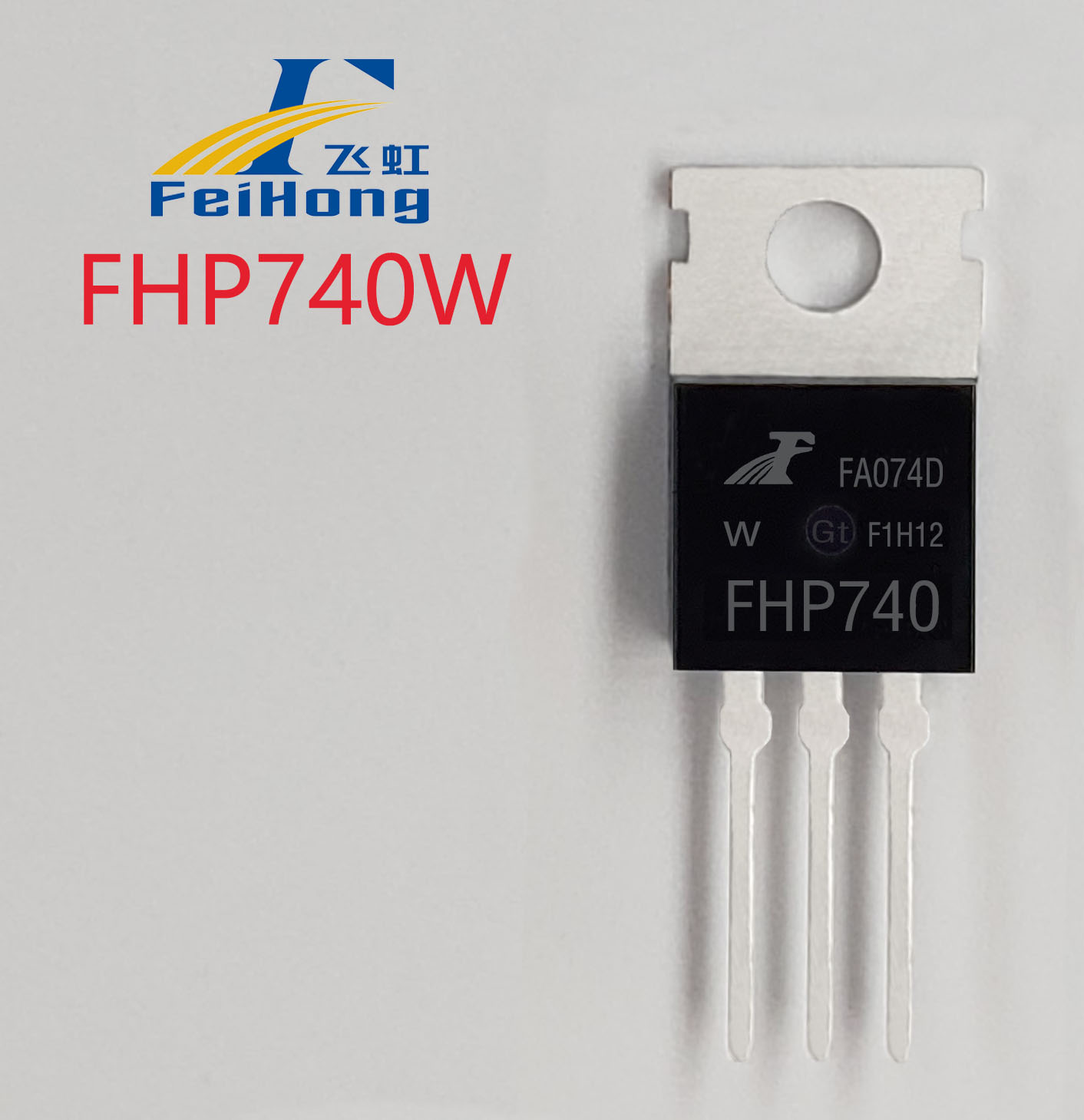

FHP740W

Release time：2017-05-23 11:01:49

Industry generic name：10N40, 11N40, IRF740Wait

View Specifications >

  • FHP740W FET, N-channel enhancement FET. The product is mainly used in 500W/AC220V square wave output inverter full bridge circuit, switching power supply, high voltage H bridge PMW motor drive. Can replace other brand models: 10N40, 11N40, IRF740.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP740W
N
TO-220
30
2～4
10
400
0.38
0.5

Product Details

【Product Description】

FHP740W MOSFET, N-channel enhancement type MOSFET. This product is mainly used in 500W/AC220V square wave output inverter full-bridge circuit, switch power supply, high voltage H-bridge PMW motor driver. It can replace other brand models: 10N40, 11N40, IRF740;


【Product Advantage】

Good consistency, high reliability, high avalanche tolerance, low on-resistance.



【Application Examples】


P740 Pin Diagram
