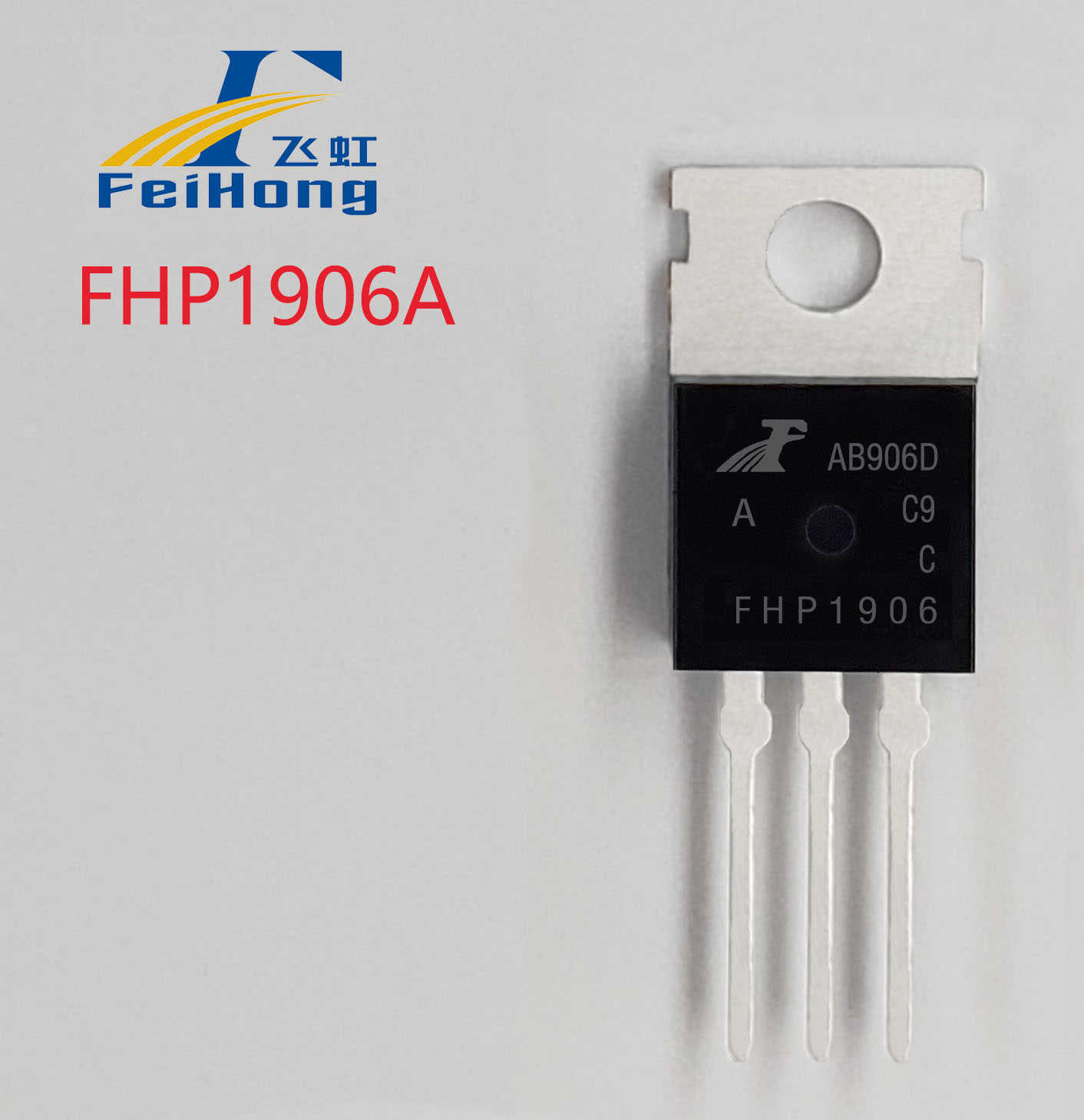

FHP1906A

Release time：2022-07-13 11:42:21

Industry generic name：1906, etc.Wait

View Specifications >

  • Feihong 1906A uses advanced trench technology to obtain excellent FOM(RDSon * Qg), which is widely used in inverters and energy storage power supplies. Other MOS tube brand alternative models: 1906, etc.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP1906A
N
TO-220
20
2～4
120
60
5.2
6

Product Details

【Flying虹1906A Product Type】

N-channel Trench MOSFET


【Flying虹1906AProduct Description】

      Flying虹1906A adopts advanced trench technology to achieve excellent FOM (RDSon*Qg), and is widely used in inverters and energy storage power supplies. Other MOS tube brand alternative models: 1906 etc.



【Flying虹1906AProduct Features】

      100% EAS test, 100% Rg test, 100% DVDS test, high avalanche tolerance, high reliability, low Qgd, low RDSon.


【Flying虹1906AApplication Examples】





     FHP1906A is suitable for push-pull structure circuits in DC-DC boost modules of energy storage power supplies and various inverters, such as Q1-Q2 in the schematic diagram.
