FHP7N60/FHF7N60

Release time：2017-05-23 10:11:10

Industry generic name：FQP7N60Wait

View Specifications >

  • 7N60 is an N-channel enhanced high voltage power MOS field effect transistor. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP7N60/FHF7N60
N
TO-220 TO-220F TO-262 TO-263
30
2-4
7
600
1.3

Product Details

【Product Introduction】

Feihong 7N60 is an N-channel enhancement-mode high voltage power MOSFET. This product is widely applicable to AC-DC switch power supplies, DC-DC power converters, and high voltage H-bridge PWM motor drives.Compared with other FET brands and models:FQP7N60;


【Product Features】

FHP7N60/FHF7N60, 7.0A, 600V, RDS(on) = 1.3Ω (max) @VGS = 10 VFast switching speed with low charge and low reverse transfer capacitance;






Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GCS160N06 | HY3906P | IRFB7537PBF

prev：

FHP4N65/FHF4N65

next：

FHP7N65D/FHF7N65D/FHU7N65...

back

FHP7N60/FHF7N60Product Application Articles

Why choose Feihong

omni-directionalmarketing service system，15+YearFAEExperience technical support

Feihong Semiconductor focuses on R & D and production of power devices

MOS FET/IGBT Single Tube/Diode/Triode

Free sample：feihongbcok@gmail.com

WeChat sweep, direct communication!

Plane MOSFET Product Application Articlesmore>
Common Circuit Solutionsmore>

Related Product recommend

  • FHP630A/FHF630A/FHD630A

    The FHP630A can be applied to 48V/60V input inverter front-stage DC-DC boost circuit (Q1-Q2), applied to DC-AC inverter power supply, DC-DC power converter, high-voltage H-bridge PMW motor driver, electronic ballast, high-end switching power supply and other industrial products
    Free sample
    Join List

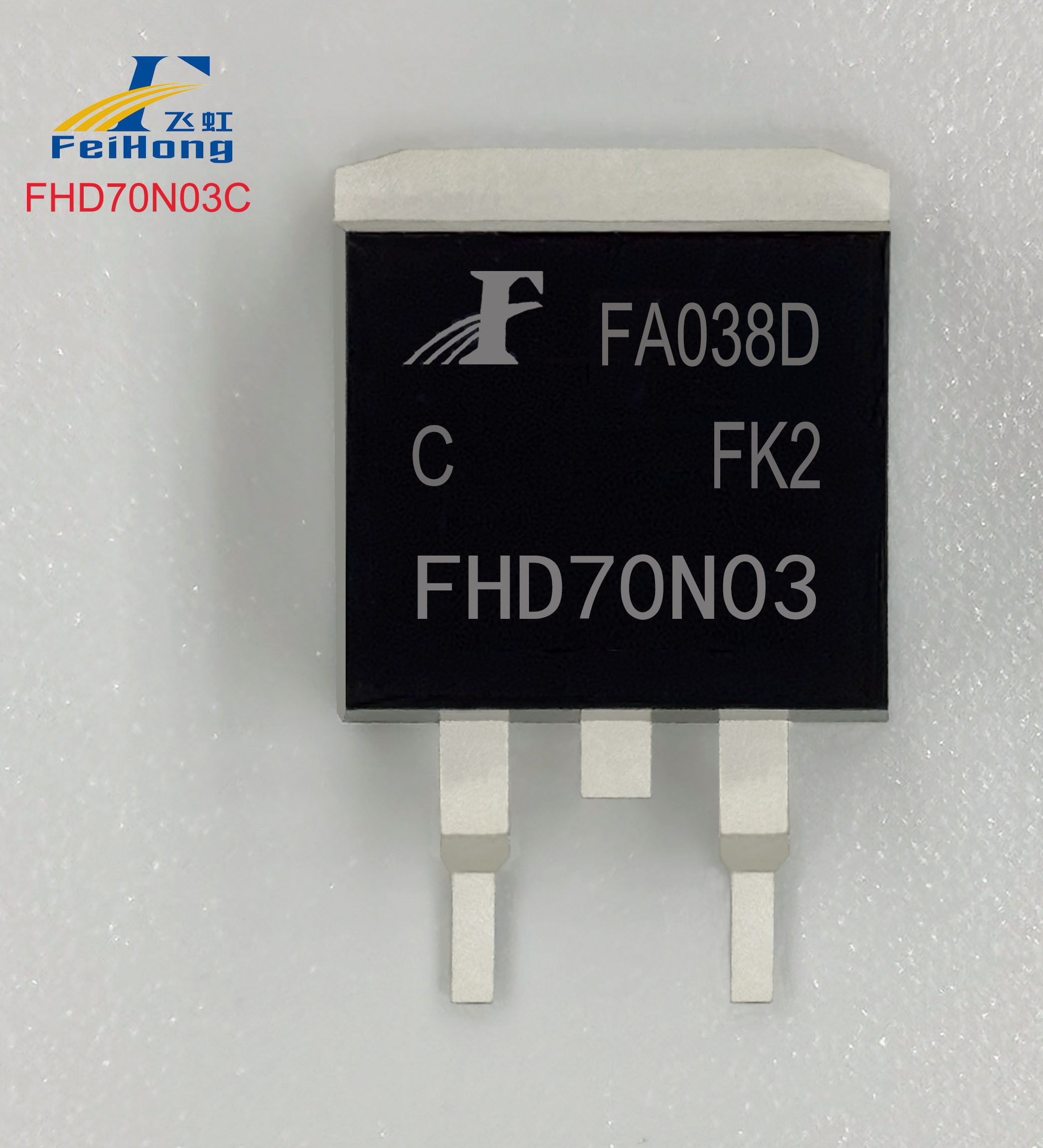

  • FHU70N03C/FHD70N03C
