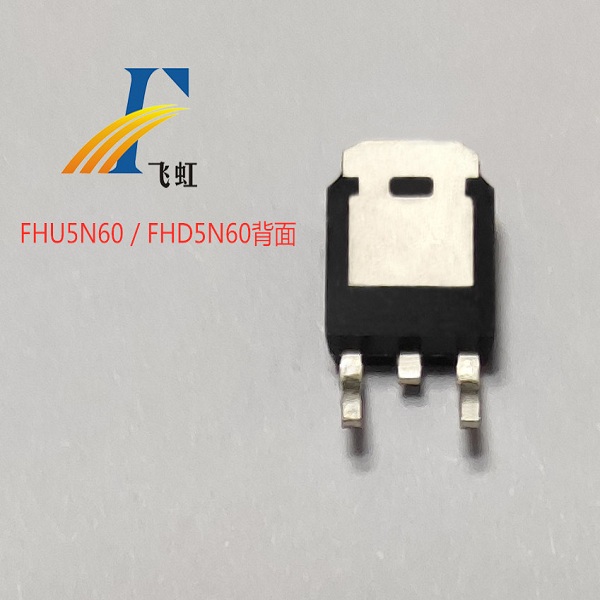

FHU5N60/FHD5N60

Release time：2017-05-23 10:09:16

Industry generic name：FQP5N60Wait

View Specifications >

  • FHU5N60/FHD5N60 high-voltage MOS tube (standard model: FQP5N60), for N-channel enhanced high-voltage power MOS field effect transistor. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHU5N60/FHD5N60
N
TO-220/TO-220F/TO-251/TO-252/TO-262/TO-263
GDS
30
2-4
5
600
2.4
，10

Product Details

【Product Introduction】

FHU5N60/FHD5N60 high voltage MOSFETs are N-channel enhancement mode high voltage power transistors. The product is widely applicable to AC-DC switch power supplies, DC-DC power converters, and high voltage H-bridge PWM motor drives.Compare with other field effect transistor brands and models:FQP5N60;


【Product Features】

5.0A, 600V, RDS(on) = 2.4Ω (max) @VGS = 10 V low charge, low reverse transfer capacitance, fast switching speed
