FHP230N06V

Release time：2024-11-29 10:52:45

Industry generic name：CS160N06, HY3906P, IRFB7537PBFWait

View Specifications >

  • FHP230N06V using advanced trench technology, the conduction loss is reduced, the switching performance is improved, and the avalanche energy is increased. The transistor can be used in various power switching circuits to achieve system miniaturization and high efficiency. The product appearance is TO-220 package, conforms to JEDEC standard, conforms to RoHS and REACH standard in environmental protection, and is halogen-free and environmentally friendly.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)		 Vgs=4.5v
(typ)		 Vgs=4.5v
(max)
FHP230N06V
N
TO-220
20
3
230
60
2.5
3.0

Product Details

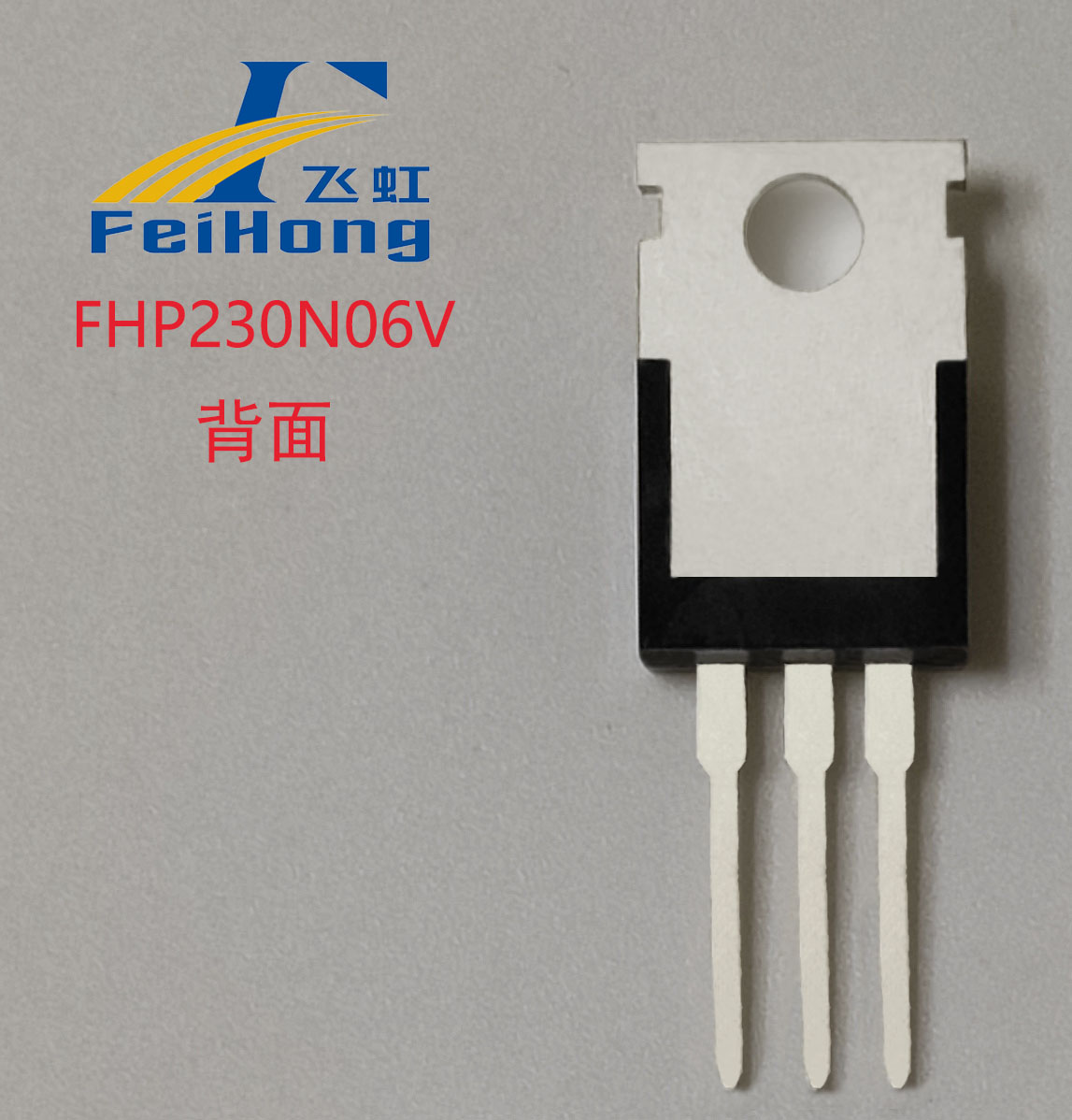

【Product Name】 FHP230N06V

【Product Type of FHP230N06V】Trench Power MOSFET

【Product Description of FHP230N06V】 The FHP230N06V adopts advanced trench technology, reducing conduction loss, improving switching performance, and increasing avalanche energy. The transistor can be used in various power switch circuits to achieve system miniaturization and high efficiency. The product is in TO-220 package, complying with the JEDEC standard, and meets RoHS and REACH standards in terms of environmental protection, as well as being halogen-free.

【Alternative Market Models for FHP230N06V】 CS160N06  HY3906P   IRFB7537PBF

(1) It has a lower on-resistance compared to HY3906P and CS160N06, reducing conduction losses and improving the quality factor FOM(RDSON*Qg), thus providing better performance.

(2) Compared with IRFB7537PbF, it provides a more cost-effective domestic alternative product.

【Product Features of FHP230N06V】

(1) 100% EAS test.

(2) 100% Rg test.

(3) 100% DVDS instantaneous thermal resistance test.

(4) Adopting refined Vth classification further improves product consistency.

(5) By adopting unique trench process and excellent packaging BOM materials, the product has high reliability and fast switching speed.

(6) It has extremely low on-resistance RDS(on) and excellent quality factor FOM(RDS(on)*Qg).

(7) High avalanche tolerance and strong impact resistance.

【Application of FHP230N06V Product】

(1) High-frequency inverter application: DC/DC push-pull topology boost circuit in the vehicle-borne high-frequency inverter with 12V battery input.

(2) Suitable for industrial frequency inverter applications with full-bridge topology.

(3) Suitable for outdoor energy storage power supplies paired with 5-series lithium iron phosphate battery packs, used in the DC-DC push-pull topology boost circuit of the inverter module.

(4) Suitable for 24-36V BLDC motor drive controllers.

(5) Suitable for UPS uninterruptible power supply powered by 24V batteries.

(6) Suitable for synchronous rectification in high-power high-frequency switching power supplies.
