In the design of low-voltage industrial frequency inverters, the selection of MOSFETs directly affects system efficiency and reliability. Faced with supply chain fluctuations of imported models such as IRFB7537PBF, HY3906P, and CS160N06, domestic alternative solutions have become an important choice for engineers. From three dimensions - model compatibility replacement, application scenario adaptability, and core parameter comparison - we will objectively analyze the product value of Feihong Semiconductor's FHP230N06V field-effect transistor.

I. Model Compatibility Replacement: Parameter Alignment and Compatibility Verification

Core requirement: Models like IRFB7537PBF, HY3906P, and CS160N06 have long been used in low-voltage industrial frequency inverters, but their current capabilities and conduction losses may limit efficiency improvements.

1. FHP230N06V parameter alignment:

Voltage/current capability: BVdss=60V, ID=230A (@25℃), covering the demand for 24-48V low-voltage systems.

Conduction characteristics: RDS(on)=2.5mΩ (typical value @VGS=10V), reducing on-state loss by 28.6% compared to similar imported models (e.g., 3.5mΩ @10V for CS160N06).

Threshold voltage: VTH=3V, compatible with mainstream gate drive designs.

2. Key points for replacement verification:

Thermal design: TO-220 packaging requires matching heat sinks (thermal resistance RθJA < 50°C/W), ensuring junction temperature Tj < 125°C;

Dynamic characteristics: Qg=180nC (typical value), need to verify compatibility with the original driver circuit to avoid switch oscillation.

II. Application Scenario Adaptability: Multi-scenario Compatibility and Design Recommendations

1. Suitable for low-voltage industrial frequency inverters using full-bridge topology applications.

2. High-frequency inverter applications: DC/DC push-pull topology boost circuits in vehicle-borne high-frequency inverters with 12V battery input.

3. Motor drives: Suitable for 24-36V BLDC controllers, optimizing switching efficiency and EMI performance.

Scenario-specific design recommendations:

Parallel application: Balance current sharing through gate resistors when using multiple tubes in parallel;

Thermal management: Strictly monitor PCB layout and heat sink configuration to avoid localized overheating.

III. Core Product Parameters: Data-driven Selection Basis

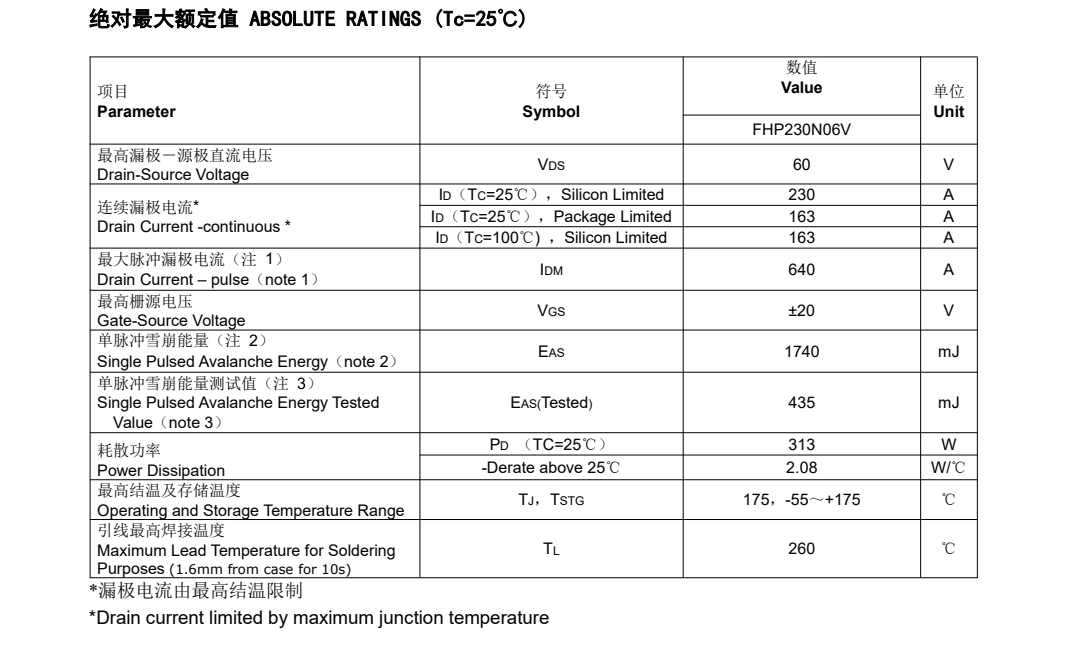

Specific parameters of this FHP230N06V field-effect transistor product: Vgs (±V): 20; VTH (V): 3; ID (A): 230; BVdss (V): 60. RDS (on) = 2.5mΩ (typ) @VGS =10V, RDS (on) = 3.0mΩ (max) @VGS =10V.

The above parameters are what make FHP230N06V a suitable replacement for IRFB7537PBF to solve conversion efficiency issues in low-voltage industrial frequency inverters.

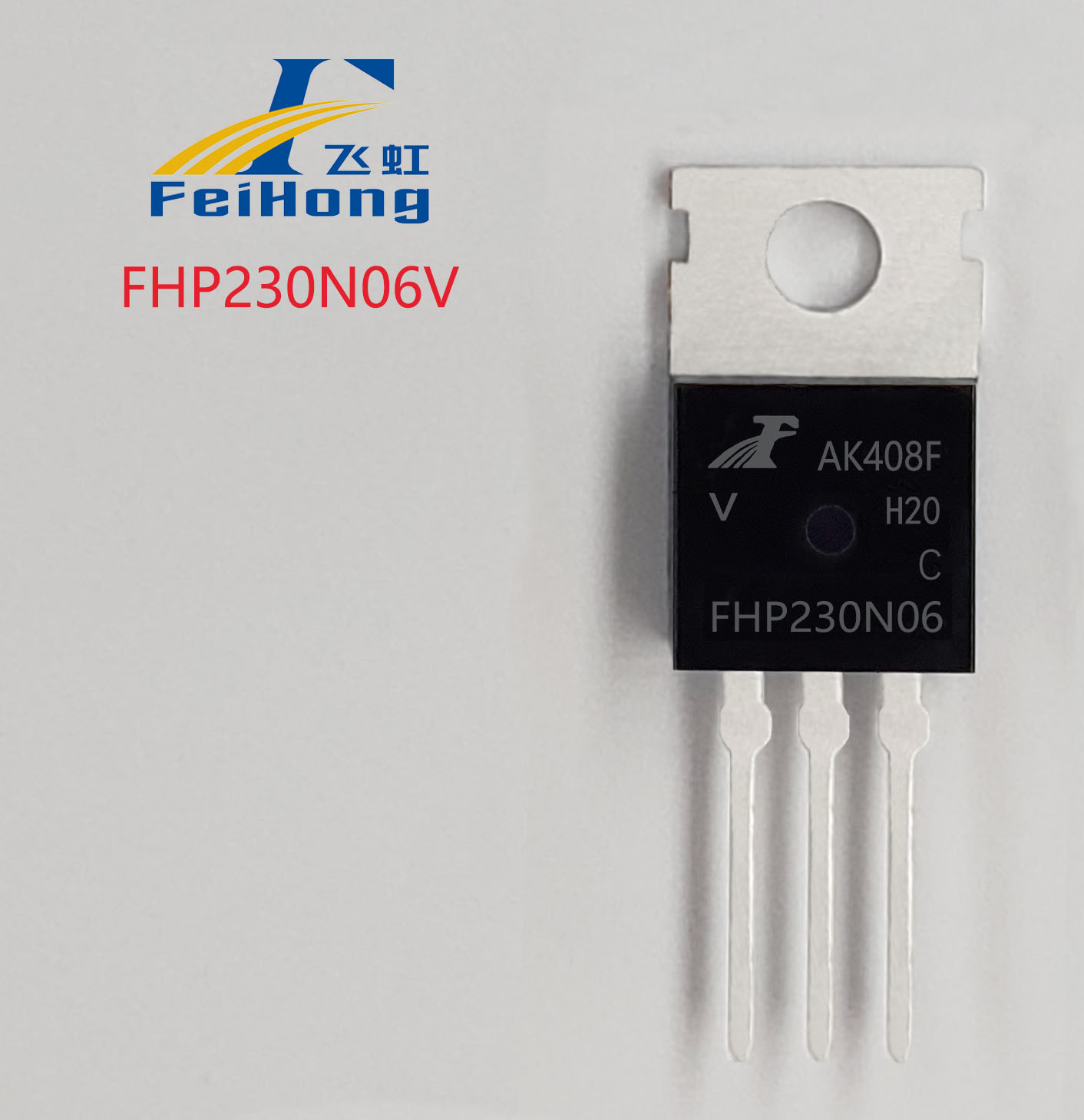

The FHP230N06V uses advanced trench technology, reducing conduction losses, improving switching performance, and increasing avalanche energy. This transistor can be used in various power switching circuits to achieve system miniaturization and high efficiency.

Therefore, based on the above three core points, when replacing 230A, 60V MOSFETs, it is recommended to choose the FHP230N06V field-effect transistor model.

Feihong Semiconductor provides high-quality products and supporting services to domestic electronics manufacturers. In addition to providing free samples, they can also customize MOSFET products according to customer needs. Simply search for "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
