In BLDC motor drive controllers with a voltage range of 24-36V, the MOSFET acts as the core power switch element, responsible for efficient energy conversion, precise current control, and system protection. Therefore, choosing a good MOSFET in circuit design can truly enhance the performance and lifespan of the entire BLDC drive system.

Apart from the commonly mentioned MOSFET models such as CS160N06, HY3906P, and IRFB7537PBF that can be used in motor drive controllers, Feihong Semiconductor has also developed and validated a new pure domestic MOSFET that can be applied to 24-36V BLDC motor drive controllers. It features low breakdown voltage, high current capacity, and low on-resistance.

This is the FHP230N06V MOSFET model, which can replace domestic MOSFET models such as CS160N06, HY3906P, and IRFB7537PBF for application in motor drive controllers!

As an N-channel enhancement-mode field-effect transistor, it features a current and voltage characteristic of 230A and 60V. Electrical engineers can not only apply it in motor drive controllers but also use it in outdoor energy storage power supplies, vehicle-mounted high-frequency inverters, industrial frequency inverters, UPS uninterruptible power supplies powered by 24V batteries, and other application scenarios.

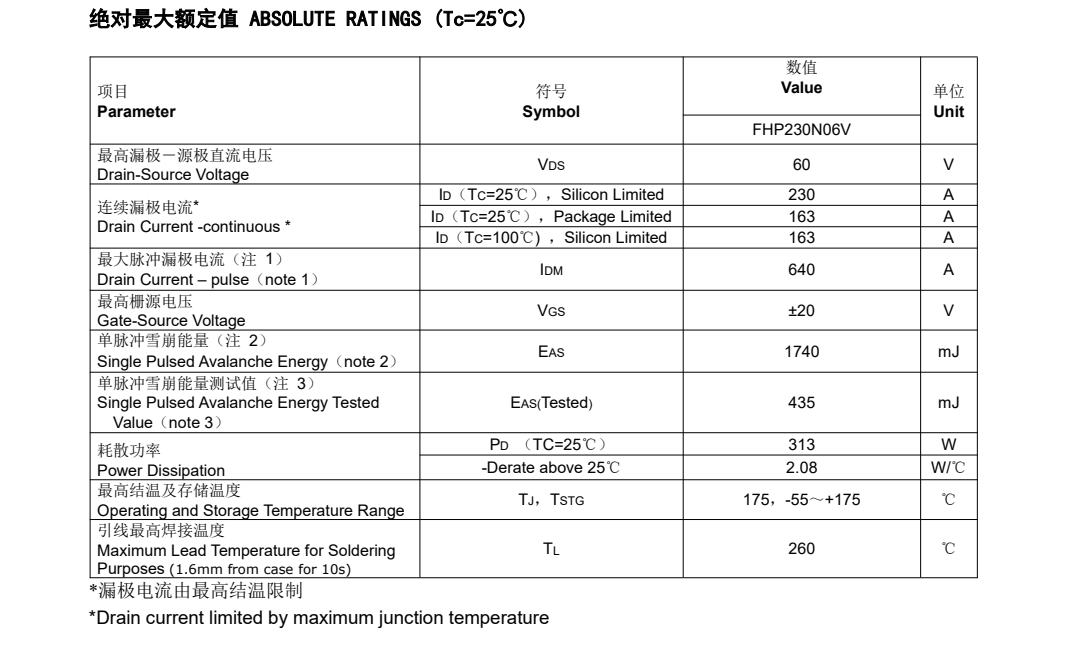

The specific parameters of this FHP230N06V field-effect transistor product are: Vgs (±V): 20; VTH (V): 3; ID (A): 230; BVdss (V): 60. RDS(on) = 2.5mΩ(typ)@VGS=10V, RDS(on) = 3.0mΩ(max)@VGS=10V.

The above parameters are what enable the FHP230N06V to replace the CS160N06 and solve efficiency conversion issues in motor drive controllers.

In addition, the main packaging form of the FHP230N06V is TO-220 packaging, complying with JEDEC standards, and environmentally friendly, meeting RoHS and REACH standards, and free of halogens.

It adopts advanced trench technology, reducing conduction losses, improving switching performance, and increasing avalanche energy. This transistor can be used in various power switch circuits, achieving system miniaturization and high efficiency.

If you need to introduce a 230A current, 60V voltage MOSFET, it is recommended to prioritize the pure domestic FHP230N06V model to replace the CS160N06 for use in motor drive controllers.

For the substitution of 230A, 60V MOSFETs, selecting the right model for motor drive controllers is crucial. The MOSFETs from Feihong Semiconductor are not only widely used in motor drive controllers but also in terminal applications such as outdoor energy storage power supplies, inverters, and high-frequency switch power supplies.

They provide high-quality products and accompanying services to domestic electronic product manufacturers. In addition to offering free samples, they can also customize MOSFET products according to customer needs. Simply search for "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
