The MOSFET usually plays the role of a power switch in outdoor energy storage power supplies, which is an important part to ensure the efficient and long-term stable operation of the entire product system. Especially in the DC-DC push-pull topology boost circuit of the inverter module, it serves as a high-frequency switch to realize the conversion between DC and AC and improve the system efficiency.

In the market of 2024, models such as IRFB7537PBF, HY3906P, and CS160N06 are commonly used in outdoor energy storage power supplies. Entering 2025 today, Feihong Semiconductor would like to introduce this 230A, 60V MOSFET product, which can replace the above field effect transistors and has high reliability and improved product conversion efficiency.

It's the FHP230N06V MOSFET model. Why do we recommend it?

Because compared with HY3906P and CS160N06, it has a lower on-state resistance, reducing conduction losses and improving the quality factor FOM(RDSON*Qg), making its performance superior.

Compared with IRFB7537PbF, it is a cost-effective domestic alternative MOSFET suitable for inverter engineers to choose.

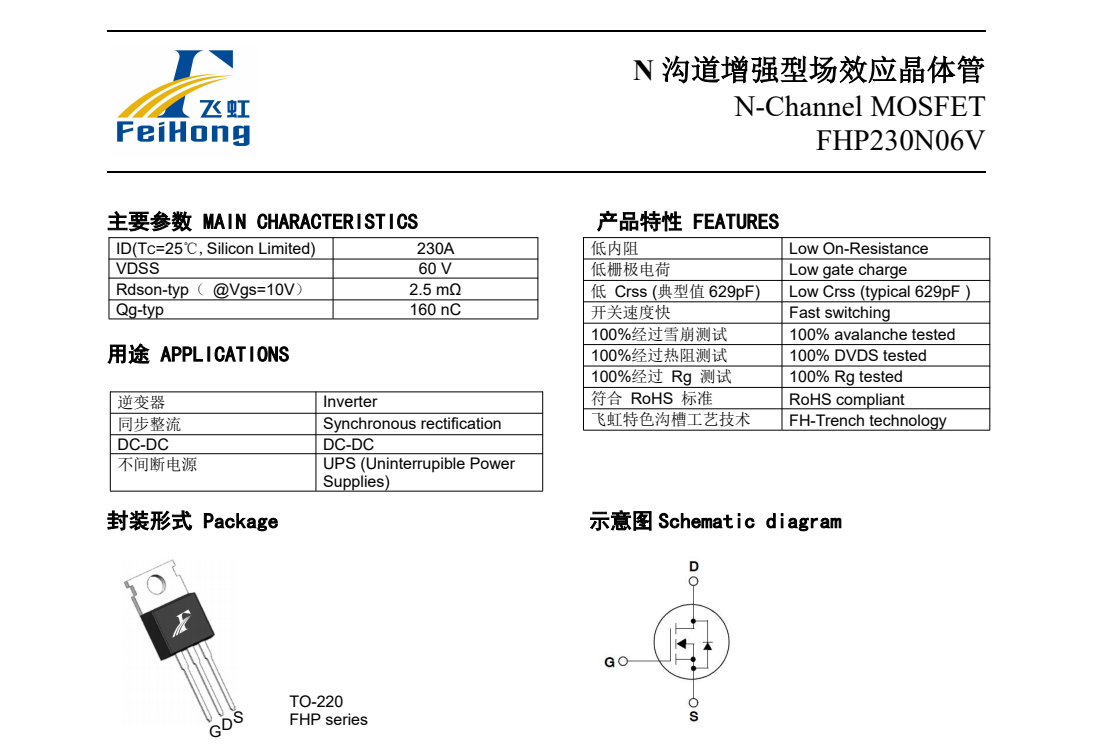

Looking at the specific parameters of the FHP230N06V field-effect transistor: Vgs(±V): 20; VTH(V): 3; ID(A): 230; BVdss(V): 60. RDS(on) = 2.5mΩ(typ)@VGS=10V, RDS(on) = 3.0mΩ(max)@VGS=10V.

The above parameters are suitable for outdoor energy storage power supplies combined with 5 series lithium iron phosphate battery packs, which are used in the DC-DC push-pull topology boost circuit of the inverter module.

More importantly, FHP230N06V uses a unique trench process combined with excellent encapsulation BOM materials, making the product highly reliable and fast-switching.

This transistor can be used in various power switch circuits to achieve system miniaturization and high efficiency. The product is in TO-220 packaging, complying with JEDEC standards, and environmentally friendly, meeting RoHS and REACH standards, and being halogen-free.

With the characteristics of 230A and 60V, it helps electronic engineers solve the problem of MOSFET selection in outdoor energy storage power supplies.

In addition to the suitable parameters, Feihong's engineers also provide quality product testing services. Feihong is dedicated to the research, development, production, and sales of semiconductor devices, integrated circuits, and power semiconductors, providing manufacturers with sustainable and stable supply. With 35 years of experience in the semiconductor industry and 20 years of research and manufacturing experience, we can not only provide free samples but also customize MOSFET products according to customer needs.

You can find us by searching "Feihong Semiconductor" on Baidu, and our free sample hotline is 400-831-6077.
