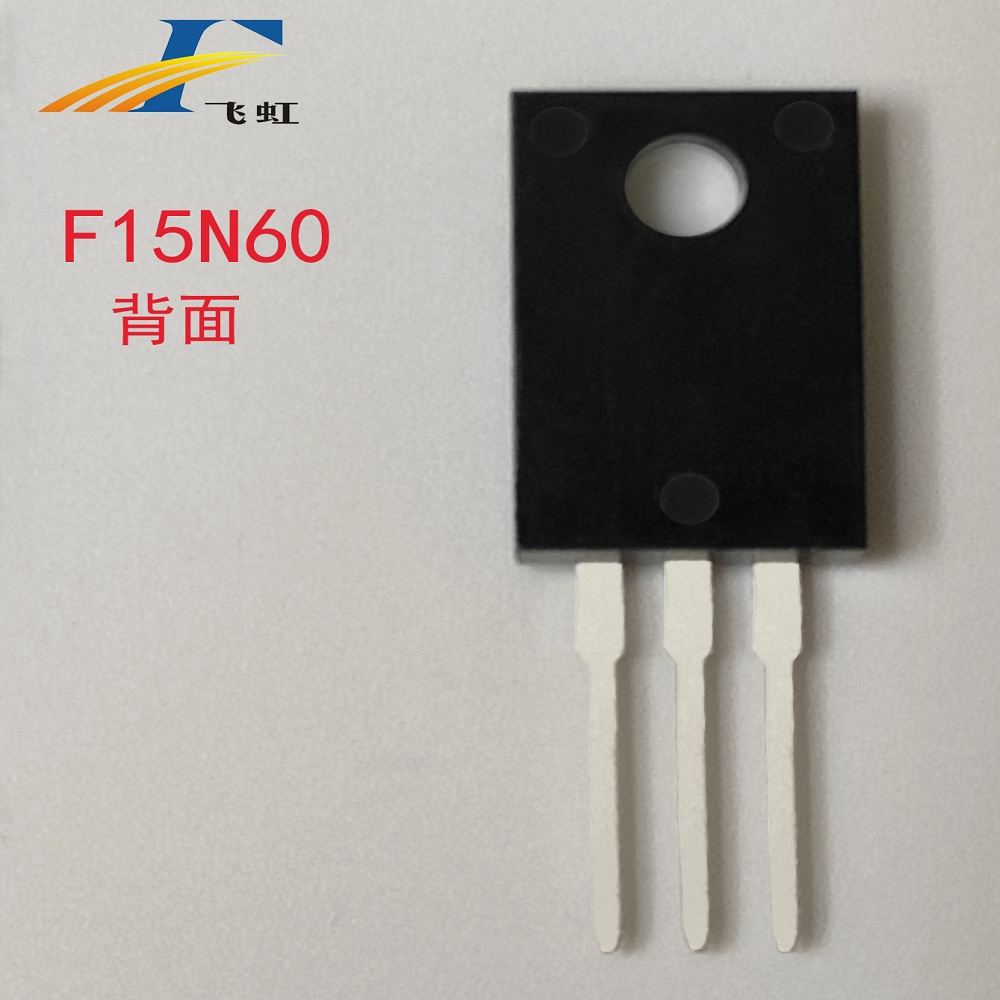

FHP15N60

Release time：2017-05-23 10:43:39

Industry generic name：FQP15N60, TK15A60DWait

View Specifications >

  • 15N60 is an N-channel enhancement type high voltage power MOS field effect transistor. The product is widely used in AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP15N60
TO-220 TO-220F TO-3PN
GDS
30
3-5
16
600
5
，10

Product Details

【Product Introduction】


Feihong Electronics FHP15N60 is an N-channel enhancement-type high-voltage power MOSFET. This product is widely applicable to AC-DC switch power supplies, DC-DC power converters, and high-voltage H-bridge PWM motor drivers.Compared with other MOSFET brands/models:FQP15N60, TK15A60D;


【Product Features】


Feihong 15N60, 16A, 600V, RDS(on) = 0.41Ω(typ) @VGS = 10 V low charge, low reverse transfer capacitance, fast switching speed;




Hot Tags： Domestic FHP230N06VFHP230N06V domestic MOS tubeSubstitute IPP030N10N3GCS160N06 | HY3906P | IRFB7537PBF
