After Trump takes office, the global situation will become further unclear. How to ensure the stability of your product chain? Today, we will conduct a professional analysis on the actual application scenarios and advantages of choosing the domestic MOS tube FHP230N06V for high-frequency inverters.

I. Technical Parameter Comparison: The Core Advantages of FHP230N06V

In the design of high-frequency inverters, the performance of the MOS tube directly affects system efficiency and reliability. As a domestic alternative solution, FHP230N06V has the following technical highlights when replacing imported models such as HY3906P, CS160N06, and IRFB7537PBF:

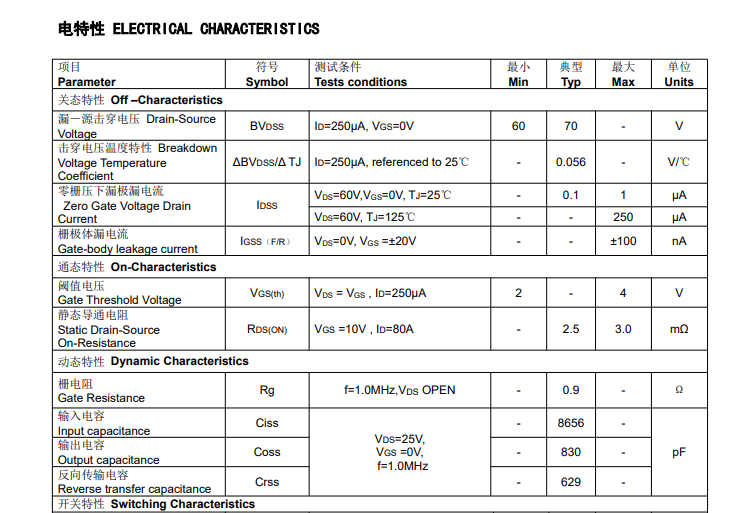

1. Low conduction loss: RDS(on) is as low as 2.5mΩ (typical value), significantly reducing conduction loss and improving current conversion efficiency.

2. High current carrying capacity: The 230A rated current supports high-power applications, suitable for push-pull topology boost circuits with 12V/battery input.

3. FoM optimized design: By reducing the product of RDS(on) and Qg (gate charge), it optimizes high-frequency switching performance.

II. Precise Application Scenarios: From Automotive to Industrial Fields

With its high reliability and fast switching characteristics, FHP230N06V can replace HY3906P, CS160N06, IRFB7537PBF and other field-effect transistors to meet the following application scenarios:

1. High-frequency inverter application: DC/DC push-pull topology boost circuit in 12V battery input automotive high-frequency inverter.

2. Suitable for industrial frequency inverter applications with full bridge topology.

3. Suitable for outdoor energy storage power supplies paired with 5-series lithium iron phosphate battery packs, used in the DC-DC push-pull topology boost circuit of the inverter module.

4. Suitable for 24-36V BLDC motor drive controllers.

Design Suggestions:

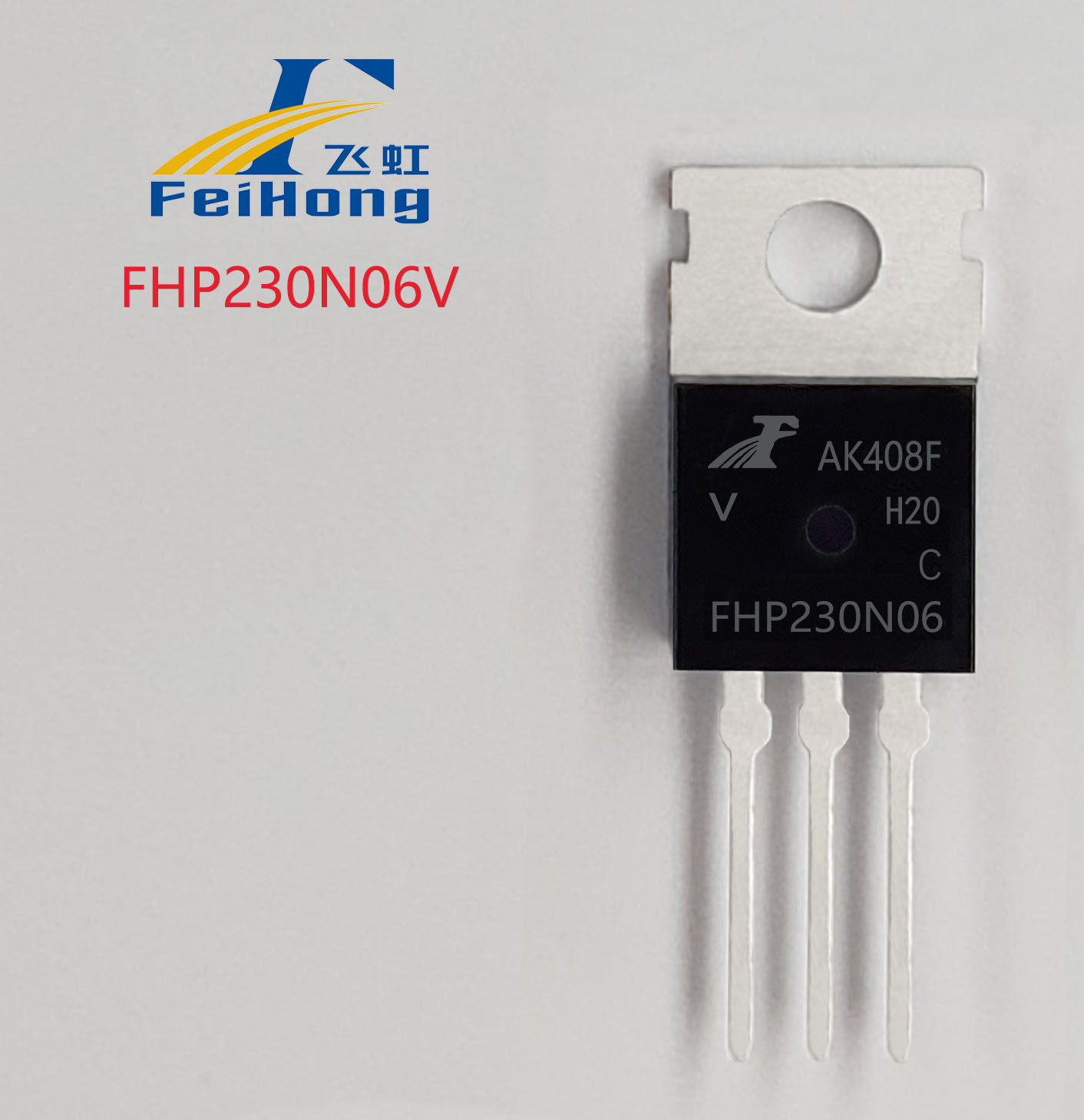

Adopt TO-220 packaging, compatible with standard cooling solutions (air cooling/heat sink), simplifying PCB layout.

Based on trench process and high-quality packaging materials, ensuring long-term operational reliability.

III. The Core Competitiveness of Domestic Replacement

1. Performance benchmarking, cost optimization: Under the same parameters, FHP230N06V is more cost-effective than imported models, helping control BOM costs.

2. High reliability certification: Complies with JEDEC standards, passes RoHS and REACH environmental certifications, meeting halogen-free process requirements.

3. Flexible customization support: Feihong Semiconductor provides technical customization support to meet diverse needs.

Based on the above three cores, it is recommended that manufacturers with replacement needs for models such as HY3906P, CS160N06, and IRFB7537PBF choose this 230A, 60V MOS tube product: FHP230N06V, which can be used to replace high-frequency inverters and has high reliability.

In addition to the suitable parameters, Feihong's engineers also provide high-quality product testing services. Feihong is dedicated to the research, development, production, and sales of semiconductor devices, integrated circuits, and power semiconductors, providing manufacturers with sustainable stable supply. With 35 years of experience in the semiconductor industry and 20 years of R&D and manufacturing experience, we not only offer free samples but also customize MOS tube products according to customer needs.

You can find us by searching "Feihong Semiconductor" on Baidu, and the free sample hotline is 400-831-6077.
