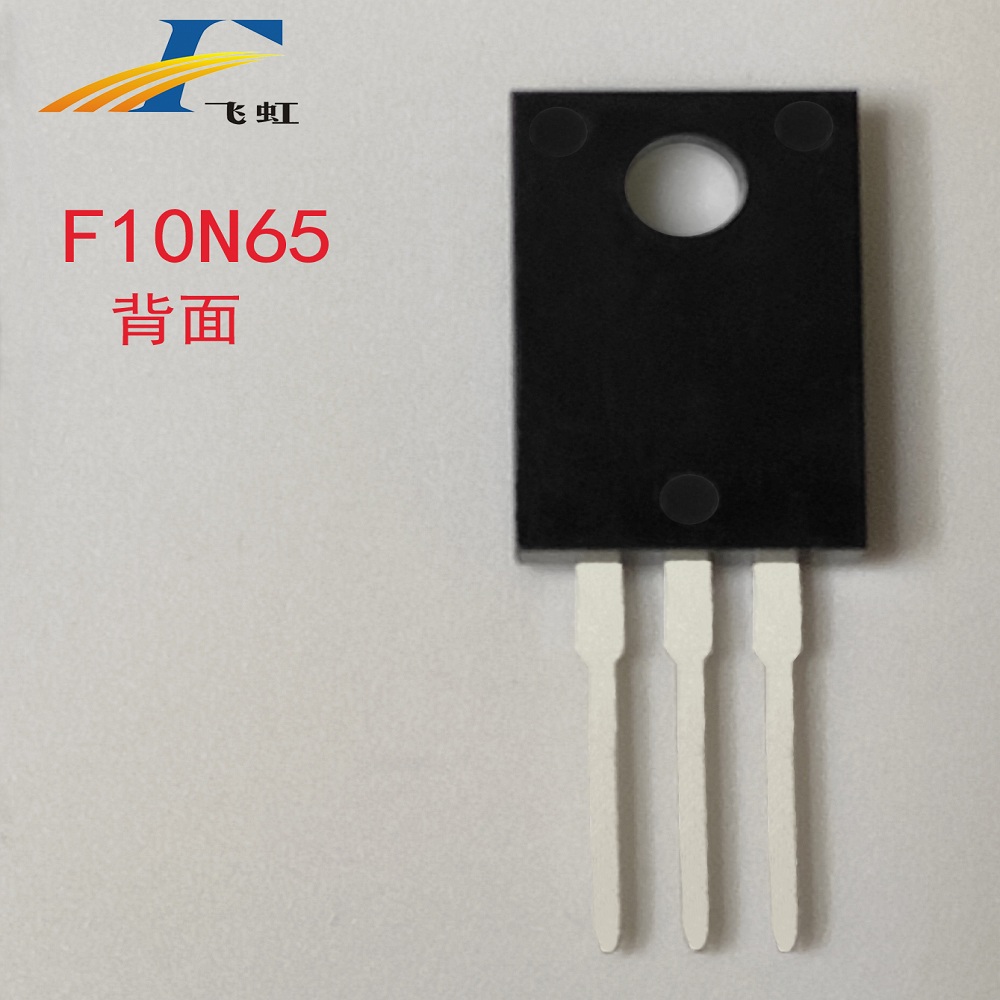

FHP10N65D/FHF10N65D

Release time：2017-05-23 10:32:31

Industry generic name：FQPF10N65CWait

View Specifications >

  • 10N65 is an N-channel enhancement type high voltage power MOS field effect transistor. The product is suitable for all kinds of switching power supply, 100W AC-DC switching power supply, DC-DC power converter, high voltage H bridge PMW motor drive.

Free sample Join List

Obtain free product samples

Your salutation：
Contact Information：
Product sample：

Product Parameters

Part Number Polarity Package Vgs（±V） VTH（V） ID(A) BVdss(V) Rds（on）(Ω)
Model Polarity Encapsulation form Vgs=10v
(typ)		 Vgs=10v
(max)
FHP10N65D/FHF10N65D
N
TO-220 TO-220F
30
2～4
10
650
0.75
0.9

Product Details

【Product Introduction】

Feihong 10N65 is an N-channel enhancement type high voltage power MOSFET. This product is suitable for various switch power supplies, 100W AC-DC switch power supply, DC-DC power converter, and high voltage H-bridge PMW motor driver.Compared with other FET brands:FQPF10N65C;


【Product Features】

FHP10N65/FHF10N65, the products are good in consistency, highly reliable, with high avalanche tolerance and low on-resistance.





【Application Circuit Example】

FHP10N65 pin diagram
