Doing business in exporting electronic products requires studying the local market, and for countries with a main voltage standard of 110V, such as the United States, Japan, South Korea, Canada, etc., are included. Since their voltage standard is 110V, their outdoor energy storage power sources naturally need to be compatible within this range. The selection of MOSFETs should also naturally choose products that can match the 110V voltage.

This article will analyze and provide reasonable suggestions for MOSFETs that can be used in the DC-AC inverter circuit of 110V outdoor energy storage power supplies. Is there a product that can replace the CS82N25 field-effect transistor and is suitable for 110V outdoor energy storage power supplies?

Why replace the CS82N25 field-effect transistor? Because this product was previously used more frequently in 110V outdoor energy storage power supplies. With the deepening development of the product, there is now a MOSFET with 90A current and 250V voltage parameters, which can be better suited for use in 110V outdoor energy storage power supplies.

Importantly, the FHA90N25W product has continuous supply capabilities, making it a domestically produced MOSFET that can replace the CS82N25 field-effect transistor.

Due to its parameters, it determines that it can replace the CS82N25 model parameters, making the 110V outdoor energy storage power supply safer. It is produced by a domestic MOSFET manufacturer that has been focusing on research and development for 20 years. As a source factory of MOSFET products, it is a field-effect transistor that can replace the parameter of the CS82N25 model.

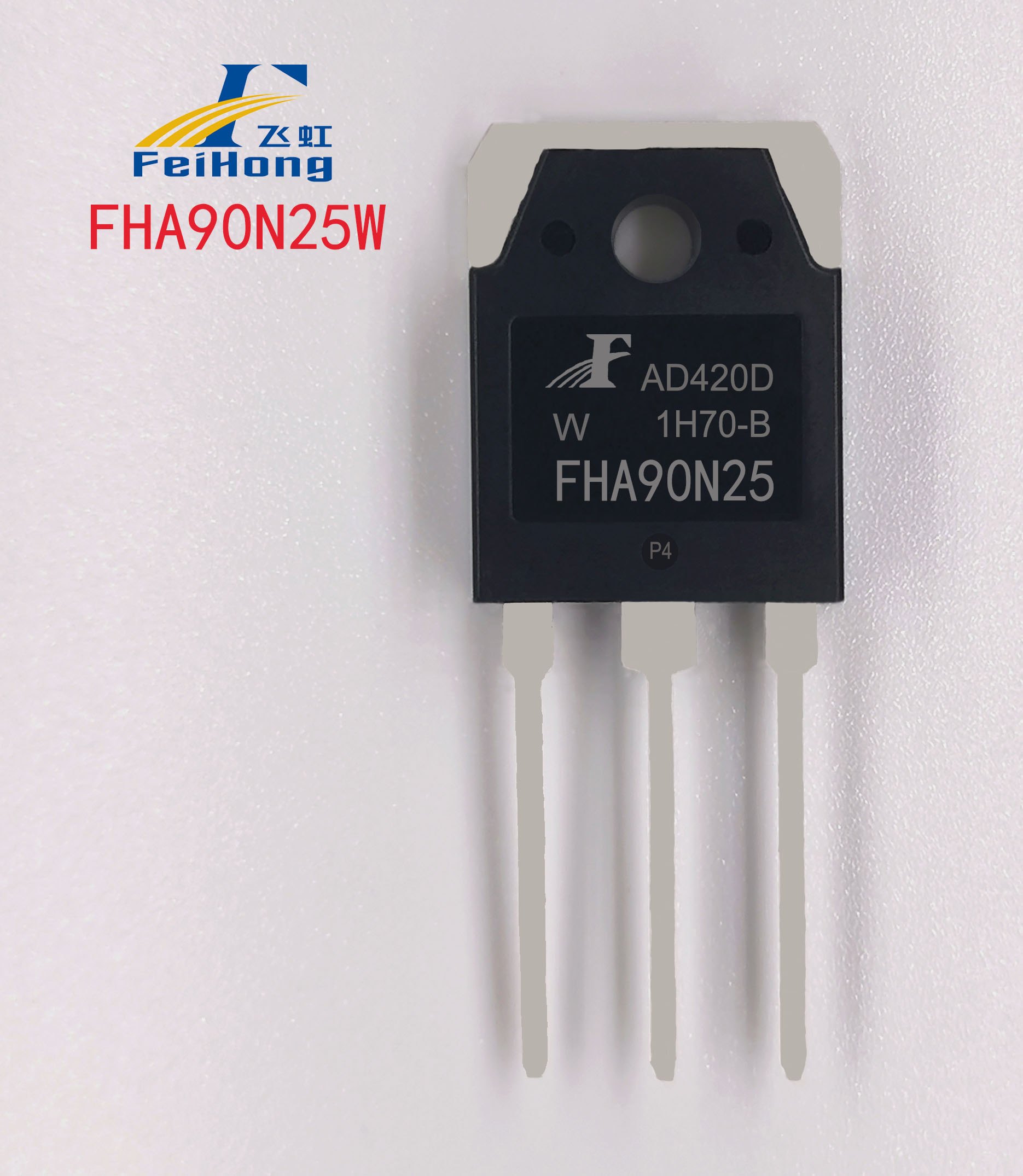

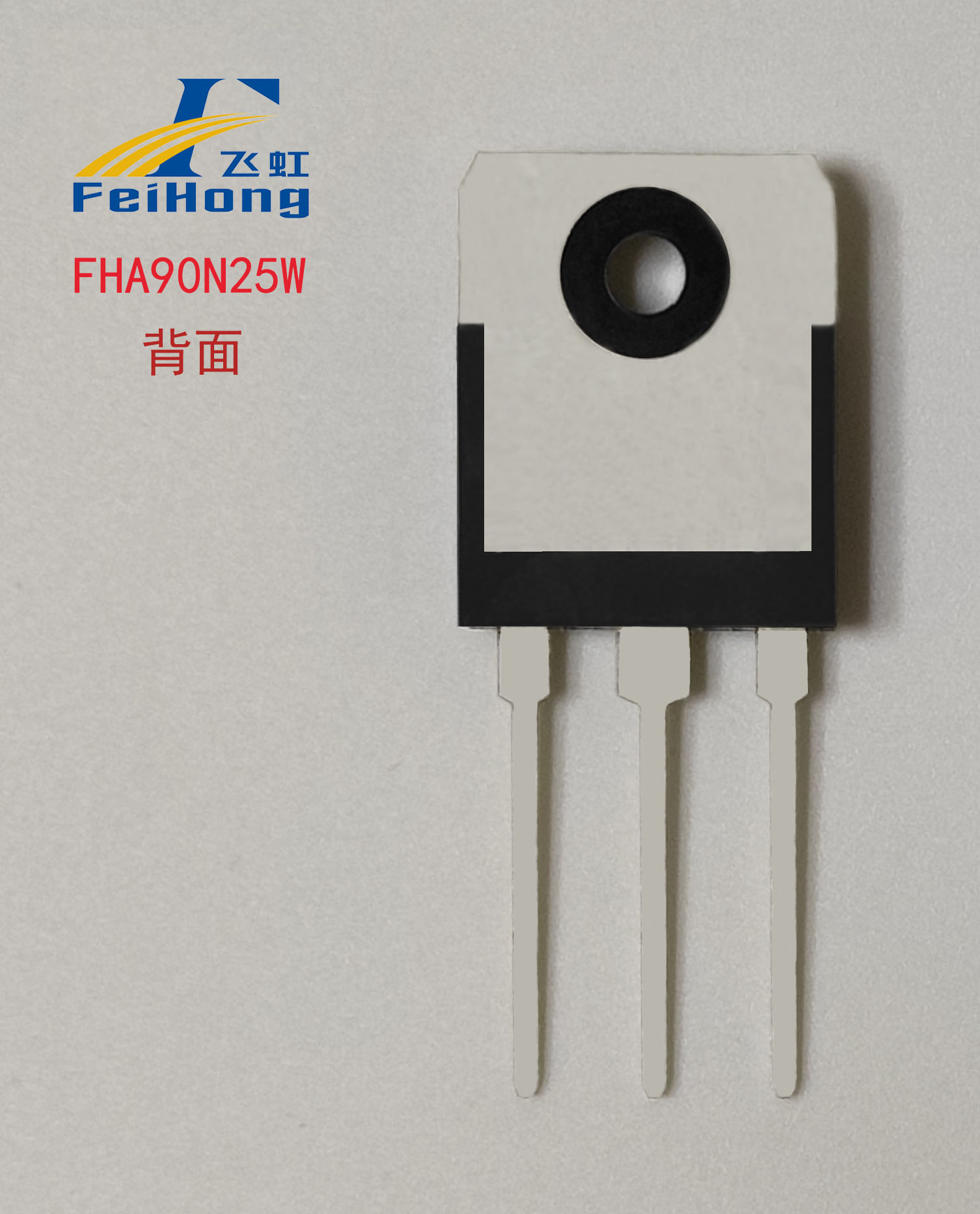

Of course, electronic engineers must thoroughly understand the parameters of the product. Let's take a look at the specific product parameters of the FHA90N25W from Feihong:

It has a current of 90A and a voltage of 250V, RDS(on) = 35mΩ(MAX) @VGS = 10 V, RDS(on) = 26mΩ(TYP) @VGS = 10 V, maximum gate-source voltage @VGS = ±30 V.

The FHA90N25W is an N-channel enhancement-mode VDMOS, and the TO-3PN package shape is more suitable for use in DC-AC inverter circuits.

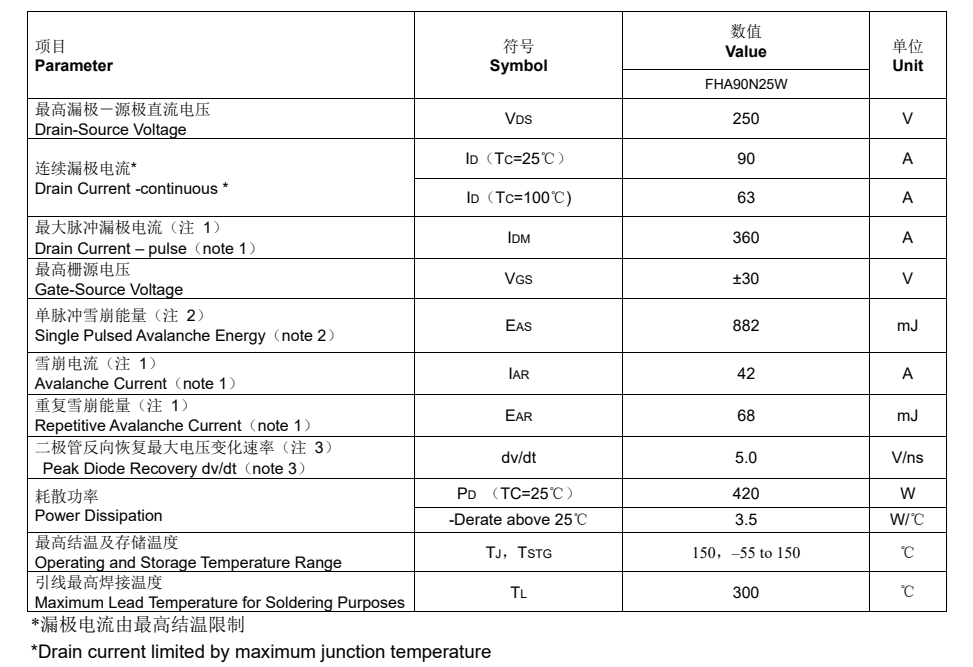

This product also has specific parameter values: Vgs(±V): 30; VGS(th): 2.0-4.0V; ID(A): 90A; BVdss(V): 250V.

Maximum pulse drain current (IDM): 360(A), reverse transfer capacitance: 57pF.

When exporting, it is essential to ensure the quality and stability of the product, making the selection of good MOSFETs an important topic. The Feihong native model: FHA90N25W model parameters can replace the CS82N25 model, thanks to its industrial-grade product features, allowing it to be widely used in 110V outdoor energy storage power supplies, inverters, UPS, photovoltaic inverters, DC-AC inverters, vehicle-specific inverters, outdoor energy storage power supplies, MPPT controllers, etc.

The replacement of 250V, 90A MOSFETs allows enterprises to ensure smooth overseas operations by selecting the right model parameters. Feihong has obtained 15 utility patents and inventions and has collaborated with Sun Yat-sen University and the Chinese Academy of Sciences to develop GaN devices. Feihong products have been widely applied in 110V outdoor energy storage power supplies, inverters, UPS, photovoltaic inverters, DC-AC inverters, helping partners solve domestic high-quality products that meet national conditions and international quality standards. In addition to providing free samples, we can also customize MOSFET products according to customer needs. Simply search for "Feihong Semiconductor" on Baidu to find us, and our free sample hotline is 400-831-6077.
