According to data statistics, the total scale of the U.S. outdoor recreation industry has reached $862 billion. Data shows that North American countries such as the United States are still the core group for outdoor equipment, and domestic enterprises relying on vehicle-mounted inverters going overseas are also paying attention to the growth in these demands. After all, the larger the market, the more opportunities there are.

Of course, opportunities are reserved for well-prepared companies. For vehicle-mounted inverter manufacturers, considering how to reasonably reduce costs and improve product quality is a very important topic. From multiple dimensions, MOSFETs are also one of the key components. Are there any products domestically that can meet the above needs and replace the CS82N25 field-effect transistor model?

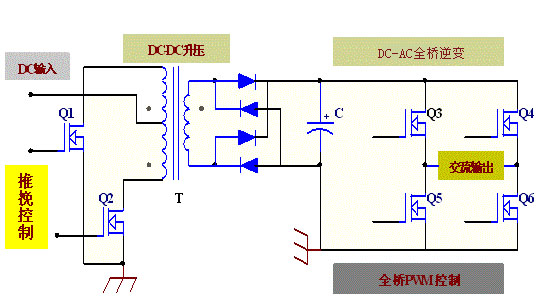

For manufacturers of American standard vehicle-mounted dedicated inverters, they would previously use foreign CS82N25 high-voltage MOSFET models in DC-AC inverters.

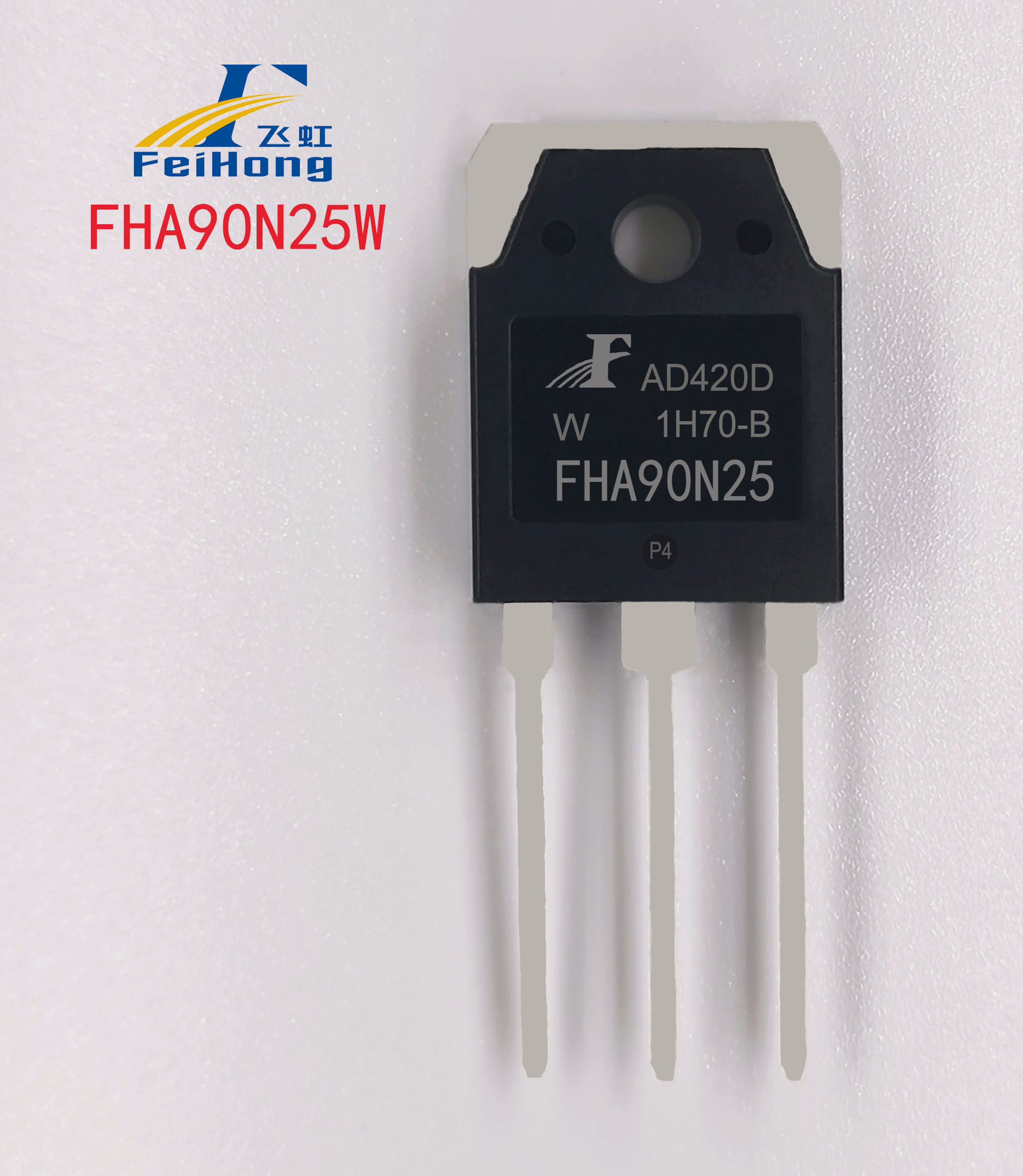

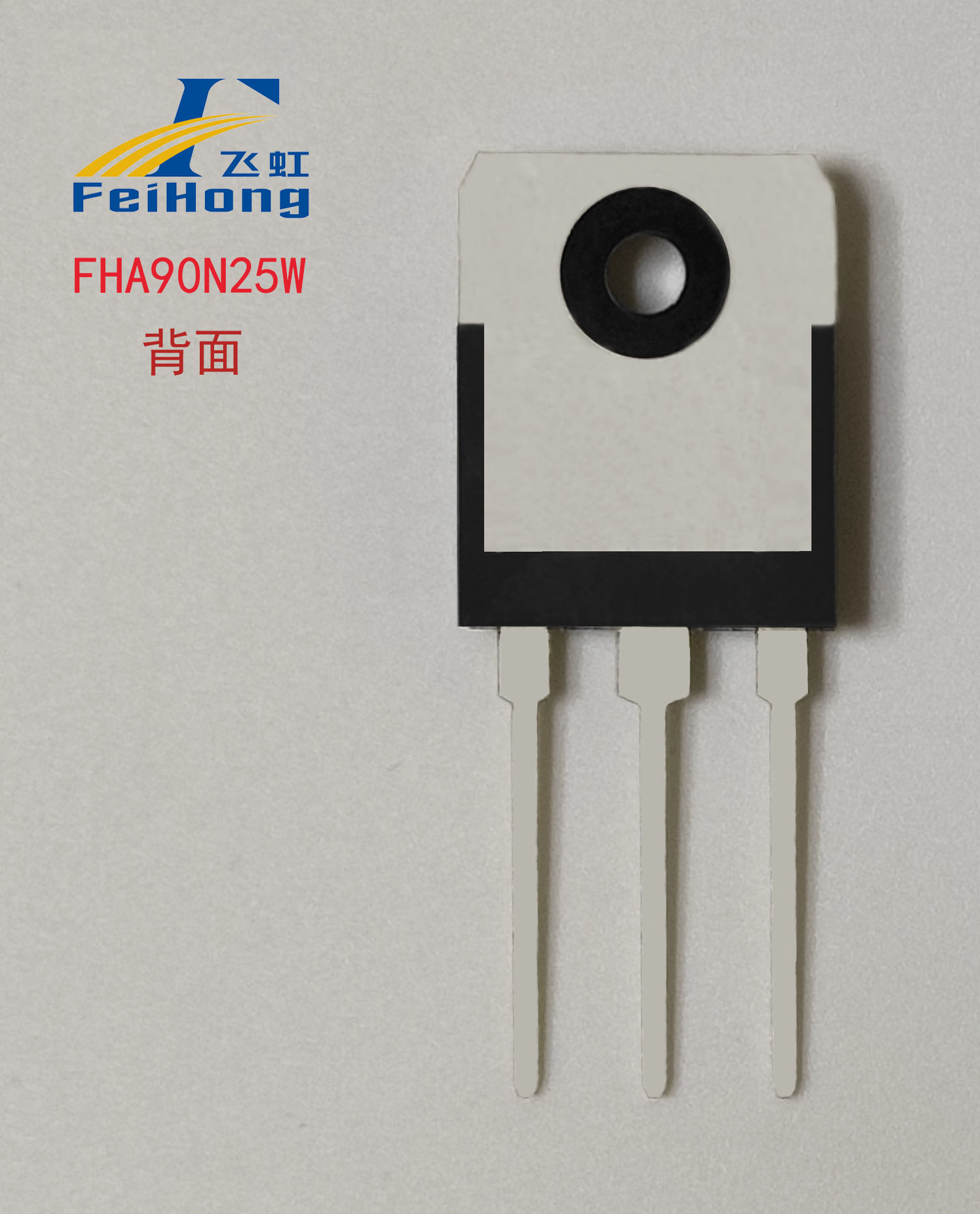

In fact, in recent years, an increasing number of outbound enterprises have been selecting the FHA90N25W field-effect transistor model. After all, establishing a stable and cost-effective semiconductor supply chain is one of the core competitiveness of domestic electronic manufacturers.

Why does the FHA90N25W field-effect transistor model receive recognition in American standard vehicle-mounted dedicated inverters? Besides its parameters of 90A and 250V, it also has excellent product features:

1. Low on-resistance

2. High dv/dt tolerance capability

3. Strong impact resistance, passes 100% EAS test

4. Good heat dissipation performance, passes 100% DVDS thermal resistance test

5. 100% Rg test

6. High testing standards, 100% parameter tests for each item + VTH classification, good consistency of parameters

7. Meets industrial reliability requirements, high reliability

Of course, apart from the excellent features of the product, the FHA90N25W can replace the CS82N25 high-voltage MOSFET model due to its superior parameters:

1. N-channel enhancement-type VDMOS

2. TO-3PN package shape is more suitable for DC-AC inverter circuits

3. Vgs (±V): 30; VGS (th): 2.0-4.0V;

4. ID (A): 90A; BVdss (V): 250V

5. Maximum pulse leakage current (IDM): 360A

6. Reverse transfer capacitance: 57pF

7. Static on-resistance RDS(on) = 35mΩ(MAX) @VGS = 10V, RDS(on) = 26mΩ(TYP) @VGS = 10V

Of course, the above only lists some of the product parameters, more detailed parameters of the FHA90N25W can be found in the product specification sheet. The FHA90N25W MOSFET is produced by a domestic MOSFET manufacturer with 20 years of research and development experience. Its excellent manufacturing process and parameter performance make it better suited for American standard vehicle-mounted dedicated inverters, ensuring product reliability.

Due to its characteristics as an industrial-grade MOSFET, it is widely used in applications such as American standard vehicle-mounted dedicated inverters, inverters, UPS, photovoltaic inverters, DC-AC inverters, vehicle-mounted dedicated inverters, outdoor energy storage power supplies, MPPT controllers, etc.; MOSFET brand replacement model: CS82N25.

The replacement of 250V, 90A MOSFETs is important to choose the right model. Feihong Semiconductor's MOSFETs are already widely used in power supply circuits, smart home appliances, new energy electronics fields: such as automotive electronics, electric vehicles, smart audio equipment, household appliances, LED lighting, chargers, computer power supplies, and other industries, providing high-quality products and supporting services for domestic electronic product manufacturers. In addition to offering free samples, we can also customize MOSFET products according to customer needs. Simply search "Feihong Semiconductor" on Baidu to find us. Free sample hotline: 400-831-6077.
